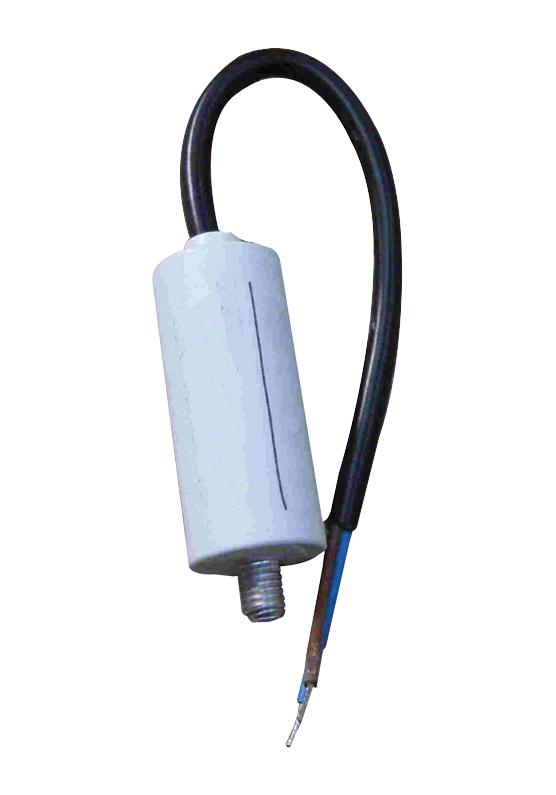

KEMET C274ACF5350LF0J Film Capacitor
This high-quality film capacitor offers 35 uF capacitance with a 5% tolerance, rated for 470 VAC operation. Designed with polypropylene film/foil dielectric and a can style, it features an ultra-sonically welded seal and UL 94 V-0 safety disc for reliability. Suitable for motor run applications, it operates within a temperature range of -25°C to +85°C and has a rated temperature of 85°C. The capacitor terminates with tin copper bi-polar cables, ensuring durable and safe connections, perfect for demanding industrial motor control systems.
KEMET C274ACF5350LF0J Film Capacitor Specifications:
- Capacitance: 35 uF
- Capacitance Tolerance: 5%
- Voltage AC: 470 VAC
- Temperature Range: -25°C to +85°C
- Rated Temperature: 85°C
- Max dVidt: 20 V (Vus)
- Dimensions: Diameter 50mm ±1mm, Length 120mm ±2mm
- Mounting: Bolt M8x43
- Termination: Tin copper bi-polar cables
- Safety: UL 94 V-0 disk, UL, VDE compliant
- Sealing: Ultra-sonically welded seal
- RoHS: Yes
- Weight: 190.6 g
Buy the KEMET C274ACF5350LF0J – Reliable Film Capacitor for Industrial Applications
Enhance your industrial or motor control projects with the reliable KEMET C274ACF5350LF0J film capacitor. Offering 35 microfarad capacity at 470 volts AC, it features a polypropylene dielectric with an ultra-sonically welded seal for long-lasting durability. Designed for safety and efficiency, it operates within -25°C to +85°C temperature range, equipped with tin copper bi-polar cables for secure connections. Perfect for demanding applications requiring high voltage endurance, this capacitor ensures stability, safety, and consistent performance in your industrial equipment.
Order your KEMET C274ACF5350LF0J high-performance film capacitor today and ensure dependable operation in your motor control or industrial systems.
Frequently Asked Questions
Where can I buy KEMET C274ACF5350LF0J?
You can click on the BUY or RFQ button to purchase C274ACF5350LF0J from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part C274ACF5350LF0J?
You can download the C274ACF5350LF0J datasheet or visit the KEMET website for support.
Who is the manufacturer of C274ACF5350LF0J?
KEMET
