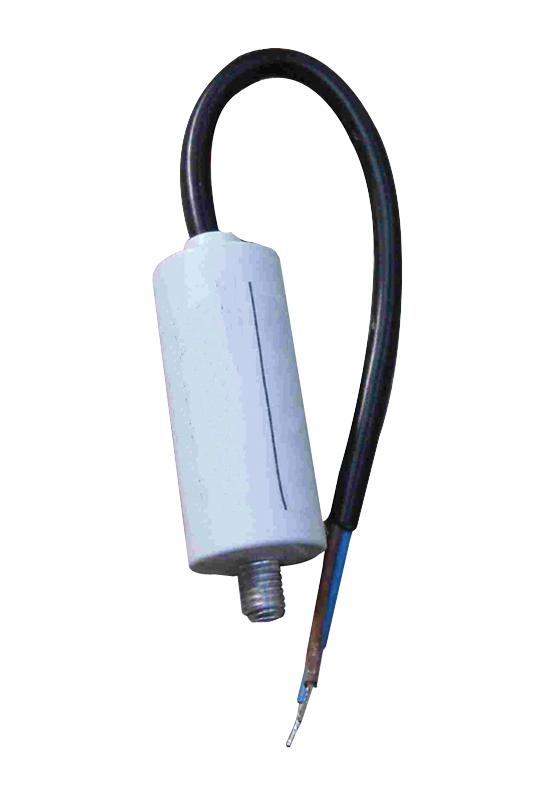

KEMET C274ACF5400LF0J Film Capacitor
The KEMET C27 Series film capacitor offers a reliable solution for motor run applications with a capacitance of 40 uF and a tolerance of 5%. Designed with polypropylene film/foil dielectric, it features an UL94 V-0 Safety Class disk and is RoHS compliant. The capacitor is mounted with a M8 bolt, measures approximately 50mm in diameter and 120mm in length, and has a maximum voltage of 470 VAC. Suitable for industrial environments, it provides high thermal stability within a temperature range of -25°C to +85°C. Its bi-polar cable termination ensures ease of installation and durability in demanding conditions.
KEMET C274ACF5400LF0J Film Capacitor Specifications:
- Capacitance: 40 uF
- Capacitance Tolerance: 5%
- Voltage AC: 470 VAC
- Temperature Range: -25°C to +85°C
- Rated Temperature: 85°C
- Max DVI: 20 Vius
- Dimensions: Diameter 50mm ±1mm, Length 120mm ±2mm
- Mounting: Bolt M8x43
- Material: Film/Foil Polypropylene
- Sealing: Ultra sonically welded
- Safety Class: PO, UL-94 V-0 disk
- Termination: Tin copper
- Weight: 239.1 g
- RoHS: Yes
Buy the KEMET C274ACF5400LF0J – Reliable Polypropylene Film Capacitor for Industrial Applications
Purchase the KEMET C27 Series film capacitor online today—engineered for industrial motor run applications with 40 uF capacitance and 470 VAC voltage rating. Featuring a polypropylene film/foil dielectric, UL safety certification, and RoHS compliance, this capacitor ensures high reliability and thermal stability within a temperature range of -25°C to +85°C. Its M8 bolt mounting and bi-polar cable terminations make installation straightforward and durable, suitable for demanding industrial environments requiring long-lasting performance and safety assurance.
Get KEMET C274ACF5400LF0J today—built for precision, durability in motor run applications, and high thermal stability.
