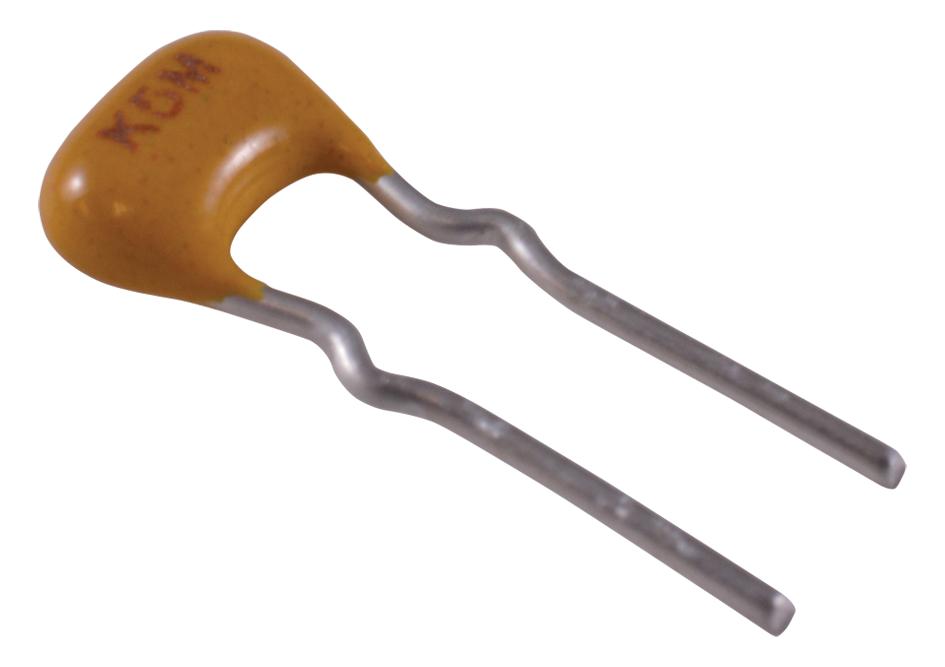

KEMET C315C105K3R5TA Ceramic Capacitor
The KEMET GoldMax 300 Comm X7R C315C105K3R5TA is a high-quality ceramic capacitor designed for commercial applications. Its X7R dielectric provides excellent stability over temperature, making it ideal for decoupling, filtering, and timing circuits. The capacitor's radial lead configuration allows for easy mounting on printed circuit boards. With a capacitance of 1uF and a voltage rating of 25VDC, it offers a reliable solution for a wide range of electronic devices. It is RoHS compliant and packaged in bulk quantities of 500.
KEMET C315C105K3R5TA Ceramic Capacitor Specifications:
- Series: GoldMax 300 Comm X7R
- Style: Radial
- Description: GoldMax, Commercial Standard
- RoHS: Yes
- Termination: Tin
- AEC-Q200: No
- Halogen Free: Yes
- Capacitance: 1 uF
- Measurement Condition: 1 kHz 1.0Vrms
- Capacitance Tolerance: 10%
- Voltage DC: 25 VDC
- Dielectric Withstanding Voltage: 62.5 VDC
- Temperature Range: -55/+125°C
- Temperature Coefficient: X7R
- Capacitance Change with Reference to +25°C and 0 VDC Applied(TCC): 0.15, 1kHz 1.0Vrms
- Dissipation Factor: 3.5% 1 kHz 1.0Vrms
- Aging Rate: 3% Loss/Decade Hour
- Insulation Resistance: 500 MOhms
- L: 3.81mm MAX
- H: 3.14mm MAX
- T: 2.54mm MAX
- S: 2.54mm +/-0.78mm
- LL: 7mm MIN
- F: 0.51mm +0.1/-0.025mm
- Packaging: Bulk, Bag
- Packaging Quantity: 500
