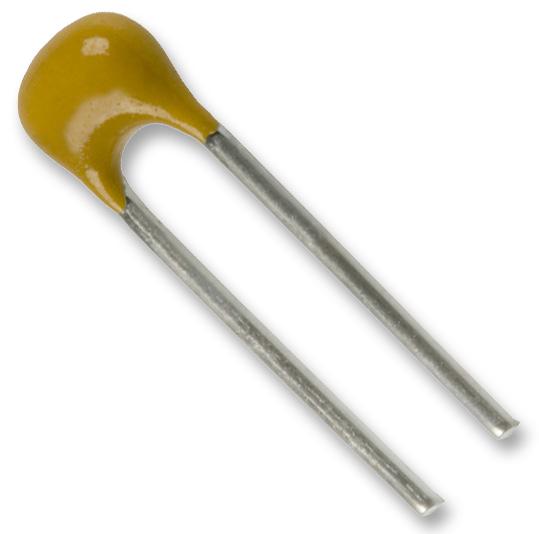

KEMET C315C153J1H5TA91707301 Automotive Ceramic Capacitor
The KEMET C315C153J1H5TA91707301 is a GoldMax 300 Auto X8R HT150C multilayer ceramic capacitor designed for automotive applications. This radial-style capacitor offers a capacitance of 0.015uF with a 5% tolerance and operates at a voltage of 100VDC. It is AEC-Q200 qualified, ensuring high reliability and performance in demanding automotive environments. The capacitor's X8R dielectric provides stability over temperature, making it suitable for a wide range of automotive circuits including power supplies, filtering, and decoupling.
KEMET C315C153J1H5TA91707301 Automotive Ceramic Capacitor Specifications:
- Series: GoldMax 300 Auto X8R HT150C
- Style: Radial
- Description: GoldMax, Automotive Grade
- Features: Automotive Grade
- RoHS: Yes
- Termination: Tin
- Qualifications: AEC-Q200
- AEC-Q200: Yes
- Halogen Free: Yes
- Capacitance: 0.015 uF
- Measurement Condition: 1 MHz 1.0Vrms
- Capacitance Tolerance: 5%
- Voltage DC: 100 VDC
- Dielectric Withstanding Voltage: 250 VDC
- Temperature Range: -55/+150°C
- Temperature Coefficient: X8R
- Capacitance Change with Reference to +25°C and 0 VDC Applied: +15%/-40%, 1kHz 1.0Vrms
- Dissipation Factor: 2.5% 1 MHz 1.0Vrms
- Aging Rate: 3% Loss/Decade Hour
- Insulation Resistance: 66.67 GOhms
- L: 3.81mm MAX
- H: 3.14mm MAX
- T: 2.54mm MAX
- S: 2.54mm +/-0.78mm
- H0: 16mm +/-0.5mm
- F: 0.51mm +0.1/-0.025mm
- Packaging: T&R
- Packaging Quantity: 2500
Buy the C315C153J1H5TA91707301 KEMET Automotive Ceramic Capacitor | myMectronic
Purchase the KEMET C315C153J1H5TA91707301 securely and reliably for your automotive electronics projects.
Buy Now
Frequently Asked Questions
Where can I buy KEMET C315C153J1H5TA91707301?
You can click on the BUY or RFQ button to purchase C315C153J1H5TA91707301 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part C315C153J1H5TA91707301?
You can download the C315C153J1H5TA91707301 datasheet or visit the KEMET website for support.
Who is the manufacturer of C315C153J1H5TA91707301?
KEMET
