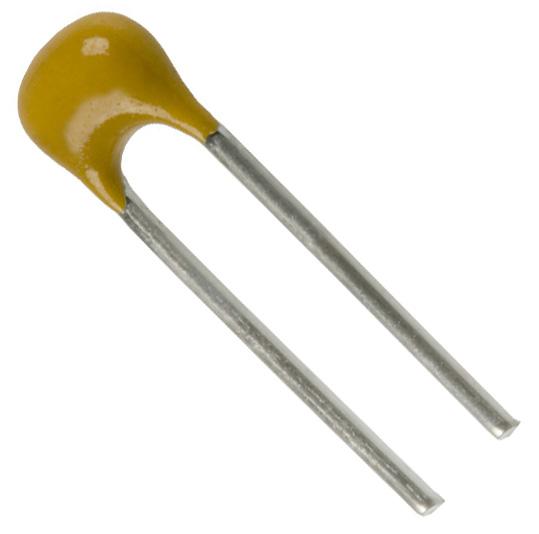

KEMET C315C270K2G5TA Ceramic Capacitor
The KEMET GoldMax 300 Comm C0G capacitor is a multilayer ceramic capacitor designed for commercial standard applications. It offers excellent stability and low losses, making it suitable for a wide range of electronic circuits, including filters, oscillators, and timing circuits. The capacitor's C0G dielectric provides high capacitance stability over temperature and voltage, ensuring reliable performance in demanding environments. It is RoHS compliant and halogen free, meeting environmental standards. This radial leaded component is packaged in bulk quantities for ease of assembly.
KEMET C315C270K2G5TA Ceramic Capacitor Specifications:
- Series: GoldMax 300 Comm C0G
- Style: Radial
- Description: GoldMax, Commercial Standard
- Capacitance: 27 pF
- Measurement Condition: 1 MHz 1.0Vrms
- Capacitance Tolerance: 10%
- Voltage DC: 200 VDC
- Dielectric Withstanding Voltage: 500 VDC
- Temperature Range: -55/+125°C
- Temperature Coefficient: C0G
- Capacitance Change with Reference to +25°C and 0 VDC Applied(TCC): 30PPM/C, 1MHz 1.0Vrms
- Dissipation Factor: 0.1% 1 MHz 1.0Vrms
- Aging Rate: 0% Loss/Decade Hour
- Insulation Resistance: 100 GOhms
- L: 3.81mm MAX
- H: 3.14mm MAX
- T: 2.54mm MAX
- S: 2.54mm +/-0.78mm
- LL: 7mm MIN
- F: 0.51mm +0.1/-0.025mm
- Packaging: Bulk, Bag
- Packaging Quantity: 500
Buy the C315C270K2G5TA KEMET Ceramic Capacitor | myMectronic
Purchase the KEMET C315C270K2G5TA capacitor securely and efficiently for your project needs.
Buy Now
Frequently Asked Questions
Where can I buy KEMET C315C270K2G5TA?
You can click on the BUY or RFQ button to purchase C315C270K2G5TA from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part C315C270K2G5TA?
You can download the C315C270K2G5TA datasheet or visit the KEMET website for support.
Who is the manufacturer of C315C270K2G5TA?
KEMET
