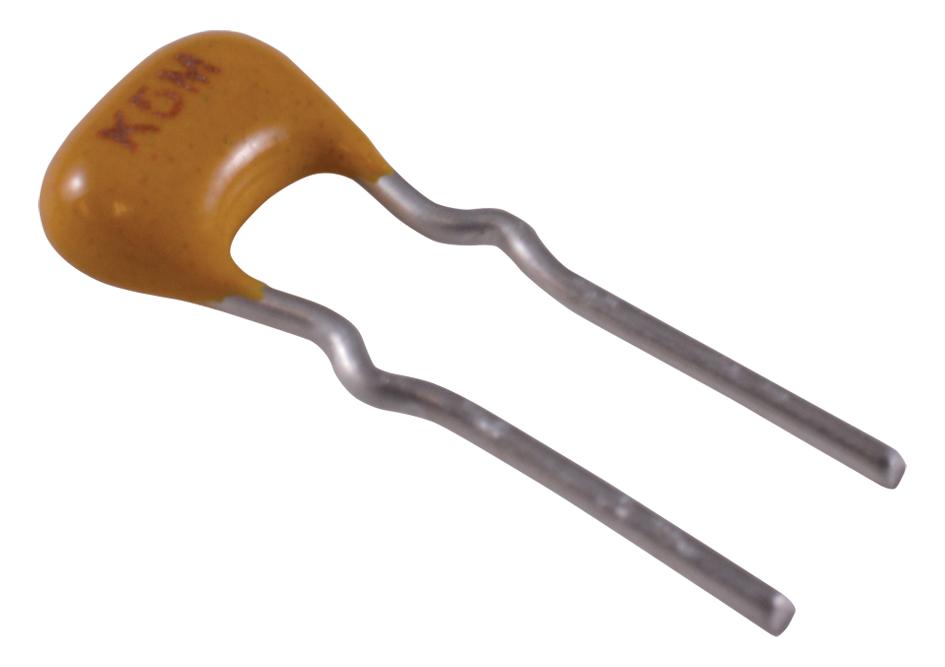

KEMET C315C301J1G5TA 300 pF Ceramic Capacitor
The KEMET GoldMax 300 Comm C0G capacitor is a multilayer ceramic capacitor designed for a wide range of commercial applications. Its C0G dielectric provides excellent stability over temperature, making it suitable for critical timing and filtering circuits. The capacitor's robust construction and high voltage rating ensure reliable performance in demanding environments. It is RoHS compliant and packaged in bulk for ease of integration into manufacturing processes. Typical applications include decoupling, filtering, and timing circuits in consumer electronics, industrial equipment, and automotive systems.
KEMET C315C301J1G5TA 300 pF Ceramic Capacitor Specifications:
- Series: GoldMax 300 Comm C0G
- Style: Radial
- Description: GoldMax, Commercial Standard
- Capacitance: 300 pF
- Measurement Condition: 1 MHz 1.0Vrms
- Capacitance Tolerance: 5%
- Voltage DC: 100 VDC
- Dielectric Withstanding Voltage: 250 VDC
- Temperature Range: -55/+125°C
- Temperature Coefficient: C0G
- Capacitance Change with Reference to +25°C and 0 VDC Applied(TCC): 30PPM/C, 1MHz 1.0Vrms
- Dissipation Factor: 0.1% 1 MHz 1.0Vrms
- Aging Rate: 0% Loss/Decade Hour
- Insulation Resistance: 100 GOhms
- Termination: Tin
- Halogen Free: Yes
- AEC-Q200: No
- Packaging: Bulk, Bag
- Packaging Quantity: 500
- L: 3.81mm MAX
- H: 3.14mm MAX
- T: 2.54mm MAX
- S: 2.54mm +/-0.78mm
- LL: 7mm MIN
- F: 0.51mm +0.1/-0.025mm
