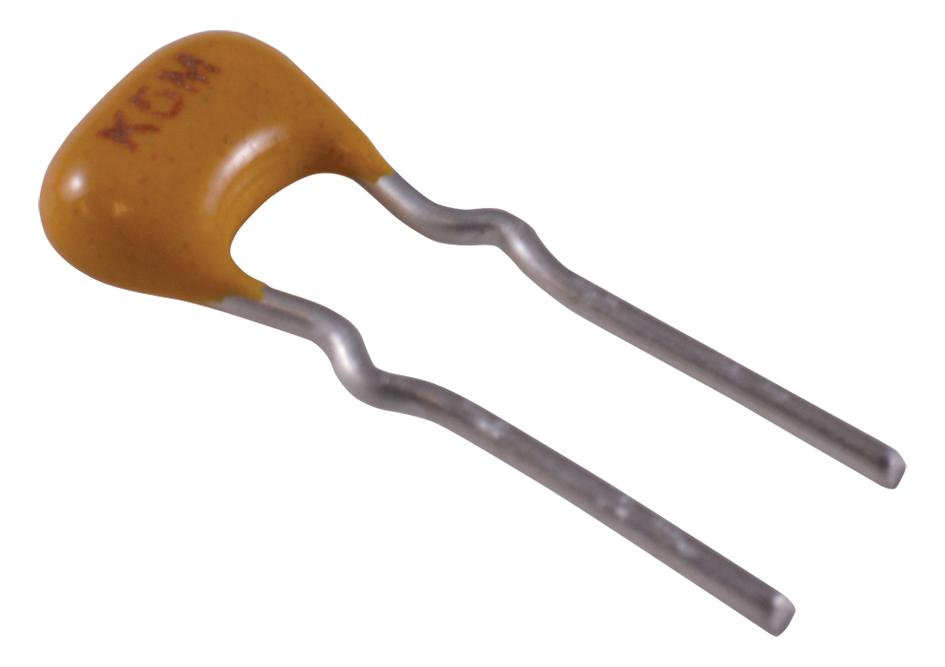

KEMET C315C470J5G5TA Ceramic Capacitor
The KEMET GoldMax 300 Comm C0G capacitor is a high-quality ceramic capacitor designed for a wide range of commercial applications. With a capacitance of 47pF and a voltage rating of 50VDC, this capacitor offers reliable performance and stability. Its C0G dielectric ensures excellent temperature stability and low losses. The radial leaded design makes it suitable for various mounting configurations. This capacitor is RoHS compliant and halogen free, meeting environmental standards. It is ideal for applications requiring high capacitance density and excellent electrical characteristics.
KEMET C315C470J5G5TA Ceramic Capacitor Specifications:
- Series: GoldMax 300 Comm C0G
- Style: Radial
- Description: GoldMax, Commercial Standard
- RoHS: Yes
- Termination: Tin
- AEC-Q200: No
- Halogen Free: Yes
- Capacitance: 47 pF
- Measurement Condition: 1 MHz 1.0Vrms
- Capacitance Tolerance: 5%
- Voltage DC: 50 VDC
- Dielectric Withstanding Voltage: 125 VDC
- Temperature Range: -55/+125°C
- Temperature Coefficient: C0G
- Capacitance Change with Reference to +25°C and 0 VDC Applied(TCC): 30PPM/C, 1MHz 1.0Vrms
- Dissipation Factor: 0.1% 1 MHz 1.0Vrms
- Aging Rate: 0% Loss/Decade Hour
- Insulation Resistance: 100 GOhms
- Dimensions L: 3.81mm MAX
- Dimensions H: 3.14mm MAX
- Dimensions T: 2.54mm MAX
- Dimensions S: 2.54mm +/-0.78mm
- Dimensions LL: 7mm MIN
- Dimensions F: 0.51mm +0.1/-0.025mm
- Packaging: Bulk, Bag
- Packaging Quantity: 500
