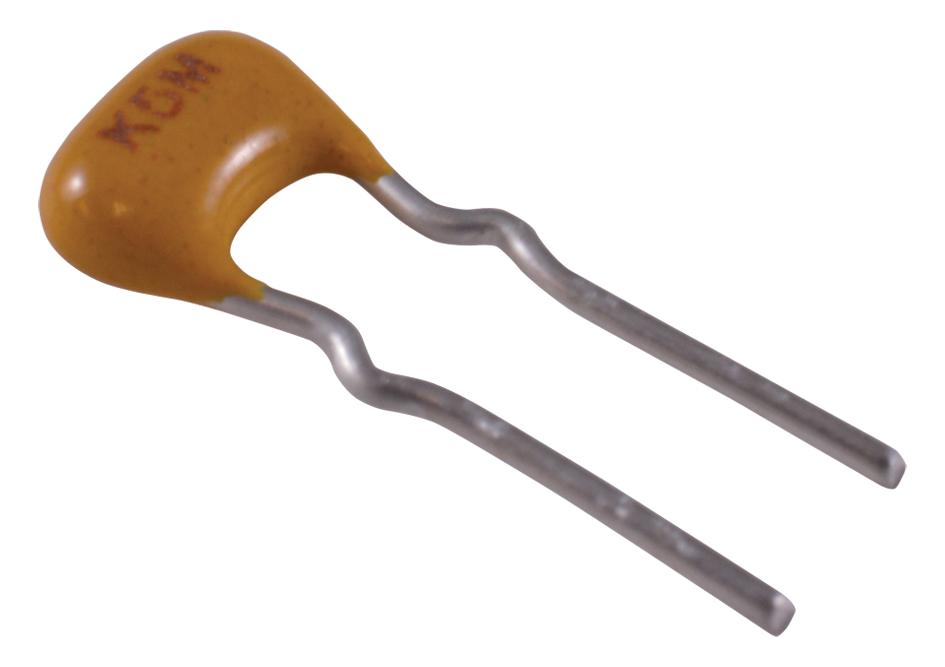

KEMET C315C471K5R5TA Ceramic Capacitor
The KEMET GoldMax 300 Comm X7R C315C471K5R5TA is a multilayer ceramic capacitor designed for a wide range of commercial applications. Its X7R dielectric provides stable capacitance over temperature, while the 470pF value and 50VDC rating make it suitable for various circuit designs. The radial lead configuration allows for easy mounting, and the tin termination ensures reliable connections. This capacitor is RoHS compliant and offers a balance of performance, reliability, and cost-effectiveness.
KEMET C315C471K5R5TA Ceramic Capacitor Specifications:
- Series: GoldMax 300 Comm X7R
- Style: Radial
- Description: GoldMax, Commercial Standard
- RoHS: Yes
- Termination: Tin
- AEC-Q200: No
- Halogen Free: Yes
- Capacitance: 470 pF
- Measurement Condition: 1 kHz 1.0Vrms
- Capacitance Tolerance: 10%
- Voltage DC: 50 VDC
- Dielectric Withstanding Voltage: 125 VDC
- Temperature Range: -55/+125°C
- Temperature Coefficient: X7R
- Capacitance Change with Reference to +25°C and 0 VDC Applied(TCC): 0.15, 1kHz 1.0Vrms
- Dissipation Factor: 2.5% 1 kHz 1.0Vrms
- Aging Rate: 3% Loss/Decade Hour
- Insulation Resistance: 100 GOhms
- L: 3.81mm MAX
- H: 3.14mm MAX
- T: 2.54mm MAX
- S: 2.54mm +/-0.78mm
- LL: 7mm MIN
- F: 0.51mm +0.1/-0.025mm
- Packaging: Bulk, Bag
- Packaging Quantity: 500
