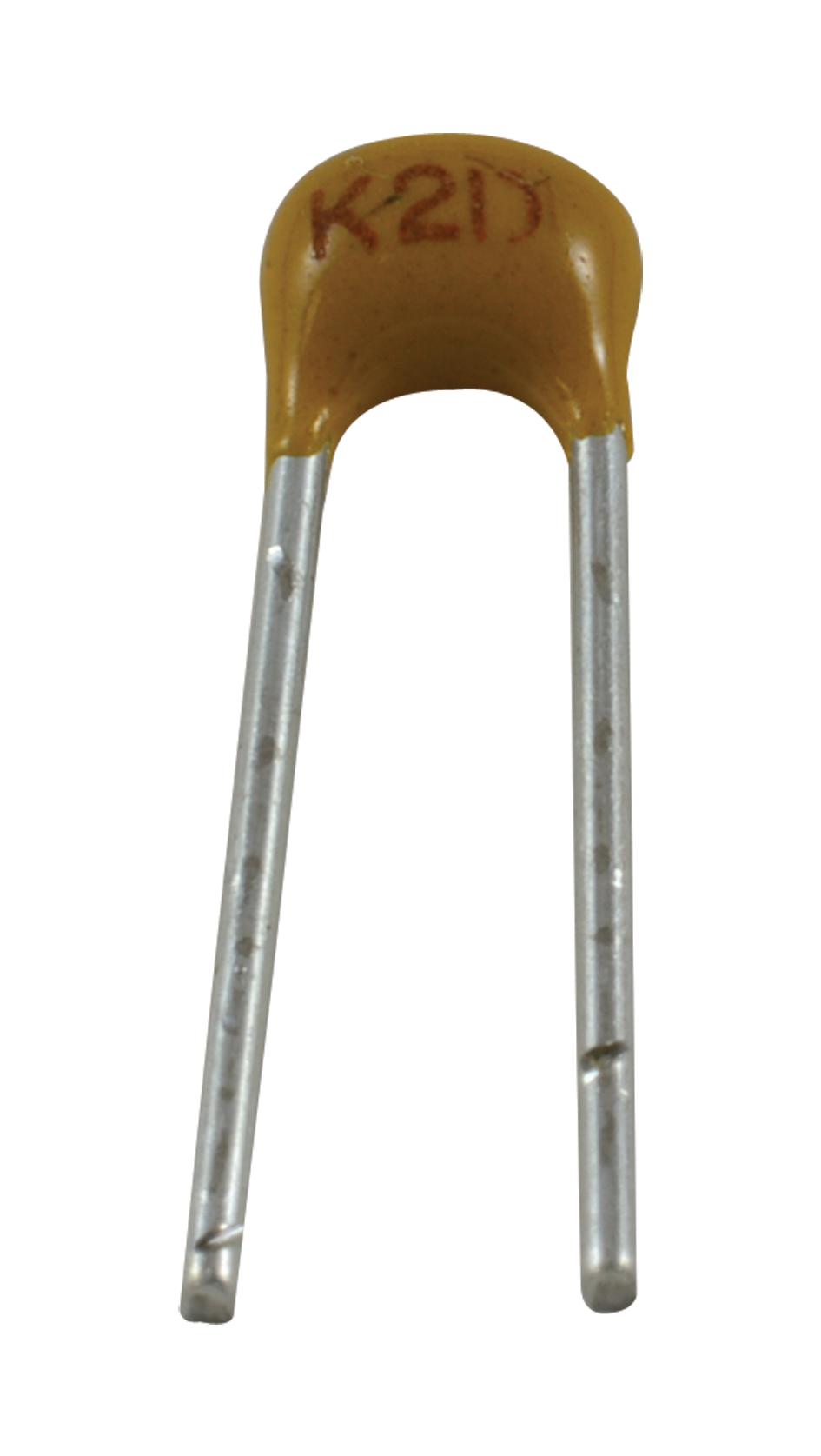

KEMET C315C479D2G5TA Ceramic Capacitor
The KEMET GoldMax 300 Comm C0G series ceramic capacitor, part number C315C479D2G5TA, is a multilayer device designed for commercial standard applications. It offers excellent stability and low losses, making it ideal for decoupling, filtering, and timing circuits. With a capacitance of 4.7pF and a voltage rating of 200VDC, this capacitor is suitable for a variety of electronic devices. Its C0G dielectric provides a low temperature coefficient, ensuring consistent performance over a wide temperature range. The capacitor is RoHS compliant and halogen free, meeting environmental standards. It is packaged in bulk, with 500 units per bag.
KEMET C315C479D2G5TA Ceramic Capacitor Specifications:
- Series: GoldMax 300 Comm C0G
- Style: Radial
- Description: GoldMax, Commercial Standard
- RoHS: Yes
- Termination: Tin
- AEC-Q200: No
- Halogen Free: Yes
- Capacitance: 4.7 pF
- Measurement Condition: 1 MHz 1.0Vrms
- Capacitance Tolerance: +/-0.5 pF
- Voltage DC: 200 VDC
- Dielectric Withstanding Voltage: 500 VDC
- Temperature Range: -55/+125°C
- Temperature Coefficient: C0G
- Capacitance Change with Reference to +25°C and 0 VDC Applied(TCC): 30PPM/C, 1MHz 1.0Vrms
- Dissipation Factor: 0.1% 1 MHz 1.0Vrms
- Aging Rate: 0% Loss/Decade Hour
- Insulation Resistance: 100 GOhms
- L: 3.81mm MAX
- H: 3.14mm MAX
- T: 2.54mm MAX
- S: 2.54mm +/-0.78mm
- LL: 7mm MIN
- F: 0.51mm +0.1/-0.025mm
- Packaging: Bulk, Bag
- Packaging Quantity: 500
