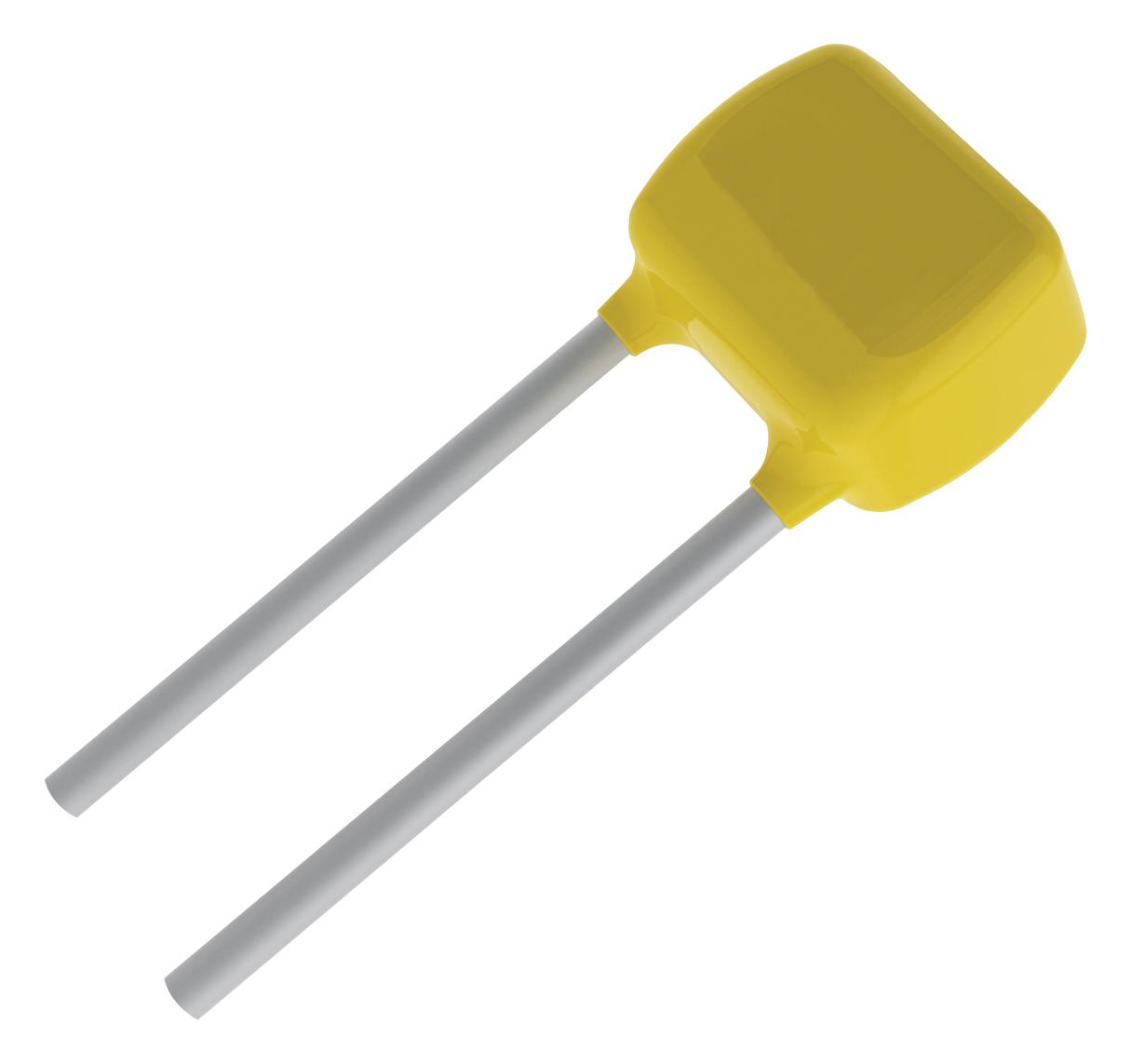

KEMET C315C682K5R5TA7303 6800pF Ceramic Capacitor
The KEMET GoldMax 300 Comm X7R series ceramic capacitor, part number C315C682K5R5TA7303, is a high-quality component designed for commercial standard applications. This radial-style capacitor offers a capacitance of 6800 pF with a 10% tolerance and a voltage rating of 50 VDC. Its X7R dielectric provides stable capacitance characteristics over a wide temperature range (-55°C to +125°C), ensuring consistent performance in demanding environments. The capacitor's tin termination and compact dimensions make it easy to integrate into various circuit designs. It is RoHS compliant and halogen-free, meeting environmental standards. Ideal for decoupling, filtering, and timing circuits in consumer electronics, industrial equipment, and automotive applications.
KEMET C315C682K5R5TA7303 6800pF Ceramic Capacitor Specifications:
- Series: GoldMax 300 Comm X7R
- Style: Radial
- Description: GoldMax, Commercial Standard
- RoHS: Yes
- Termination: Tin
- AEC-Q200: No
- Halogen Free: Yes
- Capacitance: 6800 pF
- Measurement Condition: 1 kHz 1.0Vrms
- Capacitance Tolerance: 10%
- Voltage DC: 50 VDC
- Dielectric Withstanding Voltage: 125 VDC
- Temperature Range: -55/+125°C
- Temperature Coefficient: X7R
- Capacitance Change with Reference to +25°C and 0 VDC Applied(TCC): 0.15, 1kHz 1.0Vrms
- Dissipation Factor: 2.5% 1 kHz 1.0Vrms
- Aging Rate: 3% Loss/Decade Hour
- Insulation Resistance: 100 GOhms
- L: 3.81mm MAX
- H: 3.14mm MAX
- T: 2.54mm MAX
- S: 2.54mm +/-0.78mm
- H0: 18mm MIN
- F: 0.51mm +0.1/-0.025mm
- Packaging: T&R, 305mm
- Packaging Quantity: 2500
