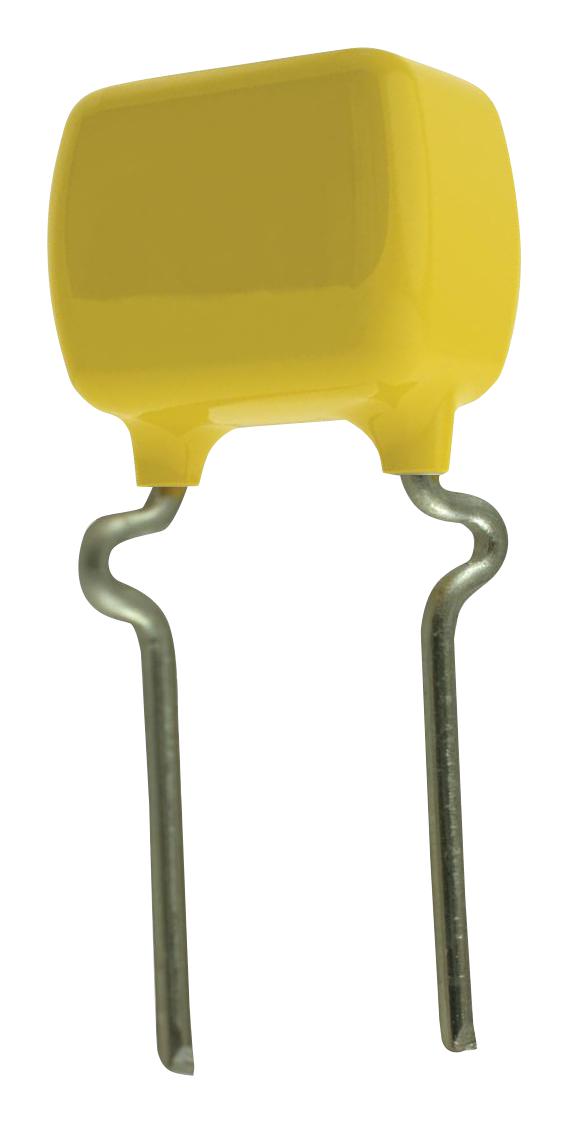

KEMET C316C680J5G5TA7303 Ceramic Capacitor
The GoldMax 300 Comm COG is a ceramic, copper-oxide gap (COG) capacitor with a capacitance of 68 pF, designed for commercial applications. It features a voltage rating of 50 VDC, with a dielectric withstand voltage up to 125%. The component has a T&R packaging with a length of 3.81mm, height of 5.84mm, and lead spacing of 2.54mm. It offers a capacitance tolerance of ±5%, low dissipation factor of 0.10%, and an operating temperature range of -55°C to +125°C, ensuring reliable performance across various electronic circuits.
KEMET C316C680J5G5TA7303 Ceramic Capacitor Specifications:
- Capacitance: 68 pF
- Capacitance Tolerance: ±5%
- Voltage DC: 50 VDC
- Dimensions: Length 3.81mm MAX, Height 5.84mm MAX, Lead Spacing 2.54mm
- Dielectric Withstanding Voltage: 125%
- Temperature Range: -55°C to +125°C
- Dissipation Factor: 0.10% at 25°C
- Insulation Resistance: 100 GOhms
- Packaging: T&R, 305mm reel
- Quantity: 2500 units
- RoHS Compliant, Halogen Free
- Termination: Tin
- Style: Radial
- Failure Rate: N/A
- Material: Ceramic, GoldMax series
Buy the KEMET Series GoldMax 300 Comm COG Ceramic Capacitor: C316C680J5G5TA7303
Purchase the KEMET GoldMax 300 Comm COG ceramic capacitor online today and enjoy fast delivery, high-quality construction, and dependable performance for your electronic projects. This 68 pF capacitor offers precise tolerance, robust insulation resistance, and wide temperature range, making it suitable for high-reliability applications. With RoHS compliance and a lead spacing of 2.54mm, it integrates easily into various circuit designs. Order now to ensure your electronic devices operate efficiently and reliably with this premium ceramic component.
Buy KEMET GoldMax 300 Comm COG ceramic capacitor with 68 pF, 50 VDC rating, excellent stability, and RoHS compliance for reliable electronic solutions.
Frequently Asked Questions
Where can I buy KEMET C316C680J5G5TA7303?
You can click on the BUY or RFQ button to purchase C316C680J5G5TA7303 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part C316C680J5G5TA7303?
You can download the C316C680J5G5TA7303 datasheet or visit the KEMET website for support.
Who is the manufacturer of C316C680J5G5TA7303?
KEMET
