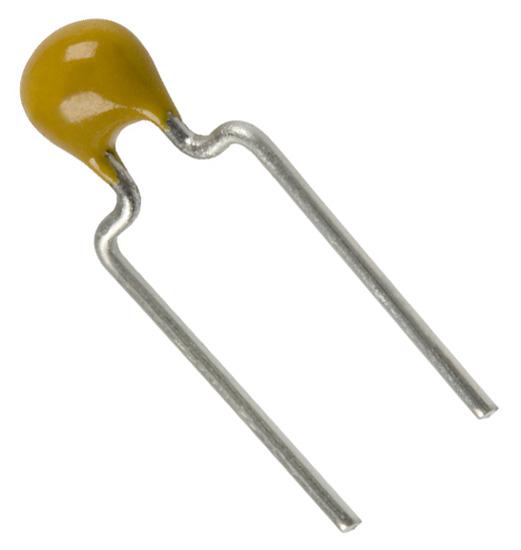

KEMET C317C100J2G5TA Ceramic Capacitor
KEMET's Goldmax conformally coated radial leaded ceramic capacitors with C0G dielectric offer exceptional stability and high precision for resonant circuits and high-frequency applications. They operate up to 125°C, maintaining capacitance with negligible variation over time and voltage. Featuring low ESR and ESL, these capacitors are flame-retardant, RoHS compliant, and suitable for demanding electronic designs requiring high ripple current capability and thermal stability. Dimensions are approximately 3.81mm x 3.14mm, with voltage ratings up to 200V DC. Their non-polar configuration eases installation, making them ideal for sensitive, high-frequency electronic circuits.
KEMET C317C100J2G5TA Ceramic Capacitor Specifications:
- Capacitance: 10 pF
- Capacitance Tolerance: 5%
- Voltage DC: 200 VDC
- Dielectric: C0G/NP0
- Temperature Range: -55°C to +125°C
- Dimensions: approximately 3.81mm x 3.14mm
- Material: Class I ceramic with conformal coating
- Flammability: UL Standard 94V-0
- Temperature Coefficient: C0G
- Dissipation Factor: 0.1% at 1 MHz 1.0Vrms
- Insulation Resistance: 100 GOhms
- Lead Spacing: 5.08mm
- Halogen Free: Yes
Buy the Buy KEMET Ceramic Capacitor Part Number C317C100J2G5TA Online
Purchase the KEMET ceramic capacitor C317C100J2G5TA online today and enjoy high precision, excellent temperature stability, and low ESR for critical electronic applications. With a maximum temperature of 125°C and a capacitance of 10 picofarads at 200 volts DC, this capacitor is suitable for resonant and high-frequency circuits. Its conformal coating ensures durability and reliability, meeting UL safety standards. Perfect for engineers and designers seeking robust components, this product guarantees consistent performance, ease of installation, and excellent thermal stability, making it an essential part of your electronic toolkit.
Get KEMET C317C100J2G5TA today—built for high stability, low ESR, and reliable performance in demanding electronic circuits.
Frequently Asked Questions
Where can I buy KEMET C317C100J2G5TA?
You can click on the BUY or RFQ button to purchase C317C100J2G5TA from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part C317C100J2G5TA?
You can download the C317C100J2G5TA datasheet or visit the KEMET website for support.
Who is the manufacturer of C317C100J2G5TA?
KEMET
