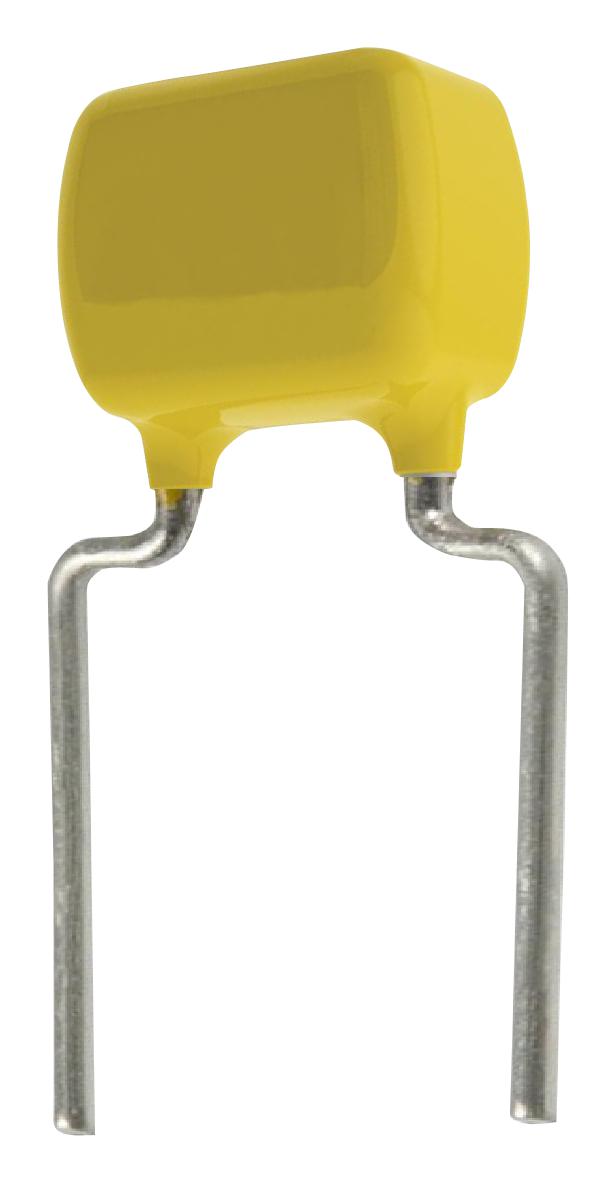

KEMET C317C100J2G5TA91707303 Automotive Ceramic Capacitor
The GoldMax 300 Auto COG is an automotive-grade ceramic capacitor designed for reliable performance in automotive electronic applications. It features a capacitance of 10 pF with a 5% tolerance, and a maximum voltage rating of 200 VDC. Its compact radial style measures up to 3.81mm in length, with a height of 5.08mm and a width of 2.54mm. Recognized for its RoHS compliance, the capacitor is tin-terminated, halogen-free, and qualified under the AEC-Q200 standard, ensuring durability and high performance in demanding environments.
KEMET C317C100J2G5TA91707303 Automotive Ceramic Capacitor Specifications:
- Capacitance: 10 pF
- Capacitance Tolerance: 5%
- Voltage DC: 200 VDC
- Dimensions: L 3.81mm MAX, H 5.08mm MAX, W 2.54mm MAX
- Dielectric Strength: <1 y
- Temperature Range: -55°C to +125°C
- RoHS: Yes
- Termination: Tin
- Qualification: AEC-Q200
- Dissipation Factor: 0.10% at 25°C
- Insulation Resistance: 100 GOhms
- Aging Rate: 0% Loss/Decade Hour
Buy the KEMET C317C100J2G5TA9170 – Reliable Ceramic Capacitor for Automotive Applications
Enhance your automotive electronics with the KEMET ceramic capacitor, offering 10 pF capacitance, 200 VDC voltage rating, RoHS compliance, and proven reliability. Perfect for demanding automotive applications, the high-quality capacitor features a tin termination, compact radial design, and is qualified under the advanced AEC-Q200 standard. Its small size, excellent dielectric strength, and low dissipation factor make it an ideal choice for engineers seeking dependable, durable, and efficient electronic components. Purchase online now for fast delivery and trusted performance.
Order your KEMET series C317C100J2G5TA9170 automotive-grade ceramic capacitor today and ensure dependable performance in your automotive electronics projects.
Frequently Asked Questions
Where can I buy KEMET C317C100J2G5TA91707303?
You can click on the BUY or RFQ button to purchase C317C100J2G5TA91707303 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part C317C100J2G5TA91707303?
You can download the C317C100J2G5TA91707303 datasheet or visit the KEMET website for support.
Who is the manufacturer of C317C100J2G5TA91707303?
KEMET
