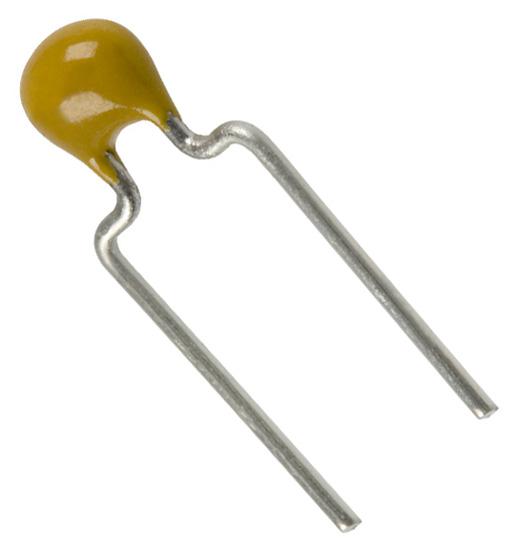

KEMET C317C102J1G5TA Ceramic Radial Capacitor
KEMET's Goldmax conformally coated radial leaded ceramic capacitors feature C0G dielectric with a maximum operating temperature of 125°C. Known for stability, low loss, and minimal capacitance change with temperature, voltage, or time, these capacitors are ideal for resonant and high-stability applications. They offer a capacitance of 1000 pF with a tolerance of 5%, voltage rating of 100 VDC, and operate over -55°C to +125°C. Encapsulated in epoxy, they meet UL Standard 94V-0 flame requirements and are non-polar for easy installation, suitable for precision electronic circuits.
KEMET C317C102J1G5TA Ceramic Radial Capacitor Specifications:
- Capacitance: 1000 pF
- Capacitance Tolerance: 5%
- Voltage DC: 100 VDC
- Dielectric: C0G
- Temperature Range: -55°C to +125°C
- Dissipation Factor: 0.1% at 1 MHz 1.0Vrms
- Insulation Resistance: 100 GOhms
- Maximum Operating Temperature: 125°C
- Lead Spacing: 5.08mm
- RoHS Compliant: Yes
- Halogen Free: Yes
- Termination: Tin
- Packaging: Bulk, Bag
- Packaging Quantity: 500
- Style: Radial
- RoHS: Yes
- Certification: UL listed
- Failure Rate: N/A
- AEC-Q200: No
Buy the KEMET C317C102J1G5TA – Reliable Ceramic Capacitors for Industrial Applications
Purchase the KEMET ceramic radial capacitor online today and enhance your electronic projects with high stability, low loss, and wide temperature operation. With a capacitance of 1000 pF and voltage rating of 100 VDC, this capacitor features a C0G dielectric for minimal capacitance change over temperature, voltage, and time. Its epoxy encapsulation ensures thermal stability and flame retardance, meeting UL standards. Ideal for resonant circuits and precision applications, it is available in bulk packaging for easy procurement and quick integration into your manufacturing or repair process.
Buy KEMET C317C102J1G5TA now and experience unmatched reliability and performance in high-stability electronic circuits.
Frequently Asked Questions
Where can I buy KEMET C317C102J1G5TA?
You can click on the BUY or RFQ button to purchase C317C102J1G5TA from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part C317C102J1G5TA?
You can download the C317C102J1G5TA datasheet or visit the KEMET website for support.
Who is the manufacturer of C317C102J1G5TA?
KEMET
