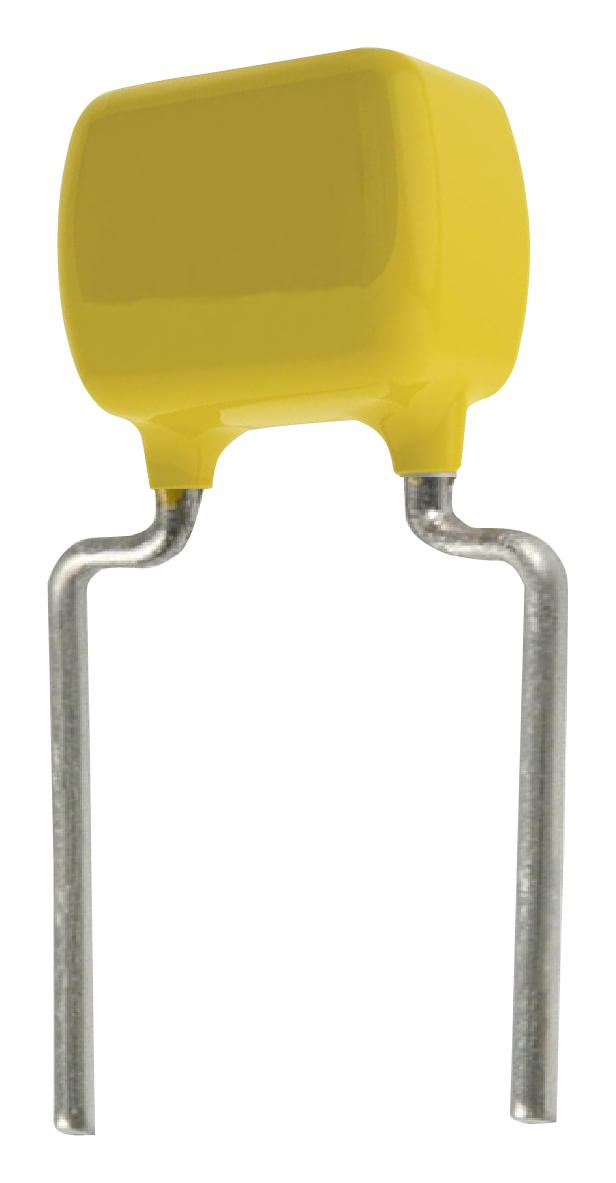

KEMET C317C222K5R5TA7303 Ceramic Capacitor
The GoldMax 300 Comm X7R is a high-reliability radial ceramic capacitor with a capacitance of 2200 pF and a 10% tolerance. Rated for 50 VDC, it operates over -55°C to +125°C, making it suitable for various commercial electronic applications. Its X7R dielectric offers stability and reliability under voltage and temperature changes. The capacitor features tin termination, RoHS compliance, and halogen-free construction. Its dimensions include a maximum length of 3.81mm, height of 5.08mm, and a thickness of 2.54mm. Packaged in T&R format, with 2500 units per reel, it is ideal for surface-mount device manufacturing and high-density circuitry.
KEMET C317C222K5R5TA7303 Ceramic Capacitor Specifications:
- Capacitance: 2200 pF
- Capacitance Tolerance: 10%
- Voltage DC: 50 VDC
- Dielectric: X7R
- Temperature Range: -55°C to +125°C
- Measurement Condition: 1 kHz 1.0Vrms
- Dissipation Factor: 2.5% at 1 kHz 1.0Vrms
- Capacitance Change with Temperature: 0.15 at +25°C
- Aging Rate: 3% Loss per decade hour
- Insulation Resistance: 100 GOhms
- Dimensions: Length 3.81mm max, Height 5.08mm max, Thickness 2.54mm max
- Lead Spacing: 5.08mm ±0.78mm
- Packaging: T&R, 305mm reel, 2500 units
- Termination: Tin
- RoHS: Yes
- Halogen Free: Yes
- Series: GoldMax 300 Comm X7R
- Style: Radial
- Certification: RoHS Compliant
Buy the Buy KEMET Ceramic Capacitor Part Number C317C222K5R5TA7303 Online
Purchase the KEMET ceramic capacitor C317C222K5R5TA7303 online for high reliability and performance in your electronic projects. Its 2200 pF capacitance, 50 VDC voltage rating, and X7R dielectric ensure stability across a wide temperature range from -55°C to +125°C. The radial design with tin termination and RoHS compliance makes it ideal for surface-mount technology and high-density circuit applications. Featuring easy-to-handle packaging with 2500 units per reel, this capacitor guarantees consistent quality, durability, and ease of assembly, satisfying the demands of professional electronics manufacturing.
Get KEMET C317C222K5R5TA7303 today—designed for high-reliability, stable performance in commercial electronic applications.
Frequently Asked Questions
Where can I buy KEMET C317C222K5R5TA7303?
You can click on the BUY or RFQ button to purchase C317C222K5R5TA7303 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part C317C222K5R5TA7303?
You can download the C317C222K5R5TA7303 datasheet or visit the KEMET website for support.
Who is the manufacturer of C317C222K5R5TA7303?
KEMET
