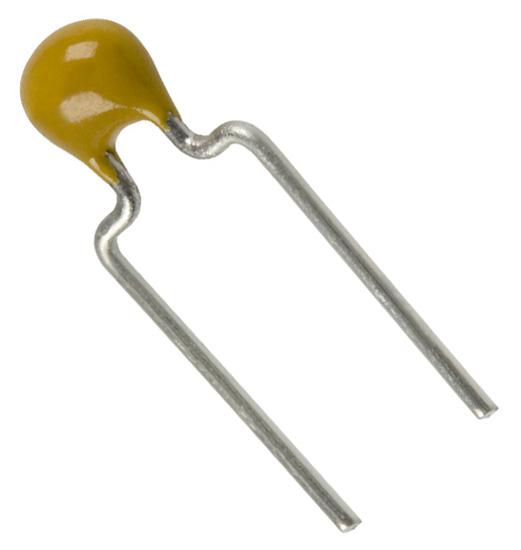

KEMET C317C471J2G5TA Ceramic Capacitor
The GoldMax 470 pF ceramic capacitor offers a 5% tolerance, 200 VDC voltage rating, and operates from -55°C to +125°C. It features a COG dielectric, tin termination, and is RoHS compliant. Designed for commercial applications, it has a radial style with dimensions up to 3.81mm in length, 5.08mm in height, and 2.54mm in thickness. The capacitor exhibits a dissipation factor of 0.1% at 1 MHz, maintains 100 GOhms insulation resistance, and is packaged in bulk or bags of 500 units, suitable for various electronic and industrial uses.
KEMET C317C471J2G5TA Ceramic Capacitor Specifications:
- Capacitance: 470 pF
- Capacitance Tolerance: 5%
- Voltage DC: 200 VDC
- Dielectric: COG
- Measurement Condition: 1 MHz 1.0Vrms
- Temperature Range: -55°C to +125°C
- Dissipation Factor: 0.1% at 1 MHz
- Insulation Resistance: 100 GOhms
- Dimensions: L 3.81mm MAX, H 5.08mm MAX, T 2.54mm MAX, F 0.51mm +0.1/-0.025mm
- Material: Tin termination
- RoHS Compliant: Yes
- Packaging: Bulk, Bag (500 units)
Buy the Buy KEMET Ceramic Capacitor Part Number C317C471J2G5TA Online
Purchase the KEMET ceramic capacitor C317C471J2G5TA online today and experience dependable, high-quality performance. This 470 pF, 200 VDC rated component features a COG dielectric, tin termination, and operates within a broad temperature range. Its compact radial design makes it ideal for industrial, electronic, and circuit applications. Available in bulk packaging of 500 units, it ensures efficient inventory management. Order now to benefit from quick delivery and trusted KEMET quality that enhances your project’s reliability and durability.
Order your KEMET Series C317C471J2G5TA ceramic capacitor today and ensure reliable performance with this compact, RoHS-compliant component.
Frequently Asked Questions
Where can I buy KEMET C317C471J2G5TA?
You can click on the BUY or RFQ button to purchase C317C471J2G5TA from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part C317C471J2G5TA?
You can download the C317C471J2G5TA datasheet or visit the KEMET website for support.
Who is the manufacturer of C317C471J2G5TA?
KEMET
