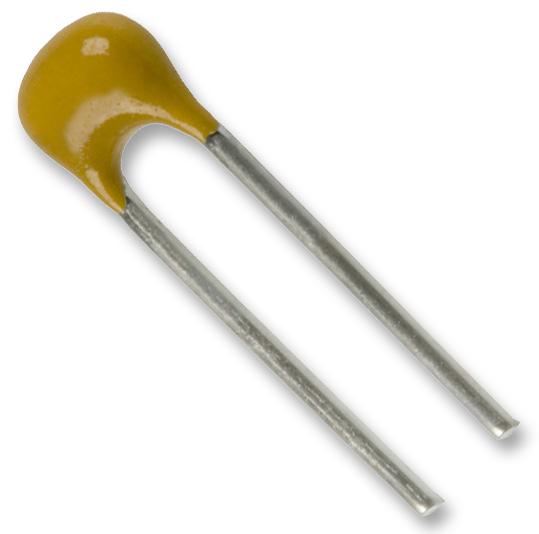

KEMET C320C475K3N5TA91707301 Automotive Ceramic Capacitor
The GoldMax 300 Auto X8L HT150C is a 4.7uF ceramic capacitor designed for automotive applications. It features a voltage rating of 25 VDC, X8L dielectric, and operates within a temperature range of -55°C to +150°C. Built with tin termination and halogen-free materials, it meets AEC-Q200 standards for automotive reliability. Its radial style and lead spacing of 2.54mm ensure easy mounting. The capacitor provides stable performance with a dissipation factor of 2.5% at 1 MHz and an insulation resistance of 210 MOhms, suitable for high-temperature, high-reliability automotive environments. Typical measurement condition is 1 MHz 1.0 Vrms.
KEMET C320C475K3N5TA91707301 Automotive Ceramic Capacitor Specifications:
- Capacitance: 4.7 uF
- Voltage DC: 25 VDC
- Temperature Range: -55°C to +150°C
- Dielectric: X8L
- Capacitance Tolerance: 10%
- Dissipation Factor: 2.5% at 1 MHz 1.0Vrms
- Insulation Resistance: 210 MOhms
- Termination: Tin
- RoHS Compliant: Yes
- Halogen Free: Yes
- Series: GoldMax 300 Auto X8L HT150C
- Style: Radial
- Lead Spacing: 2.54mm +/-0.78mm
- Packaging: T&R, 305mm, Quantity: 2500
- Temperature Coefficient: X8L
- Voltage withstand: 625 VDC
Buy the Buy KEMET Ceramic Capacitor Part Number C320C475K3N5TA91707301 Online
Order the KEMET ceramic capacitor, part C320C475K3N5TA91707301, for reliable high-temperature performance in automotive systems. Featuring 4.7uF capacitance at 25V, X8L dielectric, and RoHS compliance, this radial style capacitor is ideal for demanding automotive environments. Its tin termination ensures durability and ease of mounting. With a temperature range of -55°C to +150°C, it meets AEC-Q200 standards for quality and reliability. Purchase online now for fast delivery and ensure your automotive electronic devices operate flawlessly under extreme conditions.
Get KEMET C320C475K3N5TA91707301 today—designed for automotive reliability, high-temperature endurance, and superior performance in demanding environments.
