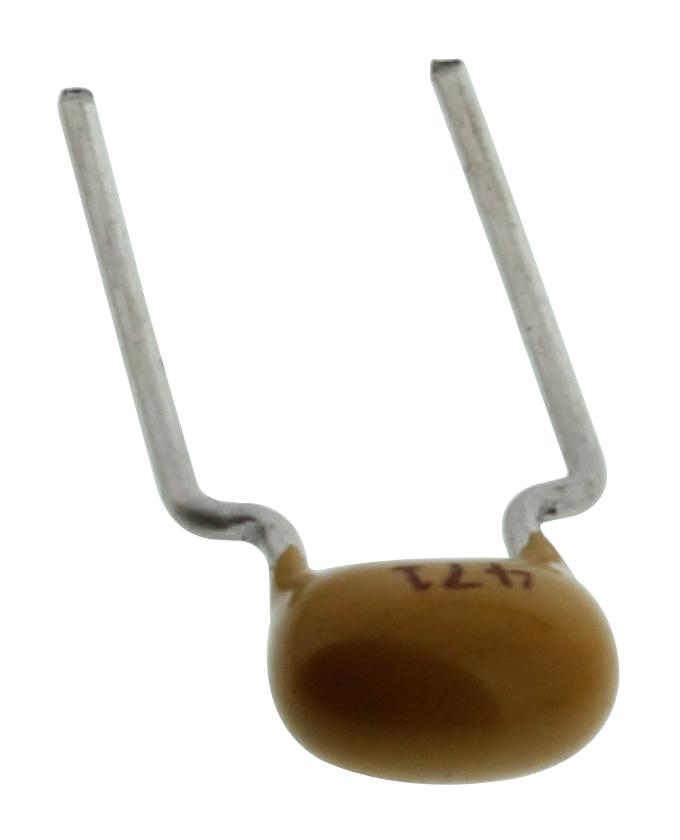

KEMET C322C471JDG5TA High-Voltage Ceramic Capacitor
KEMET's GoldMax 300 series features high-voltage ceramic capacitors with a C0G dielectric, conformally coated for thermal stability. These radial leaded capacitors offer a capacitance of 470 pF with a tolerance of 5% and voltage ratings up to 1000 VDC. Suitable for snubbers, filters, power supply circuits, and high-voltage applications, they operate from -55°C to 125°C, ensuring reliable performance. With a matte tin-plated finish, dimensions of 5.08mm by 5.84mm, and UL94 V-0 flammability rating, they support high ripple currents and are ideal in demanding environments.
KEMET C322C471JDG5TA High-Voltage Ceramic Capacitor Specifications:
- Capacitance: 470 pF
- Capacitance Tolerance: 5%
- Voltage DC: 1000 VDC
- Dielectric: C0G
- Temperature Range: -55°C to +125°C
- Dimensions: 5.08mm x 5.84mm
- Lead Spacing: 5.08mm
- Termination: Tin
- RoHS Compliant: Yes
- Flammability: UL94 V-0
- Dissipation Factor: 0.1% at 1 MHz 1.0Vrms
- Insulation Resistance: 100 GOhms
- Temperature Coefficient: COG
- Measurement Condition: 1 MHz 1.0Vrms
- Conformally Coated: Yes
- Supports high ripple currents
- Application: Snubbers, filters, coupling in power circuits
Buy the KEMET C322C471JDG5TA – Reliable Ceramic Capacitors for Industrial Applications
Advance your power circuits with the high-voltage ceramic capacitor. Designed with a 470 pF capacitance, 1000 VDC rating, and C0G dielectric, this capacitor ensures reliability across various industrial applications. Its conformal coating provides thermal stability, while the tin-plated terminals guarantee excellent solderability. Operating efficiently within -55°C to 125°C, it supports high ripple currents and is suitable for snubbers, filters, and high-voltage coupling in power supplies. Choose this capacior for durability, precision, and superior performance in complex electrical systems.
Get KEMET C322C471JDG5TA today—built for high-voltage stability, precision, and long-lasting durability in demanding industrial environments.
Frequently Asked Questions
Where can I buy KEMET C322C471JDG5TA?
You can click on the BUY or RFQ button to purchase C322C471JDG5TA from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part C322C471JDG5TA?
You can download the C322C471JDG5TA datasheet or visit the KEMET website for support.
Who is the manufacturer of C322C471JDG5TA?
KEMET
