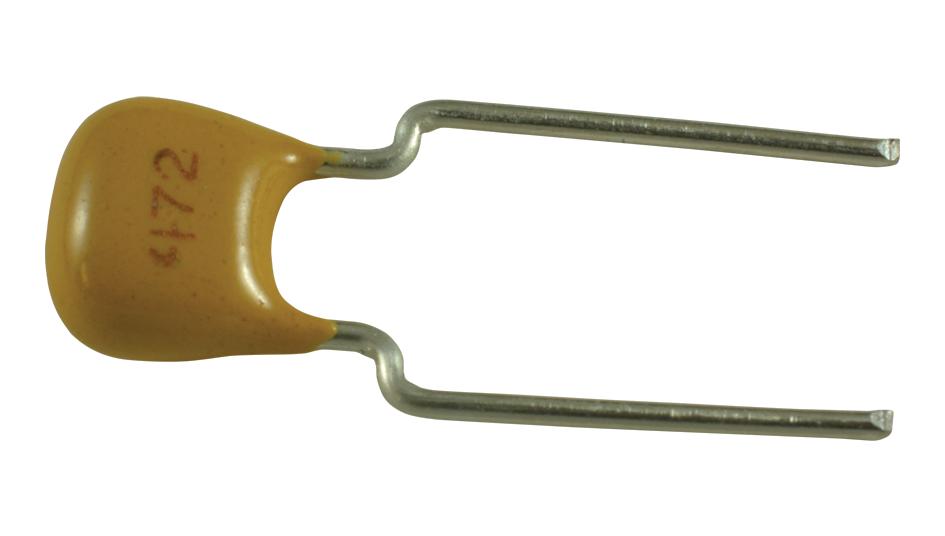

KEMET C322C472F1G5TA Datasheet & Stock

KEMET's Goldmax conformally coated radial leaded ceramic capacitors with C0G (NP0) dielectric feature a maximum operating temperature of 125°C. The C0G dielectric is a stable Class I material that is temperature compensating and suitable for resonant circuits or applications requiring high Q and capacitance stability. These capacitors exhibit no change in capacitance over time or with applied voltage, and only a negligible variation of ±30 ppm/°C across the temperature range of -55°C to +125°C. They meet UL Standard 94V-0 flame test requirements. Capacitance values range from 1 pF to 0.47 µF, with DC voltage ratings from 25V to 250V. They are available in tolerances of ±0.1 pF, ±0.25 pF, ±0.5 pF, ±1%, ±2%, ±5%, and ±10%. Features include extremely low ESR and ESL, compact dimensions of 3.81mm x 3.14mm (L x H), high thermal stability, high ripple current capability, no capacitance change under rated voltage, and no capacitance decay over time. These non-polar devices simplify installation and ensure reliable performance in demanding applications.

View C322C472F1G5TADatasheet [pdf]
