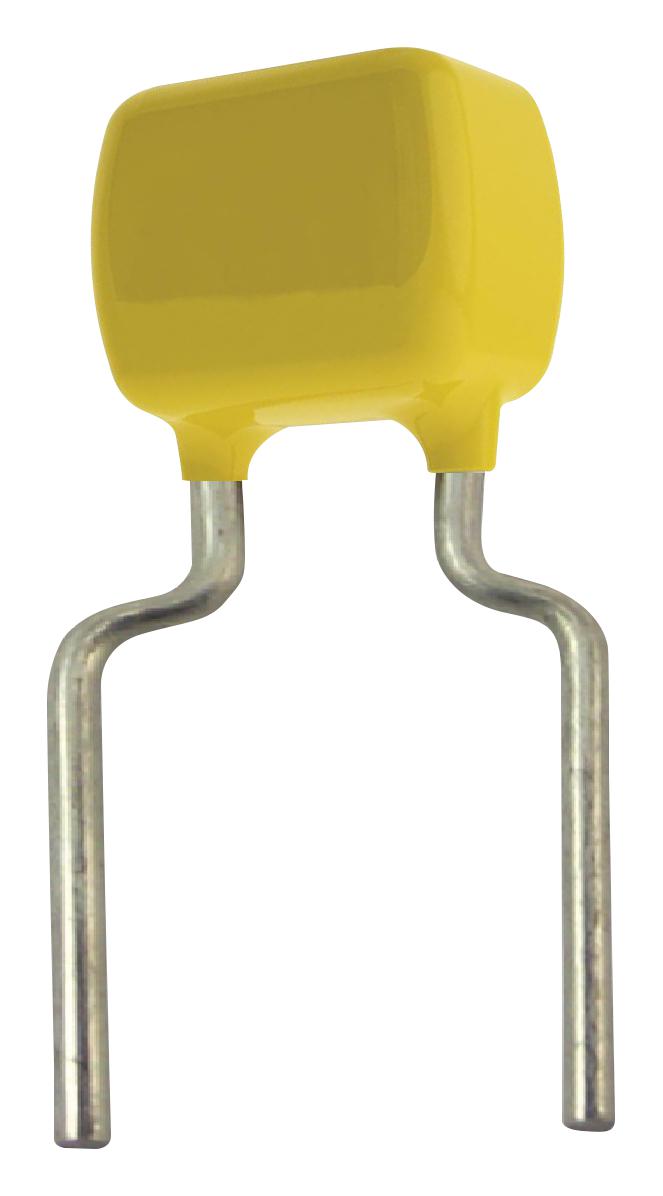

KEMET C323C473K1R5TA7303 Ceramic Capacitor
The GoldMax 300 Comm X7R is a high-quality ceramic capacitor with a capacitance of 0.047 µF, rated for 100 VDC. Designed for commercial applications, it features a radial style with lead spacing of 5.08mm, RoHS compliance, and halogen-free materials. Its X7R dielectric offers stable performance across a temperature range of -55°C to +125°C. Suitable for demanding electronic circuits, the capacitor has a dissipation factor of 2.50% at 25°C and an insulation resistance of 21.28 GOhms, ensuring reliability and durability in diverse environments.
KEMET C323C473K1R5TA7303 Ceramic Capacitor Specifications:
- Capacitance: 0.047 µF
- Capacitance Tolerance: 10%
- Voltage DC: 100 VDC
- Dielectric Withstanding Voltage: 250 V
- Temperature Range: -55°C to +125°C
- Temperature Coefficient: X7R
- Lead Spacing: 5.08 mm +/-0.78 mm
- Dimensions: Length 508mm MAX, Height 7.62mm MAX, Thickness 3.18mm MAX, Lead Length 16mm MIN
- Dissipation Factor: 2.50% at 25°C
- Insulation Resistance: 21.28 GOhms
- Aging Rate: 3% Loss/Decade Hour
- Packaging: T&R, 305mm, Quantity: 2500 units
- RoHS Compliant, Halogen Free
Buy the Buy KEMET Ceramic Capacitor Part Number C323C473K1R5TA7303 Online
Discover the reliable KEMET ceramic capacitor featuring 0.047 µF capacitance, 100 VDC rating, X7R dielectric, and radial style design. Perfect for various electronic circuits, it offers excellent thermal stability from -55°C to +125°C, with a dissipation factor of 2.50% at 25°C. Its lead spacing of 5.08mm ensures easy assembly, while the insulation resistance of 21.28 GOhms guarantees durability. Purchase this high-quality component online today to improve your device performance and ensure long-term reliability in demanding applications.
Order your KEMET Series C323C473K1R5TA7303 ceramic capacitor today and ensure your electronic projects benefit from dependable high-performance components.
Frequently Asked Questions
Where can I buy KEMET C323C473K1R5TA7303?
You can click on the BUY or RFQ button to purchase C323C473K1R5TA7303 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part C323C473K1R5TA7303?
You can download the C323C473K1R5TA7303 datasheet or visit the KEMET website for support.
Who is the manufacturer of C323C473K1R5TA7303?
KEMET
