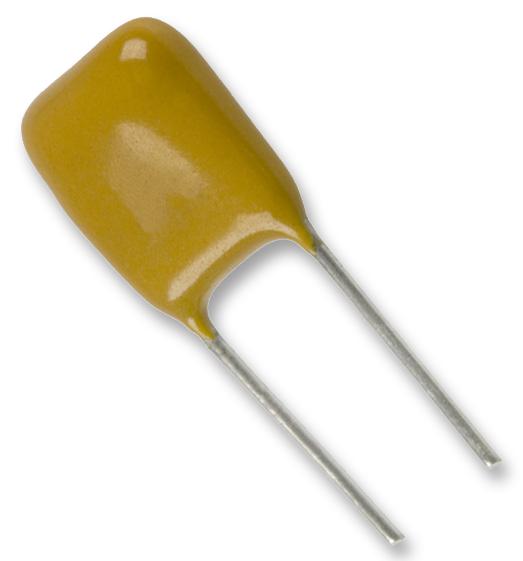

KEMET C330C105M5U5TA Ceramic Capacitor
The GoldMax 300 Z5U ceramic capacitor offers reliable performance for industrial and electronic applications. With a capacitance of 1 uF, 20% tolerance, and a voltage rating of 50 VDC, it suits precision circuit needs. Its Z5U dielectric coefficient ensures stable operation within a temperature range of +10°C to +85°C. Design features include a radial style, tin termination, and compact dimensions of 7.1mm length, 9.14mm height, and 4.07mm thickness. RoHS compliant and halogen-free, this capacitor is ideal for commercial-grade electronic systems and industrial devices.
KEMET C330C105M5U5TA Ceramic Capacitor Specifications:
- Capacitance: 1 uF
- Capacitance Tolerance: 20%
- Voltage DC: 50 VDC
- Dielectric: Z5U
- Temperature Range: +10°C to +85°C
- Measurement Condition: 1 kHz 1.0Vrms
- Dissipation Factor: 4% at 1 kHz
- Capacitance Change with Temperature: '+22%/-56%'
- Insulation Resistance: 100 MOhms
- Dimensions: Length 7.1mm MAX, Height 9.14mm MAX, Thickness 4.07mm MAX, Lead Spacing 5.08mm +/-0.78mm
- Termination: Tin
- RoHS Compliant: Yes
- Halogen Free: Yes
- Packaging: Bulk, Bag, Quantity: 250
Buy the KEMET C330C105M5U5TA – Reliable Ceramic Capacitor for Industrial Applications
Order the KEMET C330C105M5U5TA ceramic capacitor today to ensure your projects benefit from high-quality, reliable components suitable for industrial and commercial applications. This 1 uF capacitor with a 20% tolerance, 50 VDC rating, and Z5U dielectric offers excellent stability within +10°C to +85°C. Its compact radial design with tin termination makes it ideal for circuit board assembly. Purchase online now for fast delivery and technical support, ensuring your electronic systems operate smoothly and efficiently with trusted components.
Buy KEMET C330C105M5U5TA now and experience unmatched reliability and performance for your electronic designs.
Frequently Asked Questions
Where can I buy KEMET C330C105M5U5TA?
You can click on the BUY or RFQ button to purchase C330C105M5U5TA from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part C330C105M5U5TA?
You can download the C330C105M5U5TA datasheet or visit the KEMET website for support.
Who is the manufacturer of C330C105M5U5TA?
KEMET
