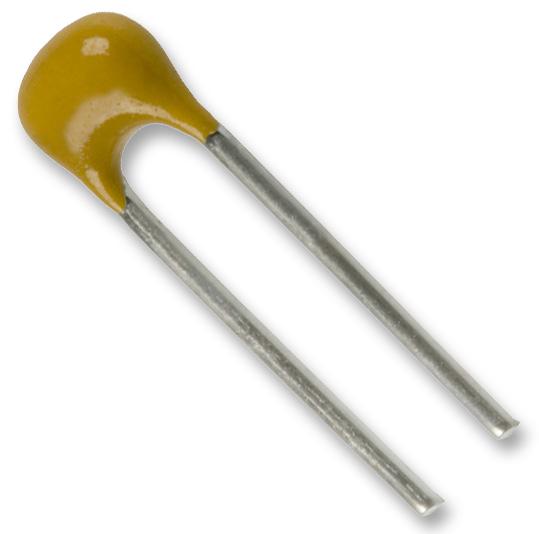

KEMET C330C224J3H5TA91707301 Automotive Ceramic Capacitor
The GoldMax 300 Auto X8R HT150C capacitor is a 0.22 uF, 5% tolerance ceramic capacitor designed for automotive applications. With a voltage rating of 25 VDC, it features X8R dielectric with a temperature range of -55°C to +150°C, ensuring high stability. The radial lead style and tin termination make it suitable for robust electronic assemblies. Compliant with RoHS and AEC-Q200 qualifications, this capacitor offers reliable performance in demanding automotive environments, with low dissipation factor and high insulation resistance, making it ideal for automotive electronics and power circuits.
KEMET C330C224J3H5TA91707301 Automotive Ceramic Capacitor Specifications:
- Capacitance: 0.22 uF
- Capacitance Tolerance: 5%
- Voltage DC: 25 VDC
- Dielectric: X8R
- Temperature Range: -55°C to +150°C
- Dissipation Factor: 2.5% at 1 MHz 1.0Vrms
- Insulation Resistance: 4.55 GOhms
- Measurement Condition: 1 MHz 1.0Vrms
- Failure Rate: N/A
- RoHS Compliant: Yes
- Qualification: AEC-Q200
- Lead Termination: Tin
- Package Length: 7.1mm MAX
- Package Width: 9.14mm MAX
- Lead Spacing: 5.08mm +/-0.78mm
- Packaging: T&R, 305mm
- Packaging Quantity: 1500
Buy the KEMET C330C224J3H5TA91707301 – Reliable Automotive Ceramic Capacitor for Industrial Applications
Purchase the KEMET C330C224J3H5TA91707301 ceramic capacitor online to ensure your automotive electronics are powered by high-quality components. Designed for demanding temperature ranges of -55°C to +150°C, this 0.22 uF capacitor offers excellent stability and low dissipation. Its robust tin termination, radial form factor, and RoHS compliance make it suitable for critical industrial applications including power circuits and electronic modules. Order now for fast delivery and reliable performance in your automotive and industrial projects.
Get KEMET C330C224J3H5TA91707301 today—built for automotive-grade reliability in industrial environments with high stability and temperature endurance.
Frequently Asked Questions
Where can I buy KEMET C330C224J3H5TA91707301?
You can click on the BUY or RFQ button to purchase C330C224J3H5TA91707301 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part C330C224J3H5TA91707301?
You can download the C330C224J3H5TA91707301 datasheet or visit the KEMET website for support.
Who is the manufacturer of C330C224J3H5TA91707301?
KEMET
