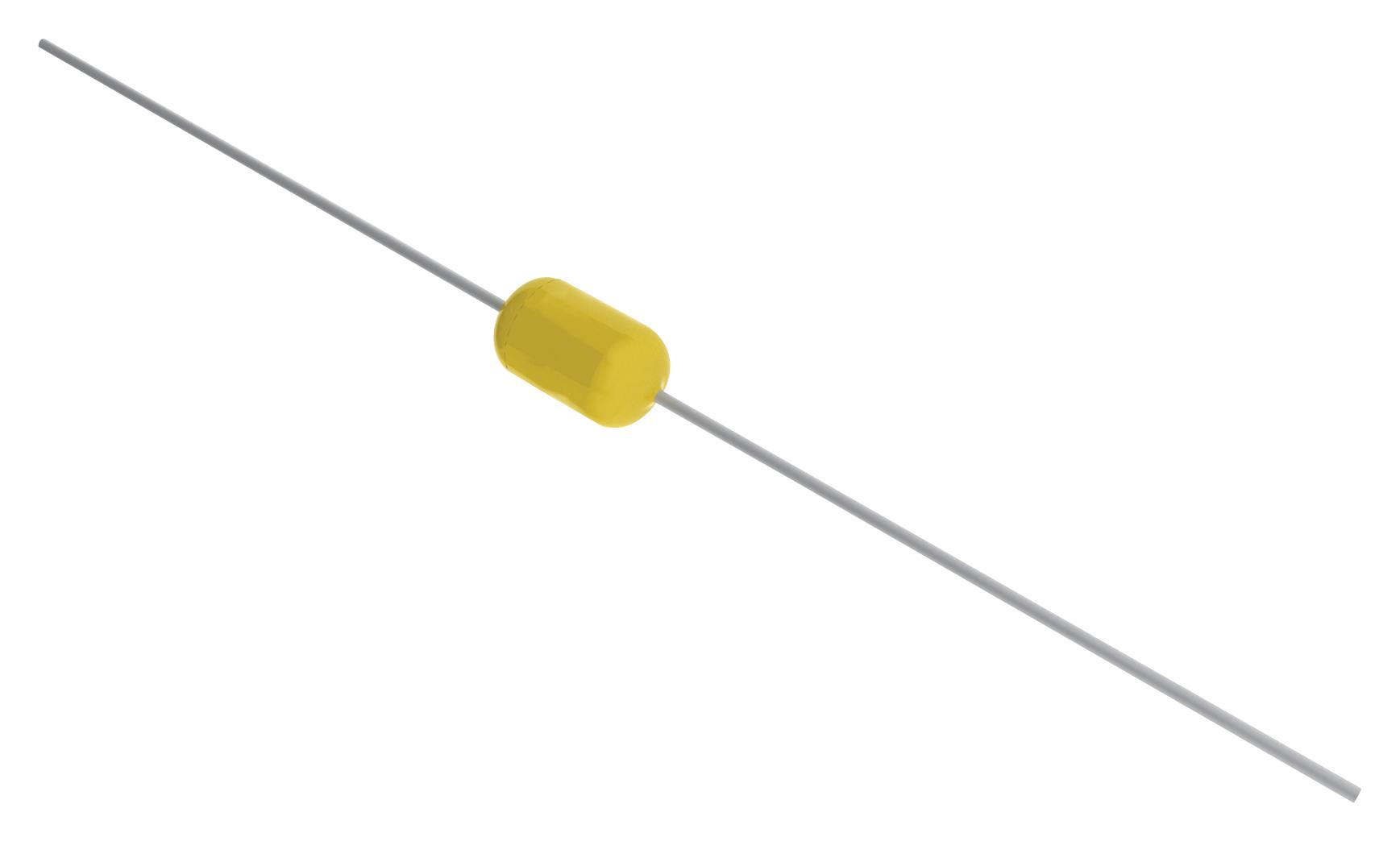

KEMET C410C102K5H5TA9170 Automotive Ceramic Capacitor
The AxiMax 400 Auto X8R HT150C is an automotive-grade ceramic capacitor with a capacitance of 1000 pF and a voltage rating of 50 VDC. It features X8R dielectric, RoHS compliance, and is designed to withstand temperatures from -55°C to +150°C. The component complies with AEC-Q200 standards, ensuring high reliability for automotive applications. It offers a capacitance tolerance of ±10%, low dissipation factor of 2.5%, and insulation resistance exceeding 100 GOhms. Packaged in bulk, the capacitor is suitable for high-performance electronic systems demanding durability and precision, especially in automotive and industrial environments.
KEMET C410C102K5H5TA9170 Automotive Ceramic Capacitor Specifications:
- Capacitance: 1000 pF
- Voltage Rating: 50 VDC
- Temperature Range: -55°C to +150°C
- Dielectric: X8R
- Capacitance Tolerance: ±10%
- Dimensions: Length 4.32mm, Max, Max D 24.1mm
- Dissipation Factor: 2.5% at 1 MHz 1.0 Vrms
- Insulation Resistance: 100 GOhms
- Packaging: Bulk, 300 units per bag
- RoHS: Yes
- AEC-Q200: Yes
- Halogen Free: Yes
- Terminations: Tin
- Measurement Condition: 1 MHz, 1 Vrms
Buy the Buy KEMET AxiMax 400 Auto X8R HT150C Part Number C410C102K5H5TA9170 Online
Order the KEMET C410C102K5H5TA9170 ceramic capacitor online today and ensure your automotive or industrial system's stability. With a capacitance of 1000 pF and a voltage rating of 50 VDC, this high-quality component adheres to auto industry standards with RoHS and AEC-Q200 compliance. Its X8R dielectric provides reliable temperature stability from -55°C to +150°C. Packaged in bulk, it offers low dissipation and high insulation resistance, making it ideal for applications demanding durability, low noise, and long-term performance in harsh environments.
Get KEMET C410C102K5H5TA9170 today—engineered for automotive reliability and precise performance in demanding environments.
Frequently Asked Questions
Where can I buy KEMET C410C102K5H5TA9170?
You can click on the BUY or RFQ button to purchase C410C102K5H5TA9170 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part C410C102K5H5TA9170?
You can download the C410C102K5H5TA9170 datasheet or visit the KEMET website for support.
Who is the manufacturer of C410C102K5H5TA9170?
KEMET
