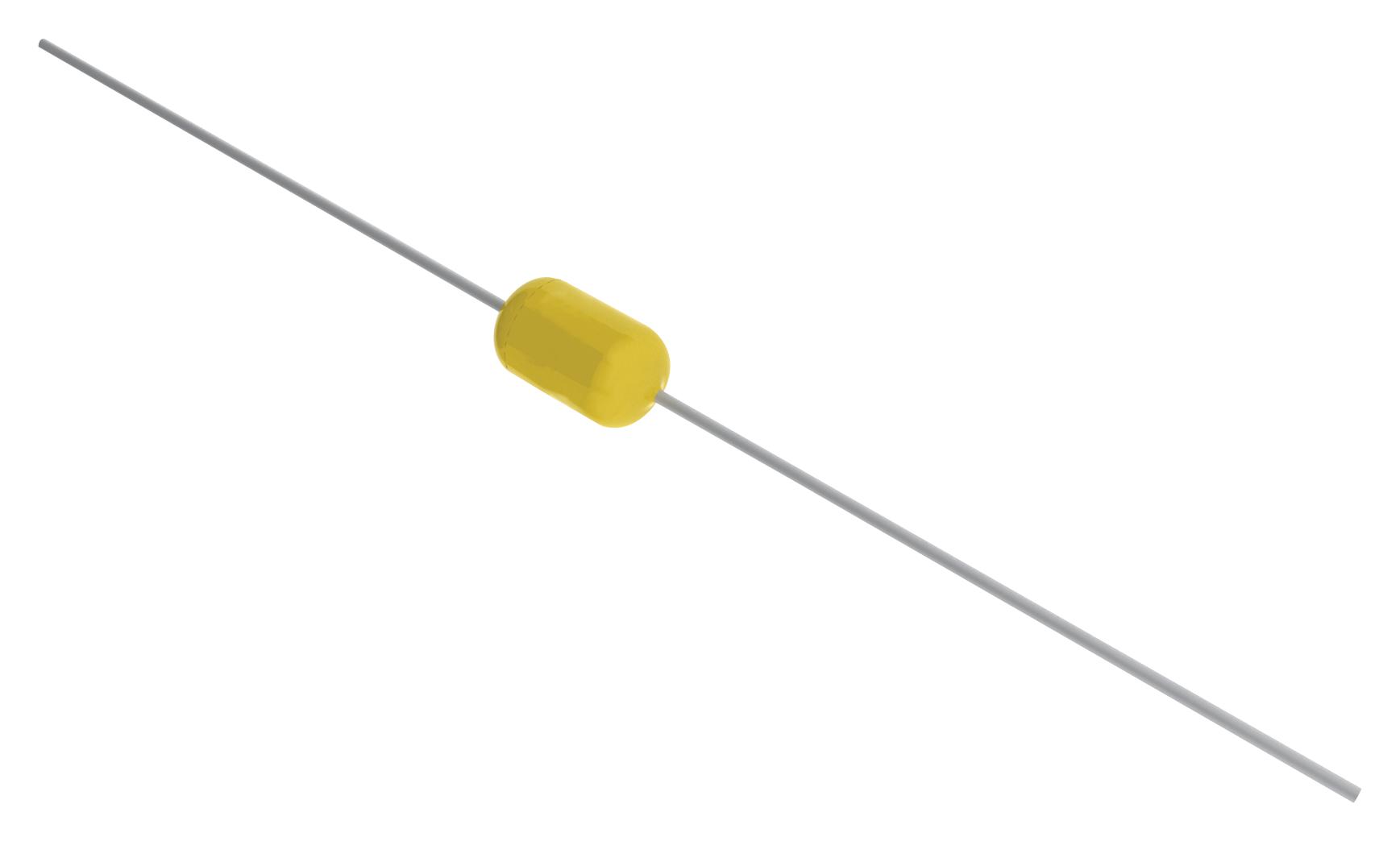

KEMET C410C220J1G5TA7200 Ceramic Chip Capacitor
The KEMET C410C220J1G5TA7200 is a ceramic chip capacitor with a capacitance of 22 pF, 5% tolerance, and a voltage rating of 100 VDC. Designed for commercial applications, it features COG dielectric for stability across a wide temperature range of -55°C to +125°C. The capacitor offers low dissipation factor of 0.1% at 1 MHz, excellent insulation resistance of 100 GOhms, and is halogen-free and RoHS compliant. Its compact dimensions include a diameter of 2.41mm MAX and length of 4.32mm MAX, making it suitable for high-frequency and precision circuits.
KEMET C410C220J1G5TA7200 Ceramic Chip Capacitor Specifications:
- Capacitance: 22 pF
- Capacitance Tolerance: 5%
- Voltage DC: 100 VDC
- Dielectric: COG
- Temperature Range: -55°C to +125°C
- Dissipation Factor: 0.1% at 1 MHz 1.0Vrms
- Insulation Resistance: 100 GOhms
- Dimensions: Diameter 2.41mm MAX, Length 4.32mm MAX, F 0.51mm +0.025/-0.076mm, B 52.4mm +/-1.5mm
- RoHS Compliant: Yes
- Halogen Free: Yes
- Termination: Tin
- Packaging: T&R, 305mm, Quantity: 5000
Buy the KEMET Series AxiMax 400 Comm COG: C410C220J1G5TA7200
Enhance your electronic designs with the KEMET ceramic chip capacitor. Featuring a capacitance of 22 pF, 100 VDC voltage rating, and exceptional temperature stability from -55°C to +125°C, this component is perfect for high-frequency and precision applications. Its COG dielectric ensures low loss and high reliability, while RoHS and halogen-free compliance support eco-friendly manufacturing. The compact size and high insulation resistance make it ideal for space-constrained circuits requiring consistent performance.
Buy KEMET C410C220J1G5TA7200 ceramic capacitor now and experience reliable high-frequency stability and excellent thermal performance.
Frequently Asked Questions
Where can I buy KEMET C410C220J1G5TA7200?
You can click on the BUY or RFQ button to purchase C410C220J1G5TA7200 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part C410C220J1G5TA7200?
You can download the C410C220J1G5TA7200 datasheet or visit the KEMET website for support.
Who is the manufacturer of C410C220J1G5TA7200?
KEMET
