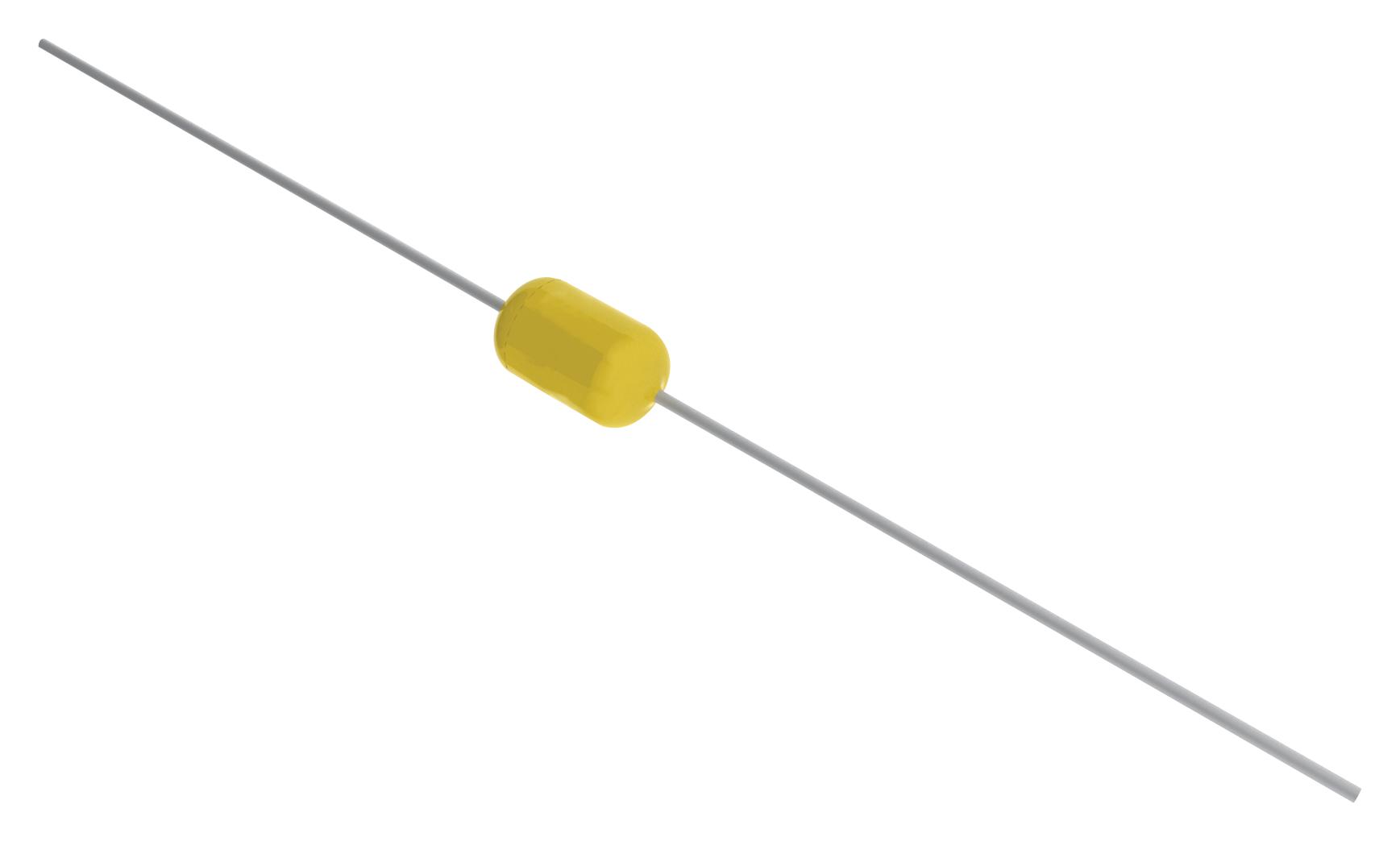

KEMET C410C472J1G5TA91707200 Automotive Ceramic Capacitor
The KEMET C410C472J1G5TA91707200 is a multilayer ceramic capacitor (MLCC) designed specifically for automotive applications. It utilizes KEMET's AxiMax 400 Auto C0G dielectric, providing excellent stability and low dissipation factor over a wide temperature range. Qualified to AEC-Q200 standards, this capacitor ensures high reliability in automotive circuits such as power supplies, DC-DC converters, and signal filtering. Its compact size and robust construction make it suitable for space-constrained applications.
KEMET C410C472J1G5TA91707200 Automotive Ceramic Capacitor Specifications:
- Series: AxiMax 400 Auto C0G
- Description: Automotive Grade
- Features: Automotive Grade
- RoHS: Yes
- Termination: Tin
- Qualifications: AEC-Q200
- AEC-Q200: Yes
- Halogen Free: Yes
- Capacitance: 4700 pF
- Measurement Condition: 1 MHz 1.0Vrms
- Capacitance Tolerance: 5%
- Voltage DC: 100 VDC
- Dielectric Withstanding Voltage: 250 VDC
- Temperature Range: -55/+125°C
- Temperature Coefficient: C0G
- Capacitance Change with Reference to +25°C and 0 VDC Applied(TCC): 30PPM/C, 1kHz 1.0Vrms
- Dissipation Factor: 0.1% 1 MHz 1.0Vrms
- Aging Rate: 0% Loss/Decade Hour
- Insulation Resistance: 100 GOhms
- Dimensions D: 2.41mm MAX
- Dimensions L: 4.32mm MAX
- Dimensions F: 0.51mm +0.025/-0.076mm
- Dimensions B: 52.4mm +/-1.5mm
- Packaging: T&R, 305mm
- Packaging Quantity: 5000
