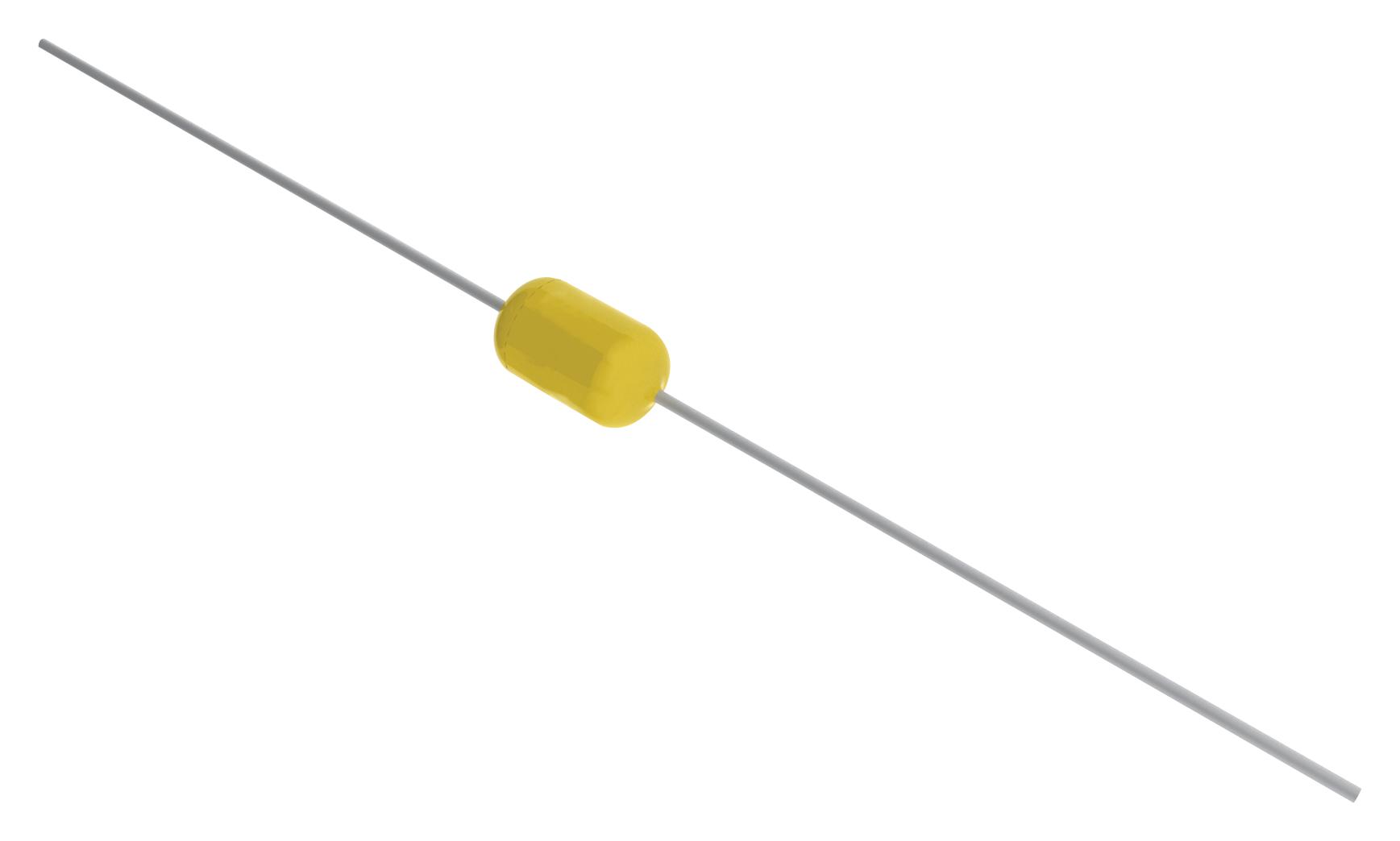

KEMET C430C474K5N5TA9170 Automotive Ceramic Capacitor
This ceramic capacitor features a 0.47 microfarad capacitance with a 10% tolerance, rated for 50V DC, and designed for automotive applications. The X8L dielectric provides stability across a temperature range of -55°C to +150°C, suitable for demanding automotive environments. It has a compact size with dimensions of approximately 3.81mm x 6.1mm x 25.4mm, with tin termination and RoHS compliance. Ideal for high reliability circuits, this capacitor offers low dissipation factors, high insulation resistance, and excellent dielectric strength, making it a reliable choice for automotive electronics.
KEMET C430C474K5N5TA9170 Automotive Ceramic Capacitor Specifications:
- Capacitance: 0.47 uF
- Capacitance Tolerance: 10%
- Voltage Rating: 50 VDC
- Dimensions: Length 3.81mm MAX, Width 6.1mm MAX, Height 25.4mm MIN
- Temperature Range: -55°C to +150°C
- Dielectric: X8L
- Termination: Tin
- RoHS Compliant: Yes
- AEC-Q200 qualified
- Dissipation Factor: 2.5% at 1 MHz 1.0Vrms
- Insulation Resistance: 2.13 GOhms
- Packaging: Bulk, Bag
- Packaging Quantity: 200
- Aging Rate: 0% Loss/Decade Hour
- Dielectric Withstanding Voltage: 195 yng
- Measurement Condition: 1 MHz, 1.0Vrms
Buy the KEMET C430C474K5N5TA9170 – Reliable Automotive Ceramic Capacitor for Industrial Applications
Purchase the KEMET automotive ceramic capacitor C430C474K5N5TA9170 online today. engineered for high reliability, this 0.47uF capacitor rated for 50V DC features X8L dielectric, compact dimensions, and high-temperature stability up to +150°C. Its robust design ensures excellent insulation resistance, low dissipation factor, and compliance with RoHS and AEC-Q200 standards. Perfect for automotive electronic circuits needing stable performance, durability, and safety, this capacitor is ideal for demanding industrial and automotive applications where reliability is critical.
Get KEMET C430C474K5N5TA9170 today—built for automotive precision and long-lasting durability in industrial circuits.
Frequently Asked Questions
Where can I buy KEMET C430C474K5N5TA9170?
You can click on the BUY or RFQ button to purchase C430C474K5N5TA9170 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part C430C474K5N5TA9170?
You can download the C430C474K5N5TA9170 datasheet or visit the KEMET website for support.
Who is the manufacturer of C430C474K5N5TA9170?
KEMET
