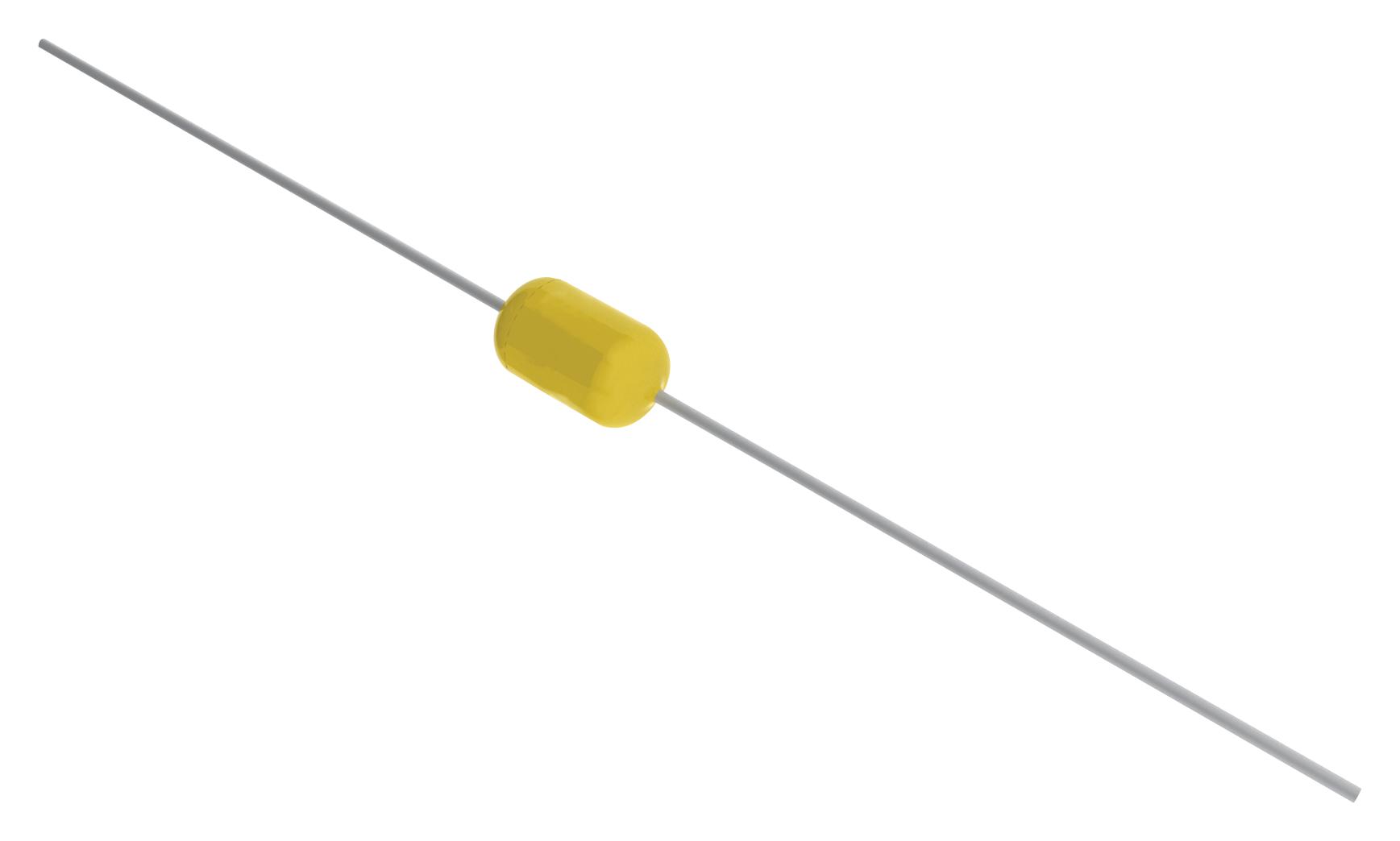

KEMET C440C474M5U5TA7200 ceramic capacitor
This ceramic capacitor from KEMET's AxiMax 400 series offers 0.47 microfarads capacitance, with a dielectric of Z5U and a voltage rating of 50 VDC. Designed for commercial applications, it features a compact size with dimensions up to 3.1mm in diameter and an operating temperature range between -10°C and +85°C. The capacitor is RoHS compliant, halogen free, and terminated with tin, making it suitable for various electronic circuits requiring reliable and stable performance in demanding environments.
KEMET C440C474M5U5TA7200 ceramic capacitor Specifications:
- Capacitance: 0.47 uF
- Capacitance Tolerance: 20%
- Voltage DC: 50 VDC
- Dimensions: Diameter up to 3.1mm
- Length: up to 66mm
- Dielectric: Z5U
- Temperature Range: -10°C to +85°C
- Dissipation Factor: 4% at 25°C
- Insulation Resistance: 210 MOhms
- Termination: Tin
- RoHS Compliant: Yes
- Halogen Free: Yes
- Aging Rate: 7% loss per decade hour
Buy the Buy KEMET Ceramic Capacitor Part Number C440C474M5U5TA7200 Online
Purchase the KEMET ceramic capacitor, part number C440C474M5U5TA7200, which delivers 0.47 microfarads capacitance at 50 VDC. Featuring Z5U dielectric, it is suitable for various commercial electronics, offering exceptional stability and durability. Its compact size, RoHS compliance, and tin termination ensure reliable performance in demanding environments. Perfect for applications requiring high insulation resistance, low loss, and temperature stability, this capacitor is an essential component for engineers and technicians seeking quality and precision in electronic device manufacturing.
Get KEMET C440C474M5U5TA7200 today—built for reliable performance in commercial electronic circuits with stability and long-lasting durability.
Frequently Asked Questions
Where can I buy KEMET C440C474M5U5TA7200?
You can click on the BUY or RFQ button to purchase C440C474M5U5TA7200 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part C440C474M5U5TA7200?
You can download the C440C474M5U5TA7200 datasheet or visit the KEMET website for support.
Who is the manufacturer of C440C474M5U5TA7200?
KEMET
