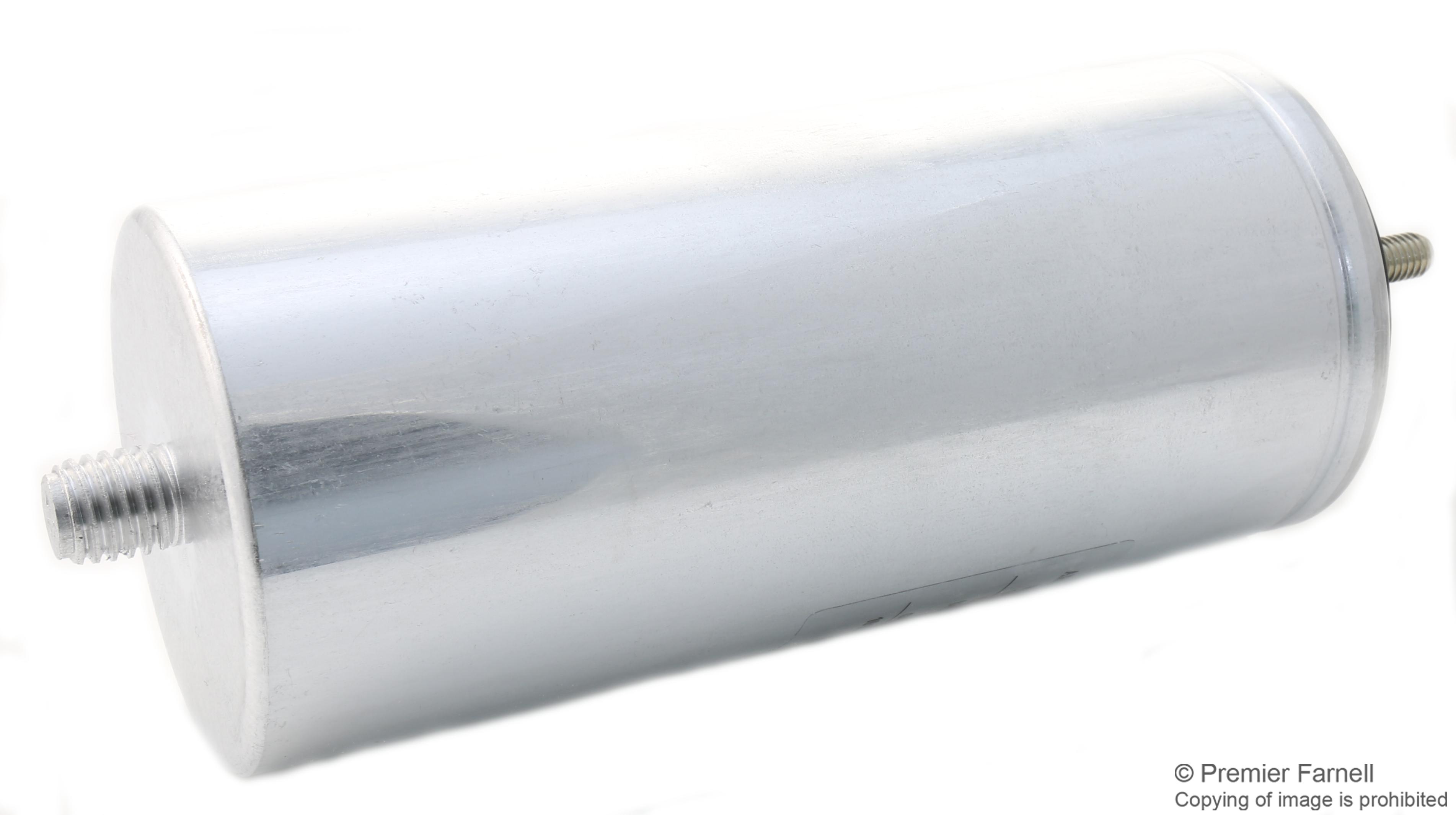

KEMET C44AHGP5400ZB0J Power Capacitor
The C44A series capacitor is a metallized polypropylene film power capacitor designed for high-voltage applications. It features a can style construction with a 40uF capacitance and a 5% tolerance. Suitable for AC voltage of 330 VAC and DC voltage of 600 VDC, it offers a temperature range of -40°C to +85°C. With a thermal resistance of 8°C/W, bolt mounting with M12x12.5 rated temperature up to 70°C, and a weight of 375g, this capacitor is ideal for power electronic systems requiring reliable, high-performance components.
KEMET C44AHGP5400ZB0J Power Capacitor Specifications:
- Dielectric: Metallized Polypropylene
- Capacitance: 40 uF
- Tolerance: 5%
- Voltage AC: 330 VAC
- Voltage DC: 600 VDC
- Dimensions: Diameter 60mm ±0.5mm
- Temperature Range: -40°C to +85°C
- Mounting: Bolt - M12x12.5
- Thermal Resistance: 8°C/W
- Component Weight: 375g
- Ripple Current: 25 Amps, Peak 1200 Amps
- Resistance: 2 mOhms (TYP)
- Packaging: Bulk, Bag (Max dVidt: 30 V)
- Miscellaneous: RoHS exempt, REACH SVHC (Pb)
- Operating Temperature: Rated up to 70°C
Buy the Buy KEMET C44A Series Power Capacitor Part Number C44AHGP5400ZB0J Online
Purchase the KEMET C44A series power capacitor online today for high-voltage applications, offering 40uF capacitance at 330VAC and 600VDC. Its metallized polypropylene dielectric provides excellent durability and performance in power electronic systems, with a temperature range from -40°C to +85°C. Designed with M12 bolt mounting and a thermal resistance of 8°C/W, this capacitor ensures reliable operation highly suitable for industrial power supplies, motor drives, and power filtering, backed by fast worldwide shipping and trusted quality.
Order your KEMET Series C44AHGP5400ZB0J power capacitor today and ensure your electronic systems operate reliably with high-voltage performance.
Frequently Asked Questions
Where can I buy KEMET C44AHGP5400ZB0J?
You can click on the BUY or RFQ button to purchase C44AHGP5400ZB0J from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part C44AHGP5400ZB0J?
You can download the C44AHGP5400ZB0J datasheet or visit the KEMET website for support.
Who is the manufacturer of C44AHGP5400ZB0J?
KEMET
