KEMET C44PLGR6100RASJ Power Film Capacitor
The C44P-R is a metallized polypropylene film capacitor designed for AC filtering applications with a capacitance of 100 uF, rated at 330 VAC and 700 VDC. It features a compact can style with threaded M10 studs for secure mounting, and its thermal resistance is 8.5°C/W. Suitable for single-phase power factor correction, it operates within -25°C to +70°C temperatures, ensuring reliable performance in industrial and electronic power systems. Its robust construction and high voltage ratings make it ideal for demanding AC filter applications.
KEMET C44PLGR6100RASJ Power Film Capacitor Specifications:
- Capacitance: 100 uF
- Capacitance Tolerance: 5%
- Voltage AC: 330 VAC
- Voltage DC: 700 VDC
- Dimensions: Diameter 65mm ±0.5mm, Height 40mm ±2mm
- Lead: Threaded M10 studs
- Temperature Range: -25°C to +70°C
- Rated Temperature: 70°C
- Resistance: 2.3 mOhms at 10kHz
- Ripple Current: 25 Amps at 10kHz
- Thermal Resistance: 8.5°C/W
- Inductance: 115 nH
- Mounting: Bolt - M12x16 maximum diameter

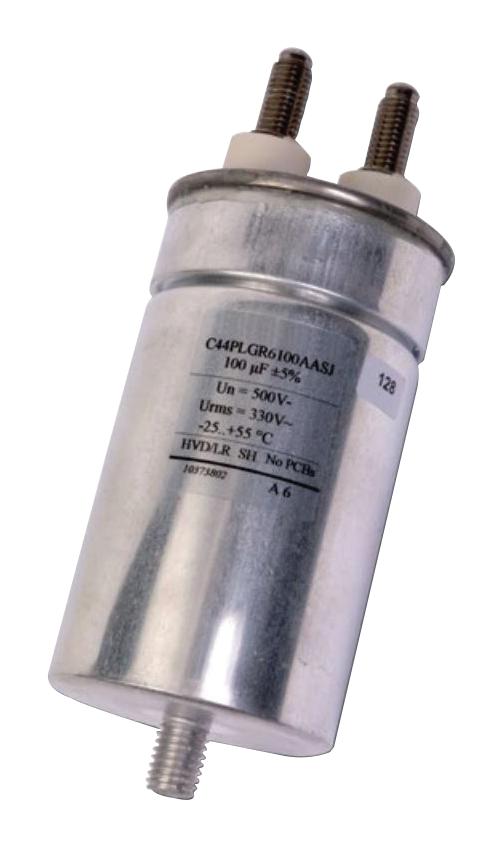

Buy the Buy KEMET Film Capacitor Part Number C44PLGR6100RASJ Online
Purchase the KEMET Series C44PLGR6100RASJ high-voltage film capacitor online today. Designed for AC filtering, it offers 100 uF capacitance, 330 VAC rating, and 700 VDC, with threaded M10 studs for secure installation. Its compact design makes it suitable for single-phase power correction in industrial and electronic systems. With a thermal resistance of 8.5°C/W, it ensures efficient heat dissipation, reliable operation within -25°C to +70°C, and robust performance under demanding operating conditions.
Order your KEMET SeriesC44PLGR6100RASJ high-voltage film capacitor today and ensure reliable power filtering with robust construction and excellent performance.
Frequently Asked Questions
Where can I buy KEMET C44PLGR6100RASJ?
You can click on the BUY or RFQ button to purchase C44PLGR6100RASJ from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part C44PLGR6100RASJ?
You can download the C44PLGR6100RASJ datasheet or visit the KEMET website for support.
Who is the manufacturer of C44PLGR6100RASJ?
KEMET
