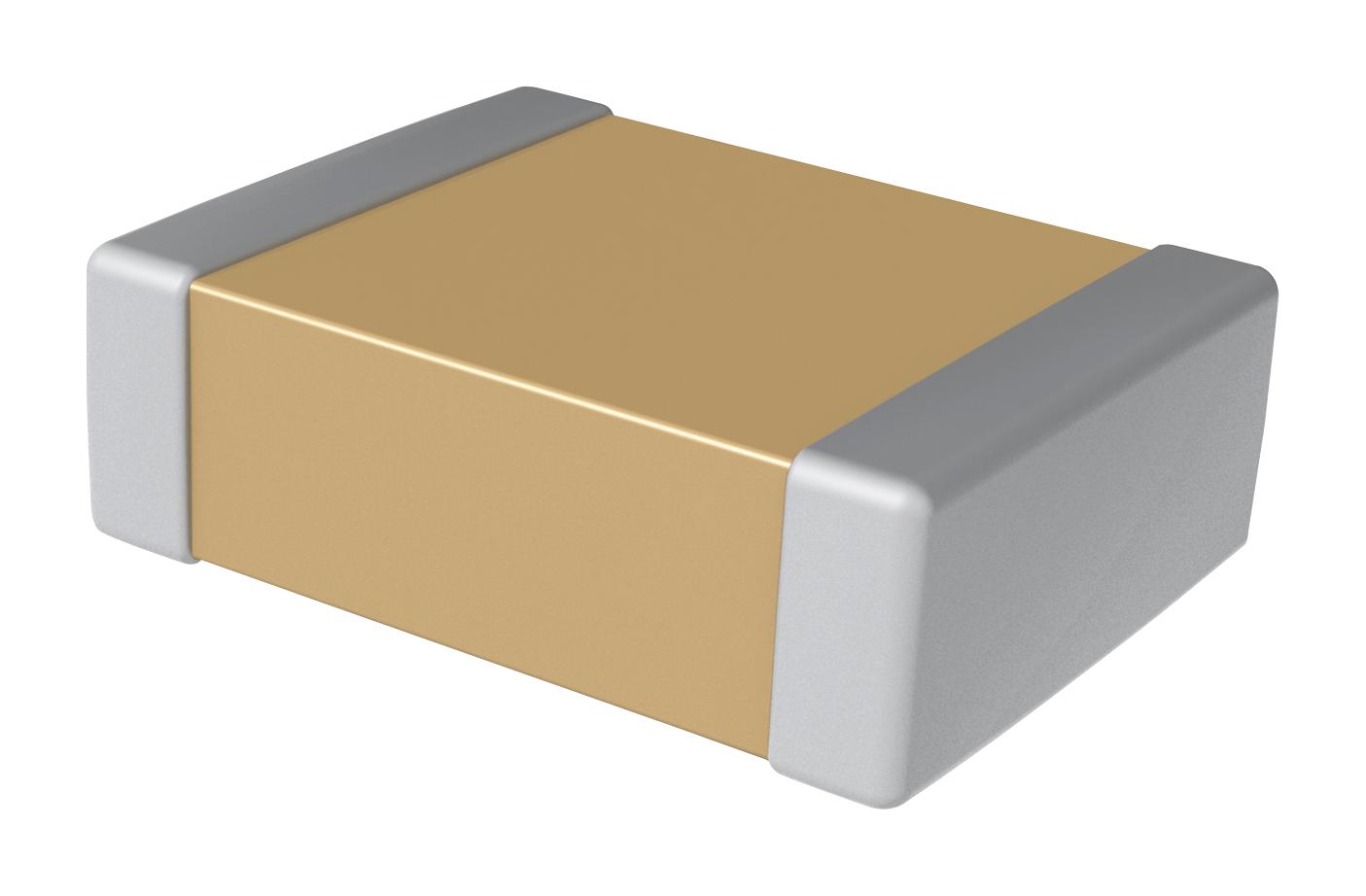

KEMET CBR04C689B1GAC Ceramic Capacitor
The CBR series SMD multilayer ceramic capacitor features a C0G dielectric, offering extremely low ESR and high self-resonance frequency, ideal for resonant circuits and stable applications. It ensures negligible capacitance variation over time, voltage, and temperature, making it highly reliable. With ultra-high Q, thermal stability, and excellent performance from 1 MHz to 50 GHz, it supports voltages from 6.3V to 500V and capacitance ranging from 0.1pF to 100pF. Suitable for high-frequency, RF, and precision electronic designs requiring stable, low-loss components.
KEMET CBR04C689B1GAC Ceramic Capacitor Specifications:
- Capacitance: 6.8 pF
- Capacitance Tolerance: +/-0.1 pF
- Voltage DC: 100 VDC
- Dielectric Withstanding Voltage: 250 VDC
- Temperature Range: -55/+125°C
- Dielectric: C0G
- Dissipation Factor: 0.187%
- Quality Factor: 536
- Insulation Resistance: 10 GOhms
- Dimensions: Chip Size 0402, Length 0.25mm +0.05/-0.1mm, Width 0.5mm +0.05/-0.05mm
- RoHS Compliant: Yes
- Termination: Tin
- Shelf Life: 78 Weeks
- Package: T&R, 180mm, Plastic Tape
- Quantity per Reel: 10,000
- Operating Temperature: -55°C to +125°C
- Features: Ultra High Q, Low ESR, High SRF, Stable Capacitance
- High Frequency Range: 1 MHz to 50 GHz
Buy the Buy YAGEO CBR Series CBR04C689B1GAC Part Number 689B1GAC Online
Enhance your electronic projects with the YAGEO ceramic capacitor Series CBR04C689B1GAC, featuring ultra-high Q, low ESR, and exceptional stability for RF, resonant circuits, and high-frequency applications. This robust SMD component provides reliable performance up to 100 VDC, making it ideal for precision and high-frequency designs. With a compact 0402 size, high insulation resistance, and thermal stability, it ensures long-term durability. Purchase online now for fast delivery, competitive prices, and the quality assured by YAGEO's global reputation.
Order your YAGEO Series CBR04C689B1GAC ceramic capacitor today and experience reliable, high-frequency stability for your complex RF and resonant circuit projects.
Frequently Asked Questions
Where can I buy KEMET CBR04C689B1GAC?
You can click on the BUY or RFQ button to purchase CBR04C689B1GAC from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part CBR04C689B1GAC?
You can download the CBR04C689B1GAC datasheet or visit the KEMET website for support.
Who is the manufacturer of CBR04C689B1GAC?
KEMET
