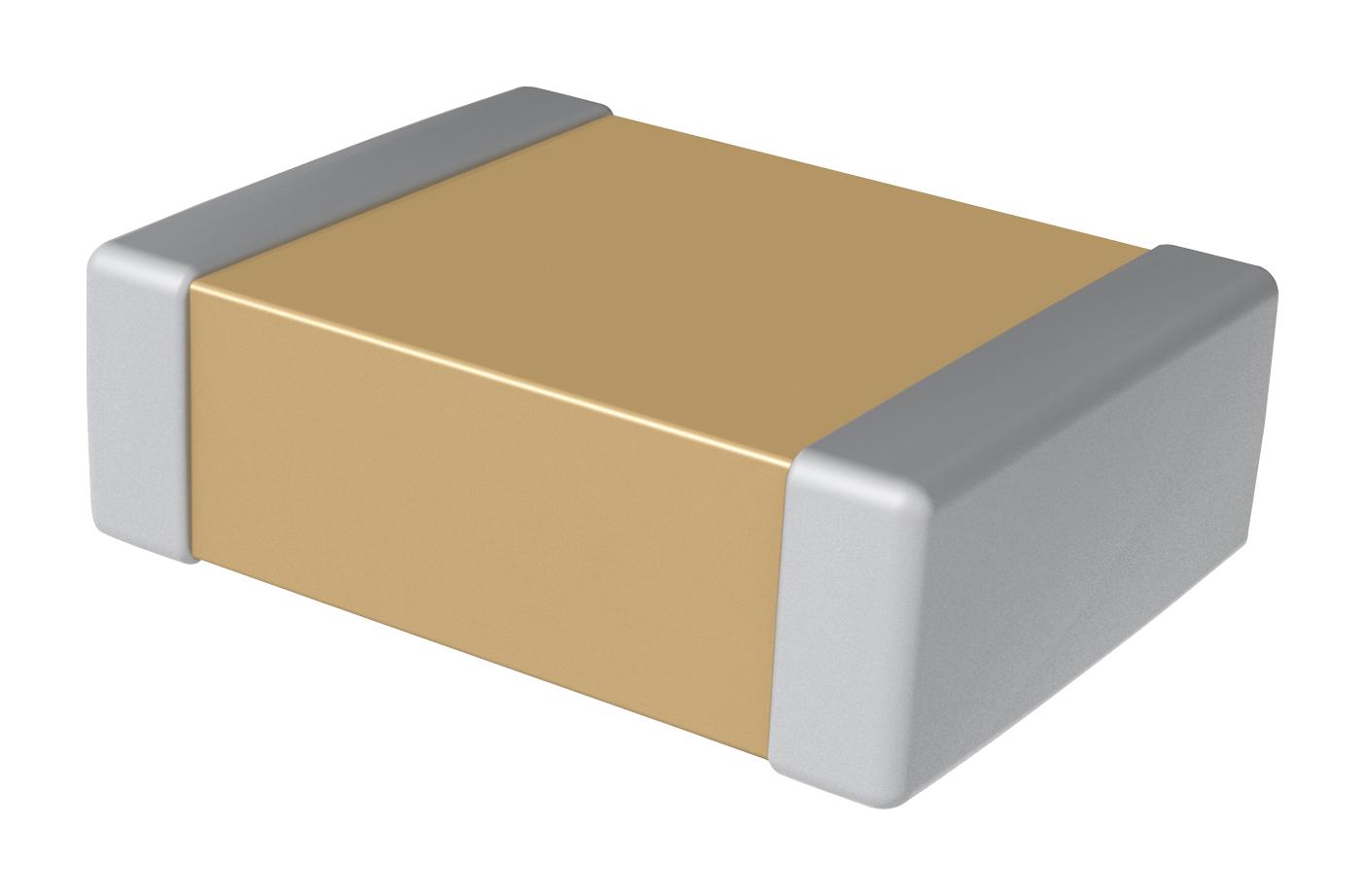

KEMET CBR04C829B1GAC RF Ceramic Capacitor
The CBR series SMD multilayer ceramic capacitor features a C0G dielectric with a robust and stable base metal electrode system. It offers extremely low ESR and high self-resonance frequency, making it ideal for resonant circuits requiring stable capacitance and high Q-factor. This capacitor maintains consistent capacitance over temperature, voltage, and time, providing ultra-high Q and thermal stability. Suitable for applications from 1MHz to 50GHz, it comes in sizes 0201, 0402, 0603, and 0805, with voltage ratings up to 500V and capacitance from 0.1pF to 100pF.
KEMET CBR04C829B1GAC RF Ceramic Capacitor Specifications:
- Capacitance: 8.2 pF
- Capacitance Tolerance: +/-0.1 pF
- Voltage DC: 100 VDC
- Dielectric Withstanding Voltage: 250 VDC
- Temperature Range: -55°C to +125°C
- Package: T&R, 180mm, Plastic Tape
- Chip Size: 0402
- Dimensions: Length approximately 1.0 mm, Width approximately 0.5 mm, Tolerance +/-0.05 mm
- Dissipation Factor: 0.177%
- Quality Factor (Q): 564
- Insulation Resistance: 10 GOhms
- Temperature Coefficient: COG
- RoHS Compliant: Yes
- Termination: Tin
- Shelf Life: 78 weeks
- Operating Frequency Range: 1 MHz to 50 GHz
Buy the KEMET Series CBR COG Capacitor: CBR04C829B1GAC
Secure your supply of high-quality RF ceramic capacitors with KEMET's CBR series. Designed for stability, high Q, and low ESR, this 8.2 pF capacitor ensures reliable performance in RF applications, resonant circuits, and high-frequency electronics. Easy to integrate with consistent performance over temperature and voltage variations. Purchase online today to benefit from fast delivery, certified quality, and superior performance for your advanced electronic designs and high-frequency circuits.
Buy KEMET CBR04C829B1GAC now and experience unmatched reliability and performance with ultra-high Q, low ESR, and stable capacitance for RF and resonant circuits.
Frequently Asked Questions
Where can I buy KEMET CBR04C829B1GAC?
You can click on the BUY or RFQ button to purchase CBR04C829B1GAC from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part CBR04C829B1GAC?
You can download the CBR04C829B1GAC datasheet or visit the KEMET website for support.
Who is the manufacturer of CBR04C829B1GAC?
KEMET
