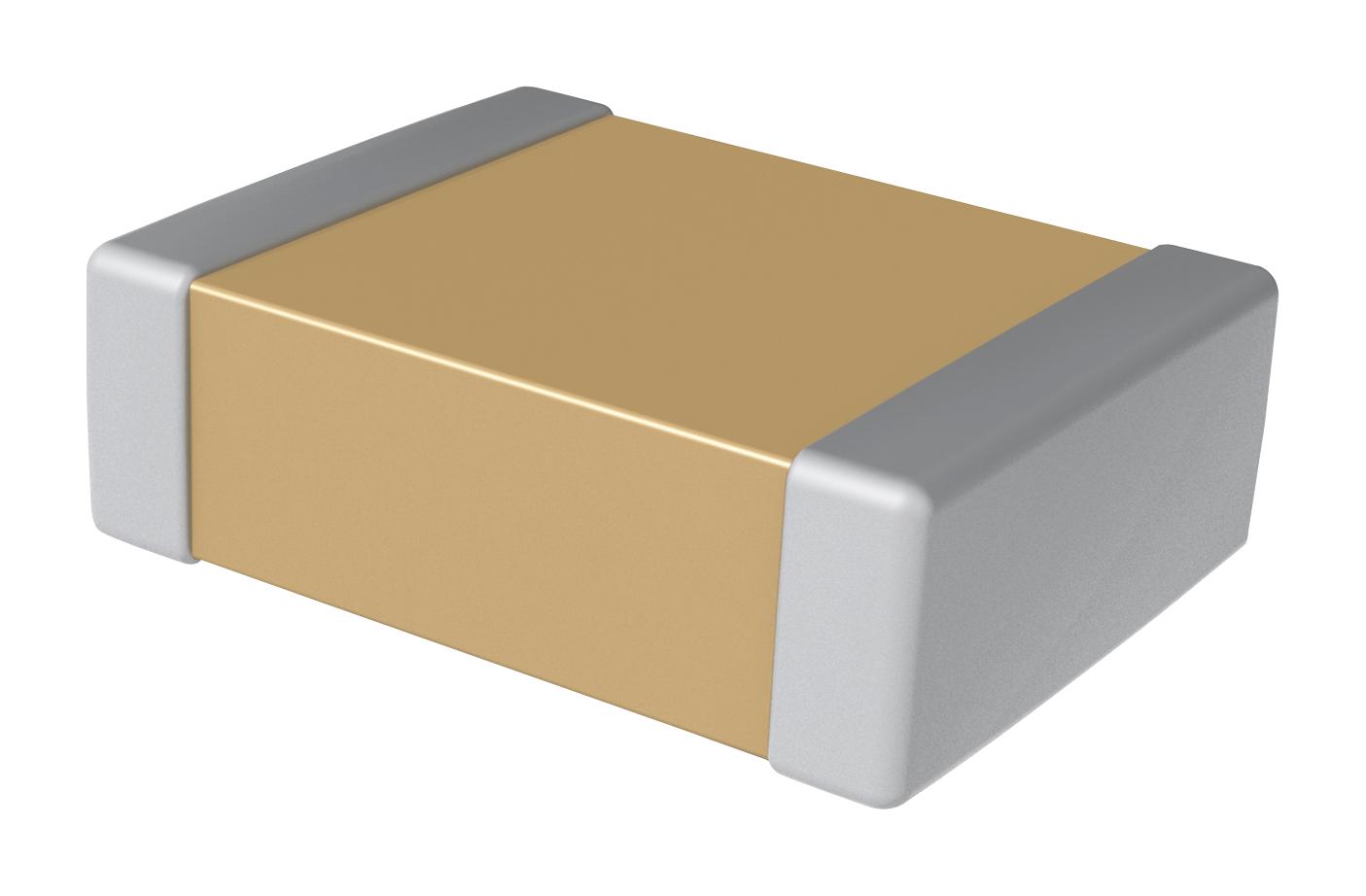

KEMET CBR06C120FAGAC RF Ceramic Capacitor
The CBR series SMD multilayer ceramic capacitor with C0G dielectric features a robust base metal electrode dielectric system, offering excellent stability and low loss. It provides extremely low equivalent series resistance (ESR) and high self-resonance frequency, making it ideal for resonant circuit applications where capacitance stability and Q factor are important. The capacitor maintains a stable capacitance over time, with negligible variation due to voltage and temperature changes. Available in various sizes including 0201, 0402, 0603, and 0805, it supports voltage ratings from 6.3V to 500V and capacitance values from 0.1pF to 100pF, suitable for frequencies ranging from 1MHz to 50GHz.
KEMET CBR06C120FAGAC RF Ceramic Capacitor Specifications:
- Capacitance: 12 pF
- Capacitance Tolerance: 1%
- Voltage Rating: 250 VDC
- Dielectric: C0G (NP0)
- Dimensions: Length 1.6mm, Width 0.8mm, Thickness 0.4mm
- Temperature Range: -55°C to +125°C
- Dissipation Factor: 0.156%
- Insulation Resistance: 10 GOhms
- Quality Factor: 640
- Terminations: Tin
- Shelf Life: 78 Weeks
- MLCC Type: RF SMD COG
- RoHS Compliant: Yes
- Package: T&R, 180mm, Plastic Tape
- Maximum Dielectric Withstanding Voltage: 500 VDC
Buy the Buy KEMET CBR Series Capacitor Part Number CBR06C120FAGAC Online
Order the KEMET CBR series RF ceramic capacitor online today and enjoy quick delivery. This high stability, low ESR capacitor is ideal for RF resonant circuits, supporting voltages up to 250VDC and capacitance of 12pF. Perfect for high-frequency applications with excellent stability, high Q factor, and low loss. Easy to install with tin terminations, it operates reliably over a wide temperature range from -55°C to +125°C. Enhance your electronic designs by purchasing this premium ceramic capacitor now.
Buy KEMET CBR06C120FAGAC now and experience unmatched reliability and high Q factor for RF and resonant circuit applications.
Frequently Asked Questions
Where can I buy KEMET CBR06C120FAGAC?
You can click on the BUY or RFQ button to purchase CBR06C120FAGAC from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part CBR06C120FAGAC?
You can download the CBR06C120FAGAC datasheet or visit the KEMET website for support.
Who is the manufacturer of CBR06C120FAGAC?
KEMET
