KEMET CBR06C159BAGAC RF Ceramic Capacitor
This high-quality RF chip capacitor features a ceramic COG dielectric with a capacitance of 1.5 pF and a tolerance of ±0.1 pF. Designed for ultra-high Q and low ESR, it supports a voltage of 250 VDC and operates within a temperature range of -55°C to +125°C. The 0603 size makes it suitable for compact RF and microwave applications such as filters, tuners, and impedance matching networks. It is RoHS compliant, tin-terminated, and ideal for surface-mount technology to ensure reliable, high-frequency performance in demanding electronic circuits.
KEMET CBR06C159BAGAC RF Ceramic Capacitor Specifications:
- Series: CBR-SMD RF COG
- Style: SMD Chip
- Dimensions: Length 1.6mm +/-0.1mm, Width 0.8mm +/-0.1mm, Height 0.4mm +/-0.15mm
- Capacitance: 1.5 pF
- Capacitance Tolerance: ±0.1 pF
- Voltage: 250 VDC
- Dielectric Withstanding Voltage: 500 VDC
- Temperature Range: -55°C to +125°C
- Dissipation Factor: 0.233%
- Insulation Resistance: 10 GΩ
- Quality Factor: 430
- RoHS Compliant: Yes
- Termination: Tin
- Shelf Life: 78 Weeks
- Packaging: T&R, 180mm, Plastic Tape
- Packaging Quantity: 4000
- MSL: 1
- Notes: Suitable for Solder Wave or Reflow

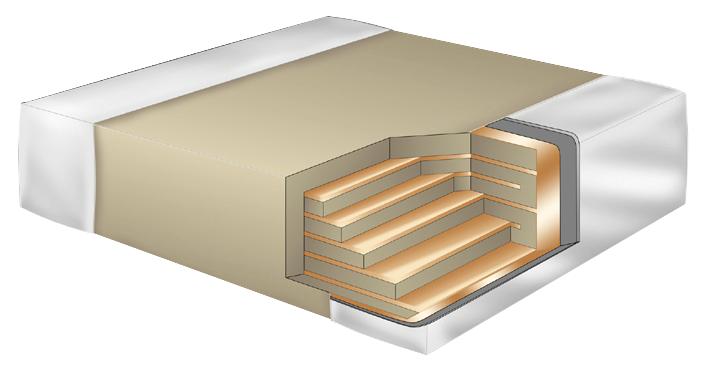

Buy the Buy KEMET RF COG Part Number CBR6C159BAGAC Online
Purchase the KEMET RF Ceramic Capacitor, part number CBR6C159BAGAC, online today for superior RF performance. This 1.5 pF, 250 VDC, surface-mount capacitor in a compact 0603 size offers ultra high Q, low ESR, and wide temperature tolerance. Ideal for high-frequency circuits, filters, and impedance matching networks, it guarantees durability and reliability. The RoHS compliant design supports SMD assembly processes such as reflow and wave soldering. Secure your electronic projects with this high-quality, compact RF capacitor available with fast shipping and excellent customer support.
Get KEMET CBR6C159BAGAC today—engineered for high-frequency RF applications with ultra high Q and low ESR for reliable performance.
Frequently Asked Questions
Where can I buy KEMET CBR06C159BAGAC?
You can click on the BUY or RFQ button to purchase CBR06C159BAGAC from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part CBR06C159BAGAC?
You can download the CBR06C159BAGAC datasheet or visit the KEMET website for support.
Who is the manufacturer of CBR06C159BAGAC?
KEMET
