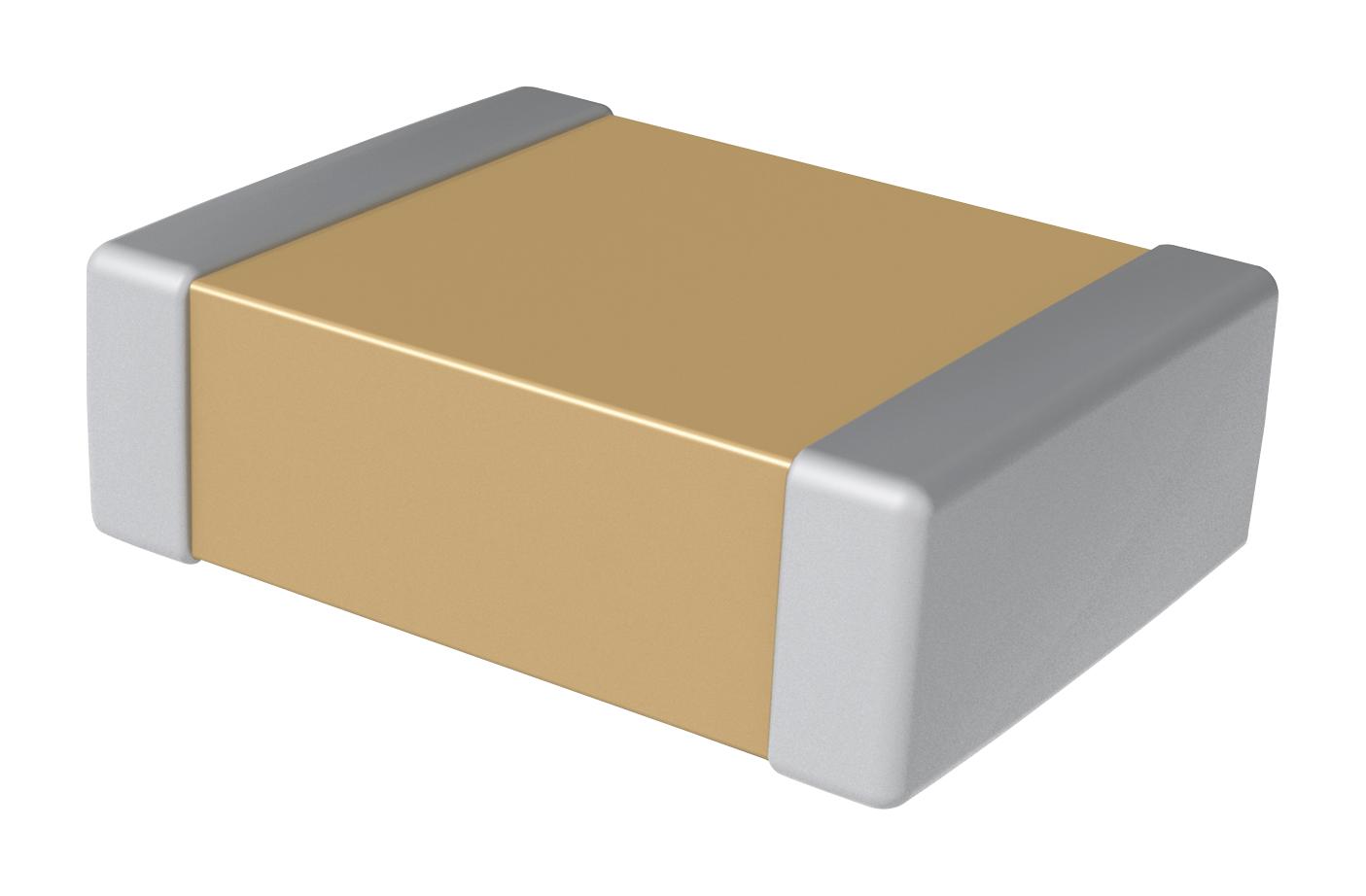

KEMET CBR06C160FAGAC Ceramic Capacitor
The CBR series SMD multilayer ceramic capacitor features a C0G dielectric offering stable, reliable performance with low ESR and high self-resonance frequency. It’s ideal for resonant circuits and high Q applications, maintaining consistent capacitance over time and voltage with negligible temperature effect. Available in 0603 size, it supports voltages up to 250VDC and capacitance of 16pF with 1% tolerance. Its robust design ensures high thermal stability and low loss, suitable for high-frequency RF and precision electronic circuits, providing dependable performance in demanding applications.
KEMET CBR06C160FAGAC Ceramic Capacitor Specifications:
- Dimensions: 0603 chip, Length 1.6mm ±0.1mm, Width 0.8mm ±0.1mm, Thickness 0.4mm ±0.15mm
- Capacitance: 16 pF with 1% tolerance
- Voltage Rating: 250 VDC, Dielectric withstand: 500 VDC
- Dielectric: C0G/NP0 ceramic dielectric
- Dissipation Factor: 0.139%
- Insulation Resistance: 10 GOhms
- Temperature Range: -55°C to +125°C
- Quality Factor: 720, Self-Resonance Frequency: High, ESR: Ultra High Q
- RoHS Compliant: Yes, Termination: Tin, MSL: 1, Packaging: T&R, 180mm plastic tape, Quantity: 4000 units
Buy the Buy KEMET CBR Series Ceramic Capacitor Part Number CBR06C160FAGAC Online
Purchase the KEMET CBR series ceramic capacitor CBR06C160FAGAC online today. Designed with a C0G dielectric, it offers outstanding stability, low ESR, and a high self-resonance frequency. Ideal for RF, resonant circuits, and high-precision applications, this 16pF, 250VDC part provides dependable, stable performance across a temperature range of -55°C to +125°C. With a compact 0603 size, RoHS compliance, and tin termination, it ensures durability and minimal loss. Secure yours now for seamless integration into your electronics projects. Reliable quality guaranteed.
Order your KEMET Series CBR06C160FAGAC ceramic capacitor today and ensure high Q and reliable performance for RF and high-frequency circuits.
Frequently Asked Questions
Where can I buy KEMET CBR06C160FAGAC?
You can click on the BUY or RFQ button to purchase CBR06C160FAGAC from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part CBR06C160FAGAC?
You can download the CBR06C160FAGAC datasheet or visit the KEMET website for support.
Who is the manufacturer of CBR06C160FAGAC?
KEMET
