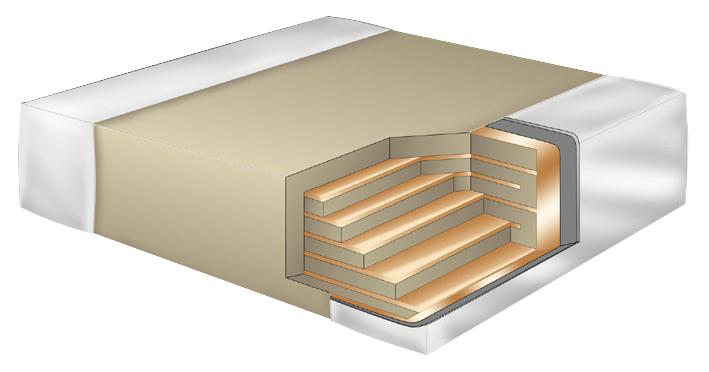

KEMET CBR06C240JAGAC RF Ceramic Capacitor
The KEMET CBR-SMD RF COG is a high-quality 0603 ceramic chip capacitor designed for RF applications. With a capacitance of 24 pF and a tolerance of 5%, it features ultra-high Q and low ESR for optimal RF performance. Rated at 250 VDC, it supports voltages up to 500 VDC with a dielectric withstand of 500 VDC. Its compact size, RoHS compliance, and solder reflow capability make it suitable for modern surface-mount designs in high-frequency circuits, ensuring excellent insulation resistance and stability over temperature ranges from -55°C to +125°C.
KEMET CBR06C240JAGAC RF Ceramic Capacitor Specifications:
- Series: CBR-SMD RF COG
- Style: SMD Chip
- Dimensions: Length 1.6mm +/-0.1mm, Width 0.8mm +/-0.1mm, Thickness 0.4mm +/-0.15mm
- Capacitance: 24 pF
- Capacitance Tolerance: 5%
- Voltage: 250 VDC, Dielectric Withstanding Voltage 500 VDC
- Temperature Range: -55°C to +125°C
- Dissipation Factor: 0.114%
- Insulation Resistance: 10 GOhms
- Quality Factor: 880
- RoHS: Yes
- Termination: Tin
- Packaging: T&R, 180mm, Plastic Tape, Quantity: 4000
- Shelf Life: 78 Weeks
- MSL: 1
Buy the KEMET CBR06C240JAGAC – Reliable RF Ceramic Capacitor for Industrial Applications
Order the KEMET CBR06C240JAGAC RF ceramic capacitor online now to ensure your high-frequency circuits perform reliably. Designed with ultra-high Q and low ESR, this SMD chip offers 24 pF capacitance, 250 VDC voltage rating, and excellent thermal stability from -55°C to +125°C. Its compact 0603 size fits easily into modern surface-mount designs, making it perfect for RF filters, oscillators, and tuning circuits. Purchase now for quick delivery, premium quality, and dependable performance in demanding applications.
Get KEMET CBR06C240JAGAC today—built for high-frequency stability and long-lasting durability.
Frequently Asked Questions
Where can I buy KEMET CBR06C240JAGAC?
You can click on the BUY or RFQ button to purchase CBR06C240JAGAC from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part CBR06C240JAGAC?
You can download the CBR06C240JAGAC datasheet or visit the KEMET website for support.
Who is the manufacturer of CBR06C240JAGAC?
KEMET
