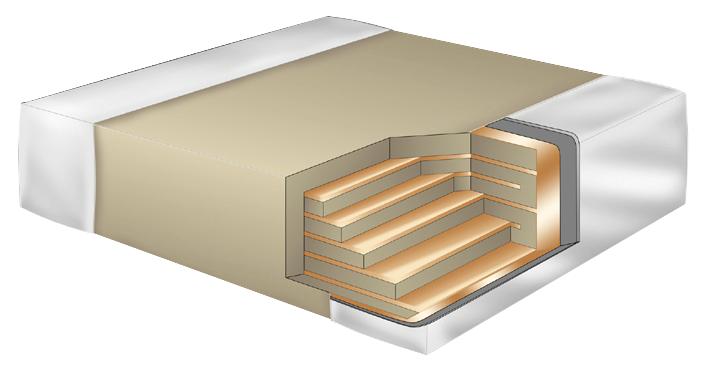

KEMET CBR06C470JAGAC RF Capacitor
The KEMET CBR-SMD RF COG is a high-quality ceramic chip capacitor with a capacitance of 47 pF and a 5% tolerance. Designed for RF applications, it features ultra-high Q and low ESR for optimal performance in high-frequency circuits. The 0603 size compact SMD package measures 1.6mm by 0.8mm, with a voltage rating of 250 VDC and dielectric withstand voltage of 500 VDC. Its temperature range spans -55°C to +125°C, and it is RoHS compliant, suitable for solder wave or reflow manufacturing processes, making it ideal for precision RF filtering and tuning circuits.
KEMET CBR06C470JAGAC RF Capacitor Specifications:
- Size: 0603 (1.6mm x 0.8mm)
- Capacitance: 47 pF
- Capacitance Tolerance: 5%
- Voltage Rating: 250 VDC
- Dielectric Withstand Voltage: 500 VDC
- Temperature Range: -55°C to +125°C
- Dissipation Factor: 0.1%
- Insulation Resistance: 10 GOhms
- Quality Factor: 1000
- Terminations: Tin plated
- RoHS compliant: Yes
- Packaging: T&R, 180mm plastic tape, quantity 4000
- Notes: Suitable for solder wave or reflow, shelf life is 78 weeks
Buy the Buy KEMET RF Capacitor Part Number CBR06C470JAGAC Online
Order the KEMET CBR06C470JAGAC RF Capacitor online today to enhance your RF circuitry with reliable performance. This 47 pF ceramic SMD component offers low ESR, ultra-high Q, and a 250 VDC rating, making it perfect for high-frequency applications. Its compact 0603 size allows easy integration into densely packed circuits. Built with RoHS compliance and suitable for solder reflow and wave soldering processes, this capacitor ensures durability, stability, and optimal performance in your RF filter, tuning, or matching applications. Purchase now for fast delivery and quality assurance.
Get KEMET CBR06C470JAGAC today—designed for high-frequency RF filtering and precision tuning with ultra high Q and low ESR.
Frequently Asked Questions
Where can I buy KEMET CBR06C470JAGAC?
You can click on the BUY or RFQ button to purchase CBR06C470JAGAC from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part CBR06C470JAGAC?
You can download the CBR06C470JAGAC datasheet or visit the KEMET website for support.
Who is the manufacturer of CBR06C470JAGAC?
KEMET
