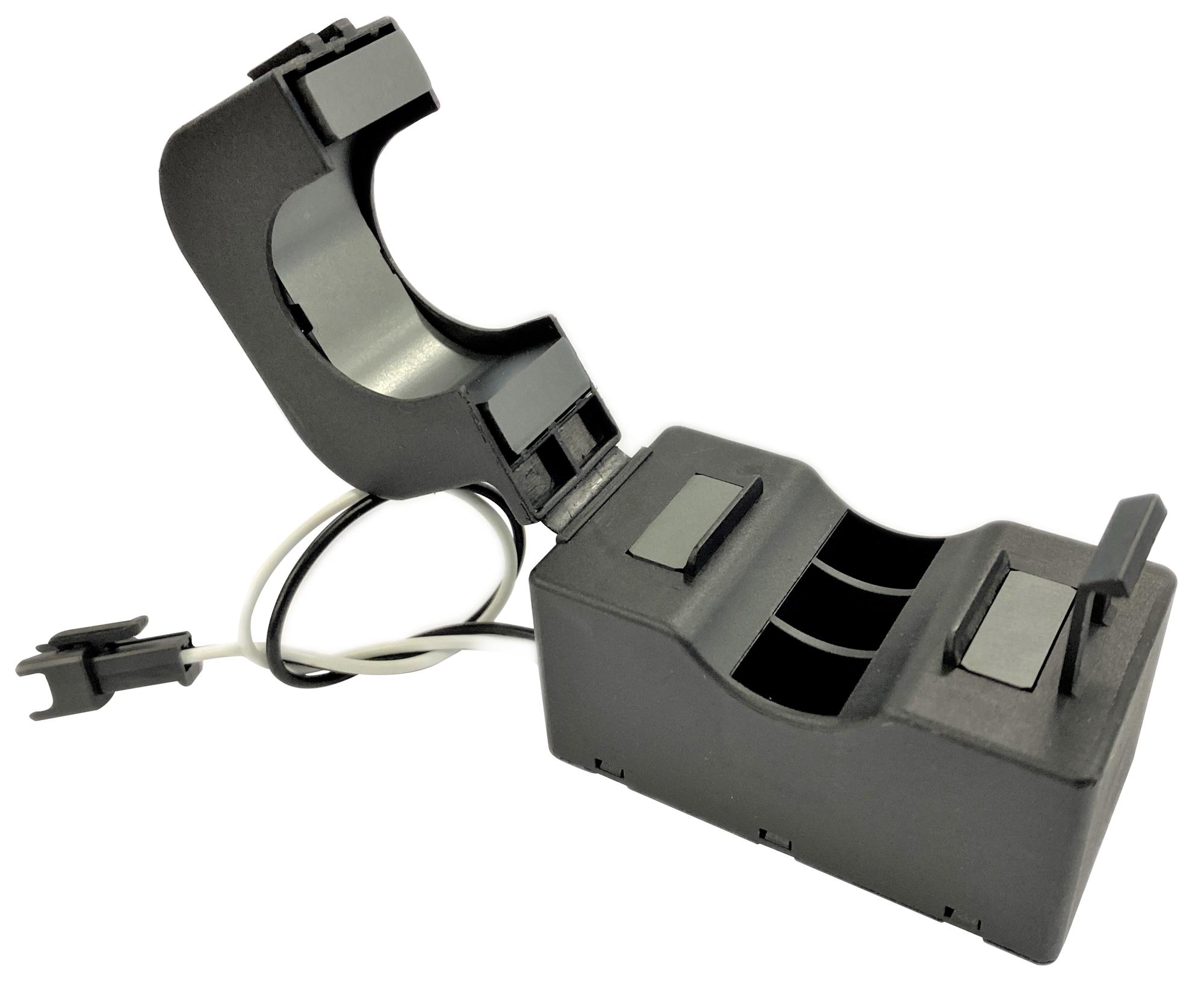

KEMET CCT2524 High Current Clamp Sensor
High current AC clamp-on sensors designed for precise current measurement in industrial and electrical systems. These compact, slim sensors feature flat temperature characteristics, are UL94V-0 flame retardant, and RoHS compliant, suitable for EMS, power distribution, inverters, and monitoring applications. They offer rugged construction, easy snap-on installation, and reliable performance for measuring currents up to 250A with output voltages up to 1250 mV, ensuring safety and accuracy in high-current environments.
KEMET CCT2524 High Current Clamp Sensor Specifications:
- Rated Current: 30-250A
- Applicable Current: 0.1-340A
- Output Voltage: 100-1250 mV depending on model
- Current Transformation Ratio: 2000 for C/CT-2524
- Output Protection: 75V
- Insulation Resistance: 100 MQ at 500 VDC
- Operating Temperature Range: -10°C to +60°C
- Storage Temperature Range: -20°C to +75°C
- Dimensions vary by model: C/CT-2524 approx. length 57.8mm, width 44.6mm
- RoHS compliant, Flame retardant case UL94V-0
Buy the KEMET Series C/CT High Current AC Clamp-On: CCT2524
Purchase the KEMET high current AC clamp-on sensor online today to ensure precise and reliable current measurement for industrial applications. This compact, easy-to-install device offers high accuracy, insulation resistance, and safety features such as UL94V-0 flame retardant casing. Ideal for EMS, power distribution, inverters, and industrial machinery, it supports applications requiring up to 250A with output voltages up to 1250 mV. Order now for fast delivery and optimized system performance.
Buy KEMET CCT2524 high current AC clamp-on sensor now and experience unmatched reliability and performance in industrial current measurement.
Frequently Asked Questions
Where can I buy KEMET CCT2524?
You can click on the BUY or RFQ button to purchase CCT2524 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part CCT2524?
You can download the CCT2524 datasheet or visit the KEMET website for support.
Who is the manufacturer of CCT2524?
KEMET
