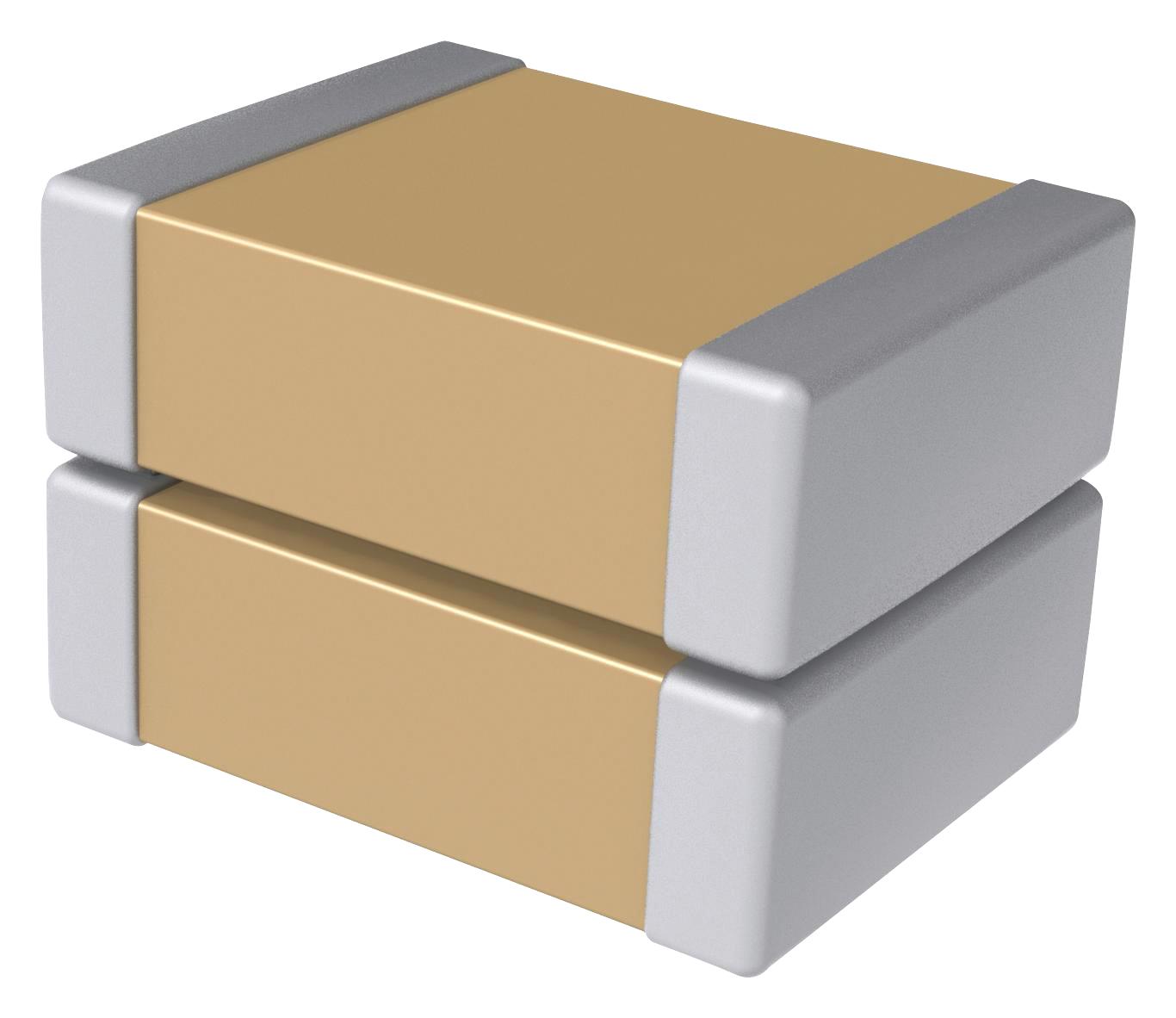

KEMET CKC33C444KCGLC7800 KONNEKT KC-LINK C0G Capacitor
The KEMET CKC33C444KCGLC7800 is a KONNEKT KC-LINK C0G multilayer ceramic capacitor specifically engineered for surface mount technology (SMT). This ultra-stable capacitor exhibits excellent performance characteristics, including a low dissipation factor and minimal capacitance change over temperature. It is suitable for a wide range of applications, such as power supplies, filtering, and decoupling in industrial and consumer electronics. The 2-chip standard orientation and robust construction ensure reliable operation in demanding environments. Its high voltage rating and low aging rate contribute to long-term stability and performance.
KEMET CKC33C444KCGLC7800 KONNEKT KC-LINK C0G Capacitor Specifications:
- Series: KONNEKT KC-LINK Comm C0G
- Style: KONNEKT
- Description: KC-LINK with KONNEKT, SMD, MLCC, Ultra-Stable, Class I
- Features: Ultra-Stable
- Termination: Tin
- AEC-Q200: No
- Component Weight: 2.2 g
- Chip Size: 3640
- MSL: 1
- Capacitance: 0.44 uF
- Measurement Condition: 1 kHz 1.0Vrms
- Capacitance Tolerance: 10%
- Voltage DC: 500 VDC
- Dielectric Withstanding Voltage: 750 VDC
- Temperature Range: -55/+150°C
- Temperature Coefficient: C0G
- Capacitance Change with Reference to +25°C and 0 VDC: 30 ppm/C, 1kHz 1.0Vrms
- Dissipation Factor: 0.1% 1 kHz 1.0Vrms
- Aging Rate: 0% Loss/Decade Hour
- Insulation Resistance: 2.273 GOhms
- L: 9.3mm +/-0.6mm
- W: 10.2mm +/-0.4mm
- T: 5.1mm +/-0.4mm
- B: 1.27mm +/-0.4mm
- Packaging: T&R, 180mm
- Packaging Quantity: 125
