KEMET EC212SNU Signal Relay
The NEC TOKIN EC2/EE2 series miniature signal relays are compact, slim, and RoHS compliant, ideal for electronic switching systems, PBX, and telephone applications. Featuring high insulation, surge capacity, and low power consumption (100-200 mW), these relays support various environments with specialized types like NKX for high breakdown voltage and ND for high insulation. They are certified by UL and CSA, with optional high solder joint reliability and high insulation type variants. The relays are available in tube and tape packaging, suitable for automated assembly, and possess robust electrical and mechanical characteristics for reliable switching in various electronic devices.
KEMET EC212SNU Signal Relay Specifications:
- Contact Form: 2 Form
- Contact Material: Silver alloy with gold overlay
- Maximum Switching Voltage: 125 VA
- Contact Ratings: 220 VDC, 250 VAC, 0.5 A resistive
- Initial Contact Resistance: 75 mΩ max.
- Operate Time: Approximately 2 ms
- Release Time: Approximately 1 ms
- Insulation Resistance: 1000 MΩ at 500 VDC
- Withstanding Voltage: Open contacts withstand 4000 VAC for 1 minute, high insulation types 1500 VDC for 1 min
- Coil Voltage Range: 3 VDC to 24 VDC depending on model
- Coil Resistance: 39.1Ω to 2880Ω depending on model
- Coil Power: 140-230 mW
- Coil Temperature Rise: 18°C at nominal voltage
- Resistance to shock: 980 m/s² (100 G)
- Vibration Resistance: 10-55 Hz, double amplitude 3-5 mm
- Operating Environment: -40°C to +85°C, humidity below 85% RH
- Storage Conditions: Use within 12 months in standard packaging
- Soldering Conditions (Reflow): Max. 260°C for 5 seconds, preheat at 110–120°C for 110 sec.
- Applications: Electronic switching, PBX, terminal equipment, telephone systems
- Certification: UL Recognized, CSA Certified, TUV compliant

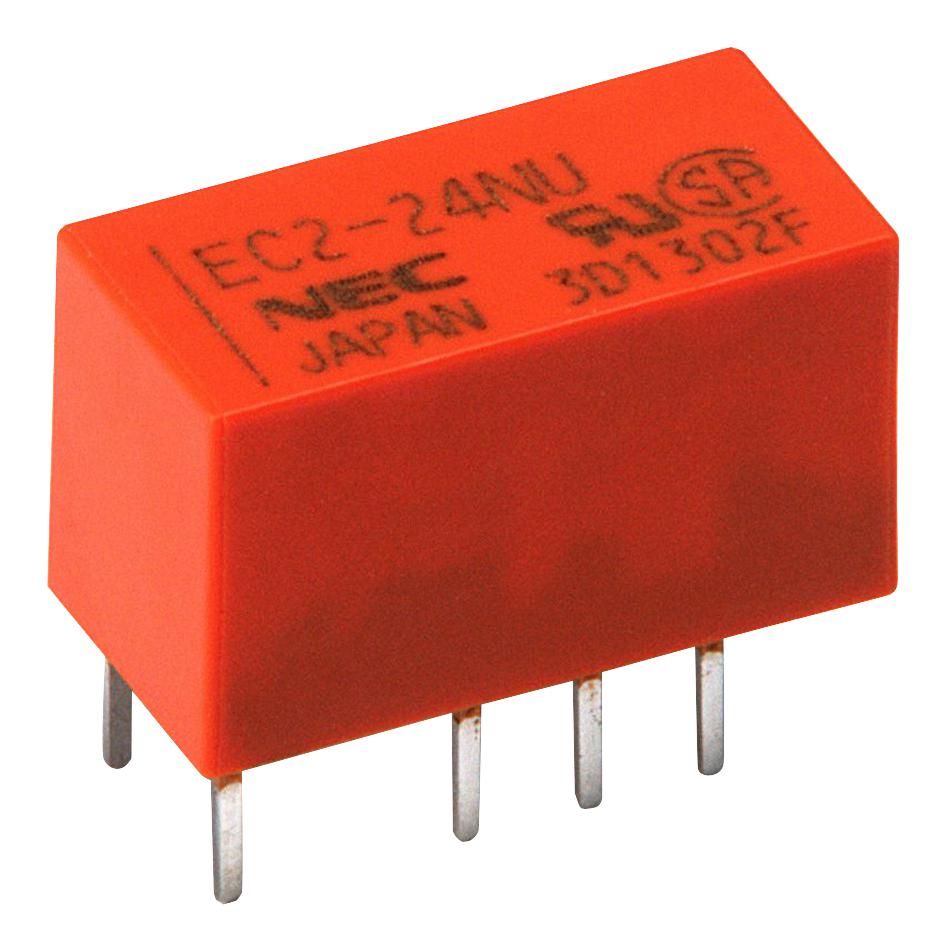

Buy the NEC Series EC2 Signal Relay: EC212SNU
Discover the reliable performance of the NEC Series EC2 signal relay, designed for electronic switching applications. Its compact size, high insulation, and low power consumption ensure optimal operation in PBX, terminal equipment, and communication systems. Certified by UL, CSA, and TUV, these relays support high surge capacity and feature various types including high insulation and high breakdown voltage variants. Available in tube and tape packaging, they are ideal for automated assembly and provide robust electrical and mechanical performance for demanding circuits. Buy online now for dependable circuit control.
Order your NEC Series EC2 EC212SNU relay today and enhance your electronic switching projects with dependable, RoHS compliant performance.
