KEMET EE212SNUHL Signal Relay
The product is a compact and slim miniature signal relay suitable for electronic switching systems, PBX, terminal equipment, and telephone systems. It features RoHS compliance, UL recognition, CSA certification, low power consumption of 100-200 mW, and high insulation types conforming to EN60950. Designed with various configurations such as non-latch, single coil latch, and double coil latch, it offers reliable operation with high breakdown voltage options up to 2.5 kV. Its dimensions, terminal types, and packaging options vary to suit different mounting and application needs.
KEMET EE212SNUHL Signal Relay Specifications:
- Contact Material: Silver alloy with gold overlay
- Maximum Switching Voltage: 250 VAC / 125 VDC
- Contact Ratings: 10mV DC, 10A resistive load
- Operate Time (Excluding bounce): approximately 2 ms
- Release Time (Excluding bounce): approximately 1 ms
- Insulation Resistance: 1000 MΩ at 500 VDC
- Between open contacts withstand voltage: 4000 VAC for 1 minute
- Between coil and contacts withstand voltage: 1500 VAC for 1 minute
- Shock Resistance: 980 m/s² (100 G)
- Vibration Resistance: 10-55 Hz, double amplitude 3-5 mm
- Coil Resistance (typical): 3 V: 64.3 Ω, 24 V: 2880 Ω
- Coil Power: 140-230 mW depending on type
- Coil Temperature Rise: 18°C at nominal coil voltage
- Ambient Temperature Range: -40°C to +85°C

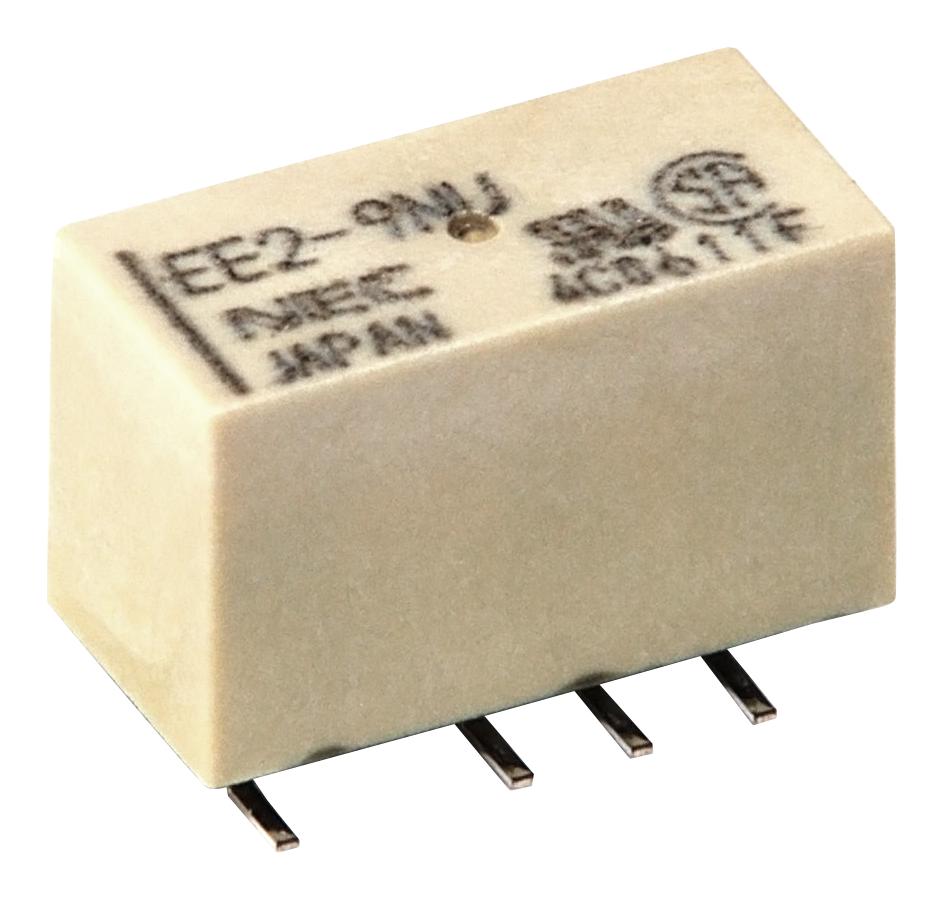

Buy the Buy NEC Signal Relay Part Number EE212SNUHL Online
Enhance your electronic switching and control systems with the NEC EE2 relay, offering high insulation, RoHS compliance, UL recognition, and diverse configurations including non-latch and latch types. This relay’s compact size, low power consumption, and high breakdown voltage up to 2.5 kV make it ideal for telecom, PBX, and terminal equipment. Available with various packaging options such as tube and tape, it guarantees reliable operation even in harsh environments. Purchase online now for fast delivery and dependable performance.
Order your NEC series EE2 relay with high insulation and low power consumption today and ensure reliable switching for your electronic systems.
Frequently Asked Questions
Where can I buy KEMET EE212SNUHL?
You can click on the BUY or RFQ button to purchase EE212SNUHL from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part EE212SNUHL?
You can download the EE212SNUHL datasheet or visit the KEMET website for support.
Who is the manufacturer of EE212SNUHL?
KEMET
