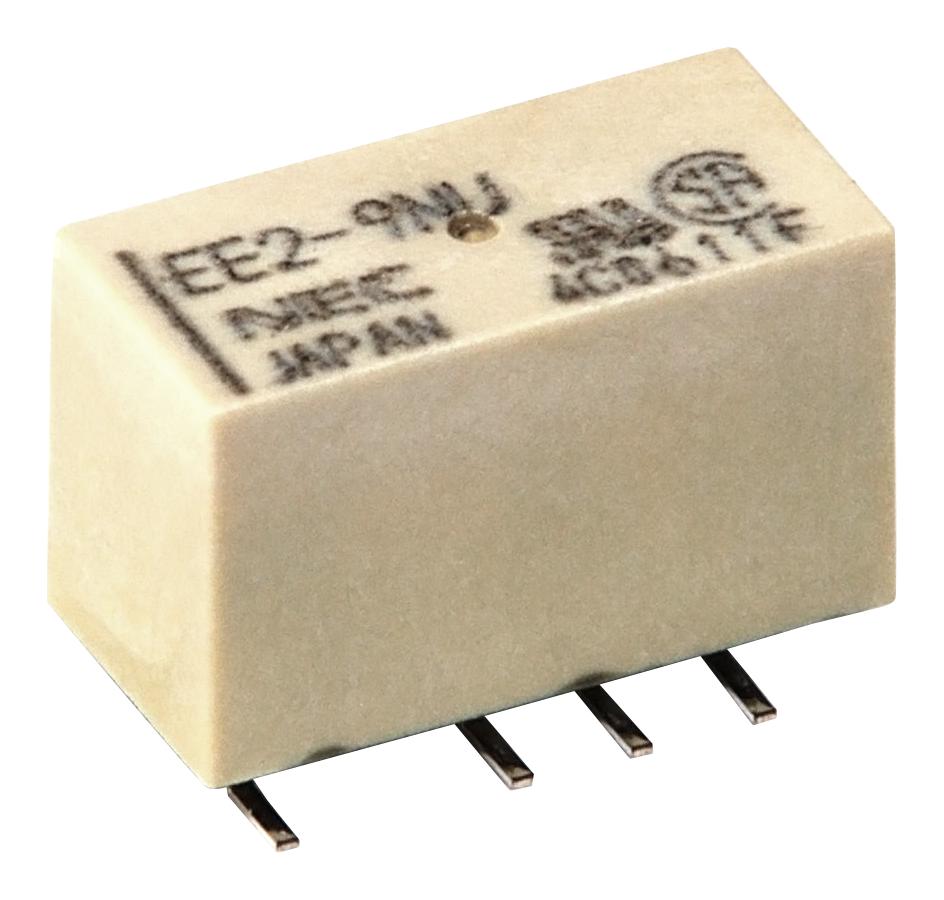

KEMET EE25SNUHL Miniature Signal Relay
The NEC TOKIN EC2/EE2 relay series features compact, slim, and lightweight miniature signal relays suitable for electronic switching systems, PBX, and terminal equipment. High insulation types, including NKX models, withstand high voltages up to 2.5kV surge, meeting UL and CSA standards. With low power consumption, these relays ensure reliable operation under various conditions. Designed for versatility, they are ideal for applications demanding high insulation, minimal footprint, and dependable switching performance, all complying RoHS standards and capable of withstanding demanding electrical and environmental conditions.
KEMET EE25SNUHL Miniature Signal Relay Specifications:
- Contact Form: 2 Form
- Contact Material: Silver alloy with gold overlay
- Maximum Switching Power: 125 VA
- Electrical Ratings: 220 VDC, 250 VAC
- Contact Resistance: 75 mΩ max. initial
- Operate Time: Approx. 2 ms
- Release Time: Approx. 1 ms
- Insulation Resistance: 1000 MΩ at 500 VDC
- Withstanding Voltage: Open contacts - 4000 VAC (for 1 min); Adjacent contacts - 1500 VAC (for 1 min)
- Coil Resistance: As per nominal voltage specified, e.g., 64.3 Ω at 3 VDC
- Coil Power Consumption: 140 mW typical
- Ambient Temperature Range: -40°C to +85°C
- Coil Temperature Rise: 18°C at nominal coil voltage
- Shock Resistance: 980 m/s² (100G)
- Vibration Resistance: 10-55Hz, double amplitude 5 mm
- Weight: Approx. 1.9 g
- Soldering Conditions: Reflow max 260°C for 5 sec, manual max 350°C for 3 sec
- Mounting: Through-hole and surface-mount options available
- RoHS Compliant, UL Recognized, CSA Certified
Buy the Buy NEC TOKIN Miniature Signal Relay Part Number EE25SNUHL Online
Purchase the NEC TOKIN EE25SNUHL relay online today to ensure reliable electronic switching with high insulation and surge resistance. Ideal for PBX, terminal equipment, and automated systems, this miniature relay offers low power consumption and high durability. Its compact design saves space while providing excellent electrical performance, including withstand voltage up to 2.5kV surge and UL, CSA recognition. Secure your supply of dependable relays online now for your demanding electronic applications, ensuring safety, efficiency, and long-lasting operation.
Get NEC TOKIN EE25SNUHL today—compact, high insulation relay built for reliable switching and long-lasting durability.
Frequently Asked Questions
Where can I buy KEMET EE25SNUHL?
You can click on the BUY or RFQ button to purchase EE25SNUHL from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part EE25SNUHL?
You can download the EE25SNUHL datasheet or visit the KEMET website for support.
Who is the manufacturer of EE25SNUHL?
KEMET
