KEMET F461KM224J160A Metallized Polypropylene Film Capacitor

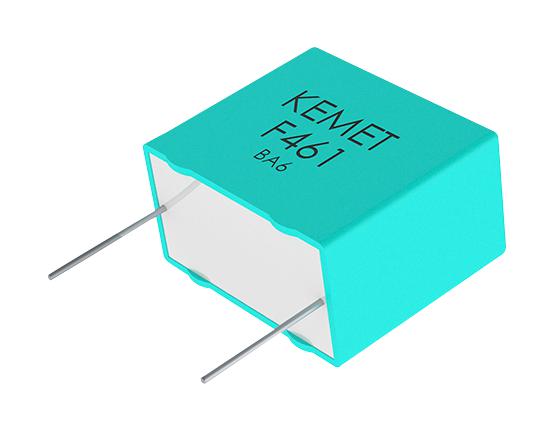

The KEMET F461KM224J160A is a metallized polypropylene film capacitor designed for general-purpose applications requiring high voltage and stability. Its radial lead configuration allows for easy integration into various circuit designs. The capacitor exhibits low dissipation factor and high insulation resistance, making it suitable for pulse applications and filtering. Rated for operation up to 85°C, it offers reliable performance across a wide temperature range. The rated voltage decreases 2%/°C between +85°C and +105°C.
KEMET F461KM224J160A Metallized Polypropylene Film Capacitor Specifications:
- Capacitance: 0.22 uF
- Capacitance Tolerance: 5%
- Voltage AC: 90 VAC
- Voltage DC: 160 VDC, 96 VDC (105C)
- Temperature Range: -55/+105°C
- Rated Temperature: 85°C
- Dissipation Factor: 0.05% 1kHz, 0.06% 10kHz
- Insulation Resistance: 100 GOhms
- Max dV/dt: 300 V/us
- Inductance: 6 nH
- Dielectric: Metallized Polypropylene
- Style: Radial
- Features: MKP, Pulse
- Lead: Wire Leads
- AEC-Q200: No
- Component Weight: 1.317 g
- Packaging: Bulk, Bag
- Packaging Quantity: 800
- Dimensions L: 10.5mm -0.5mm
- Dimensions H: 12mm -0.5mm
- Dimensions T: 6mm -0.5mm
- Dimensions S: 7.5mm +/-0.4mm
- Dimensions LL: 17mm +0/-1mm
- Dimensions F: 0.6mm +/-0.05mm
- Dimensions G: 0.5mm NOM
