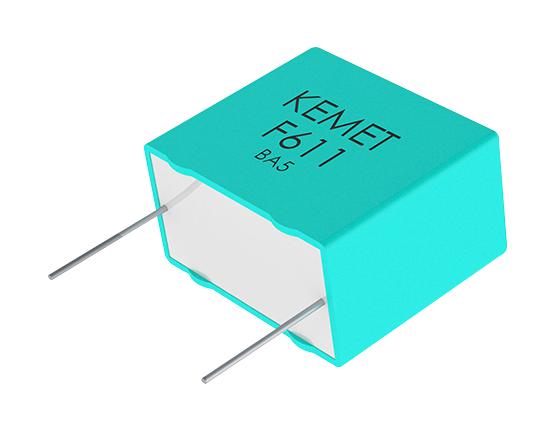

KEMET F611BY156K050A Filmed Polyester Capacitor
The F611BY156K050A is a metallized polyester film capacitor designed for general purpose applications. It offers a capacitance of 15 microfarads with a ±10% tolerance, rated voltage of 50VDC, and operates within a temperature range of -55°C to +105°C. Features include radial lead style, bulk packaging, insulation resistance of 333 MOhms, and dissipation factor of 1.2% at 1kHz. It is suitable for various circuits requiring stable performance, reliable insulation, and a compact design in electronic devices and automation systems.
KEMET F611BY156K050A Filmed Polyester Capacitor Specifications:
- Capacitance: 15 uF
- Capacitance Tolerance: 10%
- Rated Voltage DC: 50 VDC, 37.5 VDC at 105°C
- Voltage AC: 30 VAC
- Temperature Range: -55°C to +105°C
- Dimensions: Length 18mm ±0.5mm, Height 19mm ±0.5mm, Lead Spacing 15mm
- Insulation Resistance: 333 MOhms
- Dissipation Factor: 1.2% at 1kHz
- Max dV/dt: 3 V/μs
- Packaging: Bulk, Quantity: 400 units
- Inductance: 6nH
- Lead Style: Radial wire leads
- RoHS Compliant: Yes
- Operating Temperature: -55°C to +105°C
- Application Suitability: General purpose electronic circuits
Buy the Buy KEMET Capacitor Part Number F611BY156K050A Online
Purchase the KEMET F611BY156K050A film capacitor online today and benefit from high-quality construction, stable capacitance, and excellent insulation resistance. This 15 microfarad capacitor rated at 50VDC is ideal for general electronic applications, ensuring durability across a temperature range of -55°C to +105°C. Its radial leads and bulk packaging make installation straightforward, providing dependable performance for industrial, automation, and electronic circuit designs. Enhance your projects with this reliable, RoHS-compliant component available for quick online ordering.
Buy KEMET F611BY156K050A now and experience reliable performance with 15 microfarad capacitance, 50VDC rating, and robust insulation resistance for your electronic needs.
Frequently Asked Questions
Where can I buy KEMET F611BY156K050A?
You can click on the BUY or RFQ button to purchase F611BY156K050A from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part F611BY156K050A?
You can download the F611BY156K050A datasheet or visit the KEMET website for support.
Who is the manufacturer of F611BY156K050A?
KEMET
