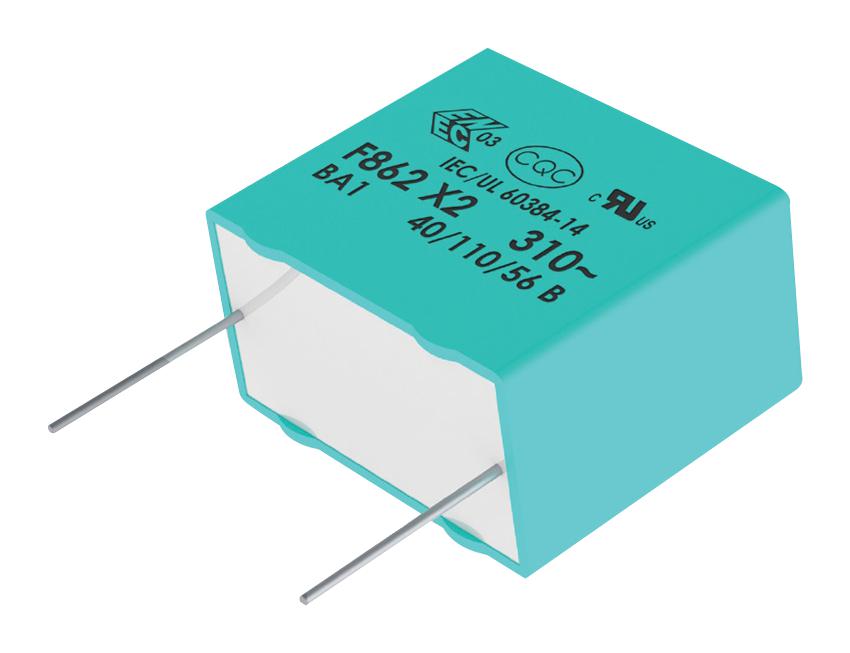

KEMET F862BP224K310ALR0L Automotive Film Capacitor
The F862BP224K310ALROL is a high-quality metallized polypropylene film capacitor designed for automotive safety and harsh environmental conditions. It features a capacitance of 0.22 microfarads with a 10% tolerance, rated for 310 VAC (X2) and 630 VDC, operating reliably within a temperature range of -40°C to +110°C. Suitable for EMI filtering and heavy-duty applications, this radial-style capacitor complies with RoHS, UL, GUL, CQC, and AEC-Q200 standards, ensuring durability and safety in demanding environments. Its robust construction with wire leads makes it ideal for automotive and industrial electronics.
KEMET F862BP224K310ALR0L Automotive Film Capacitor Specifications:
- Capacitance: 0.22 uF
- Capacitance Tolerance: 10%
- Voltage AC: 310 VAC (X2)
- Voltage DC: 630 VDC
- Temperature Range: -40°C to +110°C
- Rated Temperature: 110°C
- Dielectric: Metallized Polypropylene
- Style: Radial
- Lead Spacing: 15mm ±0.4mm
- Dimensions: Length 18mm -0.5mm, Height 14.5mm -0.5mm, Thickness 8.5mm -0.5mm
- Insulation Resistance: 30 GOhms
- Dissipation Factor: 0.3% at 1kHz
- Max dV/dt: 400 V/us
- RoHS Compliant: Yes
- Safety Class: X2
- Qualification: UL, GUL, CQC, AEC-Q200
- Environmental Resistance: Harsh conditions, heavy-duty
- Packaging: Bulk, Bag, Quantity: 650
- Weight: 3.291 g
Buy the KEMET F862BP224K310ALROL – Reliable Automotive Film Capacitor for Industrial Applications
Purchase the KEMET F862BP224K310ALROL automotive film capacitor online today—engineered for harsh environmental conditions and EMI filtering. This heavy-duty radial capacitor features a capacitance of 0.22 microfarads, rated for 310 VAC and 630 VDC, ideal for industrial and automotive applications. Its robust construction, operating within -40°C to +110°C, ensures excellent reliability and safety standards such as UL, GUL, CQC, and AEC-Q200. Order now for consistent quality, durability, and quick delivery to keep your projects running smoothly.
Get KEMET F862BP224K310ALROL today—built for precision, heavy-duty use, and long-lasting durability in demanding environments.
Frequently Asked Questions
Where can I buy KEMET F862BP224K310ALR0L?
You can click on the BUY or RFQ button to purchase F862BP224K310ALR0L from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part F862BP224K310ALR0L?
You can download the F862BP224K310ALR0L datasheet or visit the KEMET website for support.
Who is the manufacturer of F862BP224K310ALR0L?
KEMET
