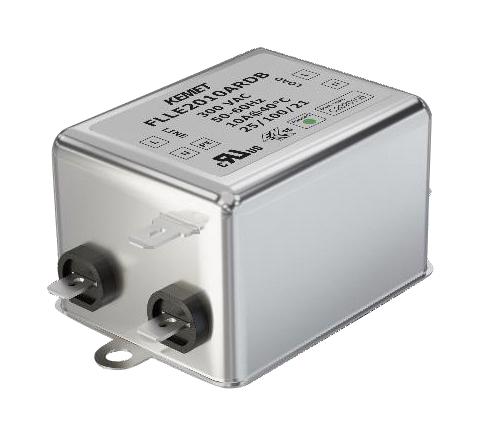

KEMET FLLE2010ARDB EMI Filter
The EMI Filter series offers a general purpose, single-phase design with high attenuation suitable for industrial and electronic applications. Features include a metal case filled with self-extinguishing resin for fire safety, fast-on or screw terminals for quick installation, and options with flexible wire connections. Medical versions are available without Y-capacitors to prevent leakage current, ensuring safety in sensitive healthcare environments. Rated for 300 VAC/VDC, with a temperature range of -25°C to 100°C, it effectively suppresses electromagnetic interference, making it ideal for sensitive electronic equipment working within industrial, medical, and communication sectors.
KEMET FLLE2010ARDB EMI Filter Specifications:
- Rated Voltage: 300 VAC/VDC
- Rated Frequency: 50 - 60 Hz
- Rated Current: 1-32A
- Temperature Range: -25°C to 100°C
- Climate Category: 25/100/21
- Housing: Metal case filled with self-extinguishing resin
- Terminals: Fast-on or screw terminals, optional flexible wire connections
- Certification: Pending IEC/EN 60939-3, UL-Demko, ANSI/UL 60939-3-2016
- Physical Dimensions: Length varies from 51 mm to 130.5 mm, Width from 45 mm to 56.5 mm, Height from 28 mm to 48.5 mm
- Weight: Ranges from 63 g to 475 g depending on model
- Material: Metal case, self-extinguishing resin filled
- Leakage Current: None in medical versions without Y-capacitors
- Attenuation: Up to 90 dB at specific frequencies in differential and common mode
- Electrical Characteristics: Includes capacitance, inductance, and resistance specifications per model
Buy the KEMET 2010ARDB – Reliable EMI Filter for Industrial Applications
Secure your electronic devices from EMI with our reliable KEMET Series2010ARDB filter, designed for high performance in industrial, medical, and communication systems. Featuring a rugged metal case, flexible terminal options, and certification pending for safety standards, this filter effectively mitigates electromagnetic noise. Easy to install with quick connect terminals, it ensures consistent performance across a wide temperature range of -25°C to 100°C. Protect your sensitive equipment—order online now for fast delivery and peace of mind in your electronic projects.
Order your KEMET Series2010ARDB EMI filter today and ensure your electronic equipment is protected against electromagnetic interference with dependable filtering performance.
Frequently Asked Questions
Where can I buy KEMET FLLE2010ARDB?
You can click on the BUY or RFQ button to purchase FLLE2010ARDB from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part FLLE2010ARDB?
You can download the FLLE2010ARDB datasheet or visit the KEMET website for support.
Who is the manufacturer of FLLE2010ARDB?
KEMET
