KEMET FPL15010010BH1T Ferrite Tiles
KEMET's FPL Series WPT Ferrite Tiles are high-efficiency magnetic components designed for wireless power transfer systems ranging from 3.7 to 30.0 kW. Made with proprietary ferrite material technology, these tiles operate effectively up to 1 MHz within a temperature range of -40°C to +125°C, ensuring low temperature rise and high magnetic flux density. They are ideal for automotive, industrial, and wireless charging applications, providing enhanced system efficiency. The tiles are ROHS and REACH compliant, with various sizes available, and are qualified under AEC-Q200 for durability and reliability.
KEMET FPL15010010BH1T Ferrite Tiles Specifications:
- Operating frequency: up to 1 MHz
- Power range: 3.7 - 30.0 kW
- Temperature range: -40°C to +125°C
- Material: Proprietary ferrite
- Core loss: 200 mT at 100°C, 330 KW/m3
- Impact resistance: Handle carefully as impact may cause breakage
- Permeability: 3,000 @ 23°C
- Density: 4,900 kg/m3
- Magnetic flux density: Effective saturation flux density 1,200 A/m
- Dimensions: Various sizes available, e.g., 100x100 mm, 152x102 mm, 242x62 mm
- Compliance: RoHS and REACH
- Temperature coefficient: Curie temperature 220°C
- Auxiliary: Built-in magnetic shielding options available

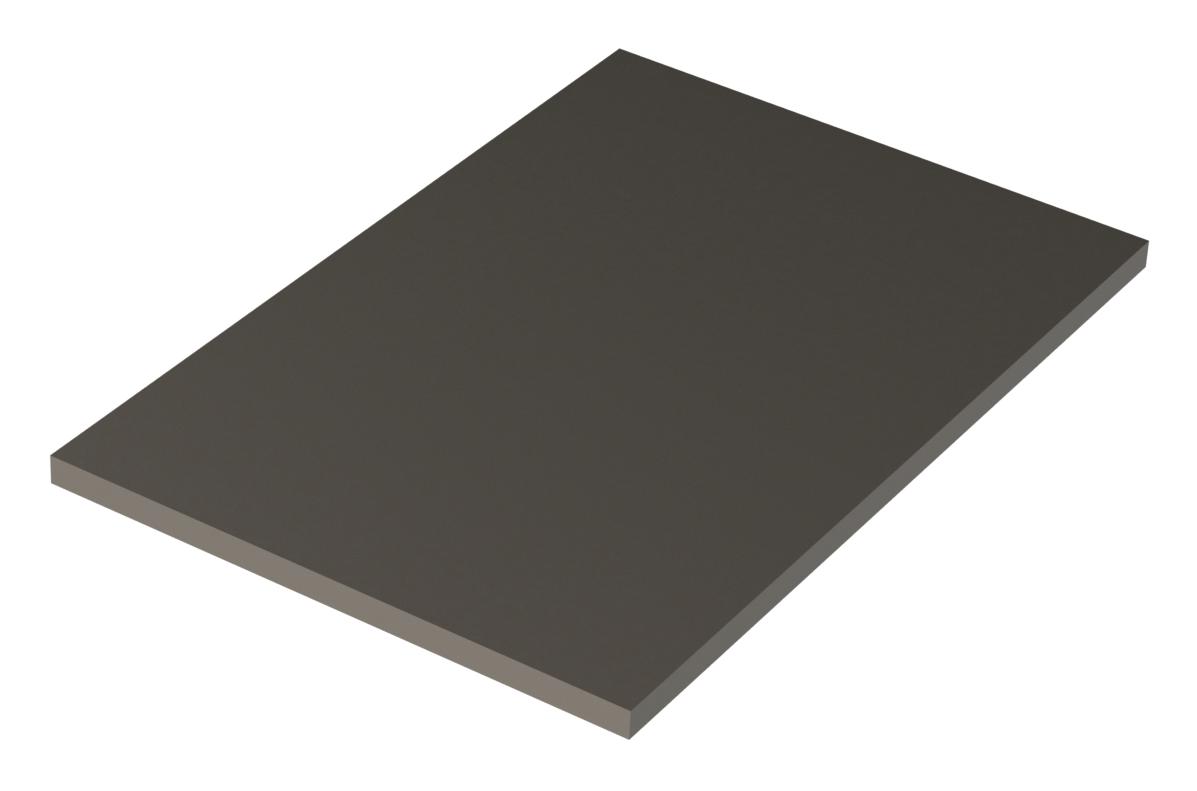

Buy the Buy KEMET WPT Ferrite Tiles Part Number FPL15010010BH1T Online
Purchase the KEMET FPL15010010BH1T ferrite tile online today to ensure reliable and high-performance magnetic shielding for wireless power transfer systems. Ideal for industrial, automotive, and wireless charging applications, these tiles operate efficiently up to 1 MHz within a temperature range of -40°C to +125°C, providing low temperature rise and high magnetic flux density. Their robust design is ROHS and REACH compliant, with sizes suitable for various system requirements, delivering superior efficiency and durability for demanding applications.
Order your KEMET FPL15010010BH1T ferrite tile today and elevate your wireless charging projects with efficient, proven magnetic solutions.
Frequently Asked Questions
Where can I buy KEMET FPL15010010BH1T?
You can click on the BUY or RFQ button to purchase FPL15010010BH1T from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part FPL15010010BH1T?
You can download the FPL15010010BH1T datasheet or visit the KEMET website for support.
Who is the manufacturer of FPL15010010BH1T?
KEMET
