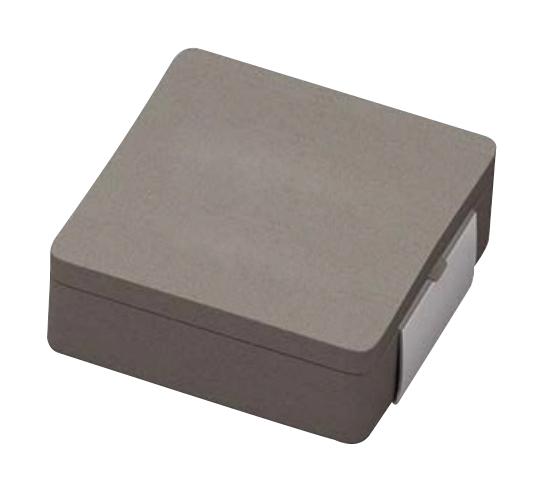

KEMET MPX1D1740L150 Power Inductor
The KEMET MPX Power Surface Mount Inductor is a high-quality, compact inductor designed for efficient power management in electronic circuits. With a 15uH inductance, it features a composite core for reliable performance, and a shielded design for minimal electromagnetic interference. The inductor is RoHS compliant and ideal for use in switching power supplies, RF applications, and high-frequency circuits. Its robust construction supports operation from -55°C to +155°C, with a self-resonant frequency of 6 MHz, ensuring stability and dependability in demanding environments.
KEMET MPX1D1740L150 Power Inductor Specifications:
- Inductance: 15 uH
- Inductance Tolerance: 20%
- Dimensions: 17mm (L) +/-0.5mm, Ww 171mm +/-0.5mm, T 4mm MAX
- Core: Composite
- Shielded: Yes
- Temperature Range: -55°C to +155°C
- DC Resistance: 35.2mOhms
- Self-Resonant Frequency: 6 MHz
- Current Rating: 7.5 A (Itms, 40°C Rise), 9 A (Isat, 20% Drop in Inductance), 11 A (Nom, 30% Drop in Inductance), 13 A (Isat, 30% Drop in Inductance)
- RoHS Compliant: Yes
- Packaging: T&R, 330mm
- Packaging Quantity: 100
Buy the Buy KEMET Power Surface Mount Inductor Part Number MPX1D1740L150 Online
Enhance your electronic designs with the high-performance KEMET Power Inductor MPX1D1740L150. Featuring a 15uH inductance with 20% tolerance, this shielded surface mount inductor is ideal for switching power supplies and RF applications. Operating from -55°C to +155°C, it provides excellent thermal stability and high current ratings up to 13A. Compact and RoHS compliant, it ensures reliable performance in demanding environments. Purchase this durable power inductor online today and provide your circuits with quality and dependability.
Order your KEMET Series MPX Power Inductor MPX1D1740L150 today and enhance your electronic projects with reliable power management components.
Frequently Asked Questions
Where can I buy KEMET MPX1D1740L150?
You can click on the BUY or RFQ button to purchase MPX1D1740L150 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part MPX1D1740L150?
You can download the MPX1D1740L150 datasheet or visit the KEMET website for support.
Who is the manufacturer of MPX1D1740L150?
KEMET
