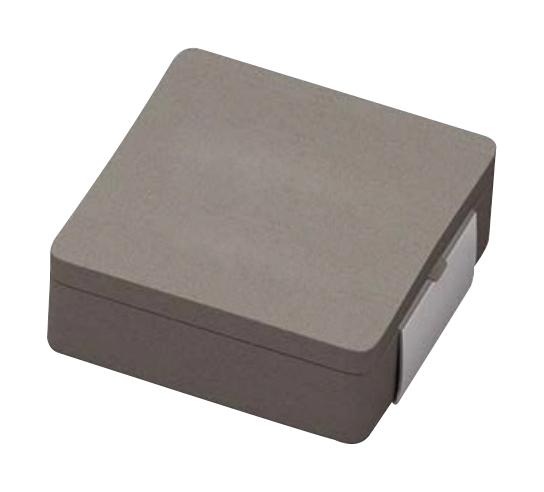

KEMET MPX1D1740L220 Power Inductor
The KEMET MPX power inductor features a surface mount design with a 22 uH inductance, a 20% tolerance, and a composite core. It operates within a temperature range of -55°C to +155°C and has a shielded construction for reduced electromagnetic interference. With a compact chip size of 17mm by 6.5mm, it provides a maximum heat rise of 40K. The inductor offers a low DC resistance of 46.4mΩ, with a self-resonant frequency of 5 MHz, making it suitable for high-frequency power applications and efficient energy transfer.
KEMET MPX1D1740L220 Power Inductor Specifications:
- Inductance: 22 uH
- Inductance Tolerance: 20%
- Dimensions: Length 17mm ±0.5mm, Width 6.5mm ±0.5mm
- Core: Composite
- Temperature Range: -55°C to +155°C
- Shielded: Yes
- Self-Resonant Frequency: 5 MHz
- DC Resistance: 46.4mΩ
- Maximum Temperature Rise: 40K
- Current Ratings: 6.5 A (Irms, 40°C rise), 7 A (Isat, 20% drop), 10 A (Isat, 30% drop in inductance)
- Packaging: T&R, 330mm, 100 pieces per reel
Buy the KEMET Series MPX Power Inductor: MPX1D1740L220
Discover the KEMET MPX power inductor, engineered for high-frequency applications with a 22 uH inductance, shielded design, and a compact footprint. Its composite core ensures stable operation across a wide temperature range of -55°C to +155°C, making it ideal for power supplies and energy management systems. With a low DC resistance of 46.4mΩ and a self-resonant frequency of 5 MHz, this inductor provides excellent efficiency, durability, and thermal stability. Available online now, it’s perfect for demanding electronic projects requiring reliable performance and easy integration.
Buy KEMET MPX1D1740L220 power inductor now and experience unmatched reliability and high-frequency performance in your electronic circuits.
Frequently Asked Questions
Where can I buy KEMET MPX1D1740L220?
You can click on the BUY or RFQ button to purchase MPX1D1740L220 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part MPX1D1740L220?
You can download the MPX1D1740L220 datasheet or visit the KEMET website for support.
Who is the manufacturer of MPX1D1740L220?
KEMET
