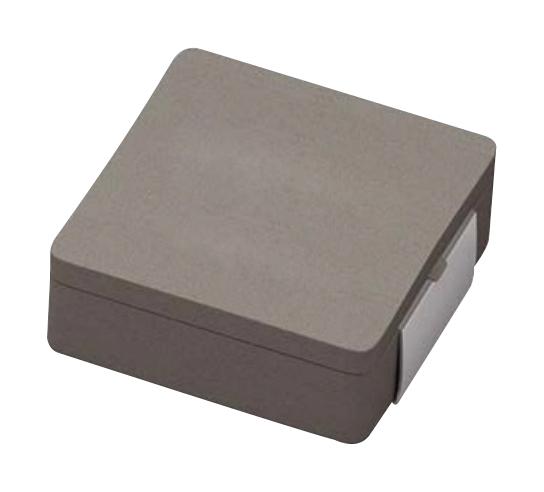

KEMET MPX1D1740L3R3 Power Inductor
The KEMET MPX Power Surface Mount Inductor is a compact, high-performance component designed for demanding electronic applications. With a 3.3 μH inductance and a tolerance of 20%, it features a composite core for reliability and efficiency. The inductor supports a temperature range from -55°C to +155°C and has a shielded design for reduced electromagnetic interference. Its low DC resistance of 8.1 mOhms ensures minimal power loss, making it ideal for power modules, driven circuits, and high-frequency applications requiring stable inductance and high current handling.
KEMET MPX1D1740L3R3 Power Inductor Specifications:
- Inductance: 3.3 μH
- Inductance Tolerance: 20%
- Dimensions: Length 17mm +/-0.5mm, Width 17.1mm +/-0.5mm, Height 4mm MAX
- Core: Composite
- Shielded: Yes
- Temperature Range: -55°C to +155°C
- Self-Resonant Frequency: 14 MHz
- DC Resistance: 8.1 mOhms
- Maximum Current: 16.5A (Irms), 18A (Isat), 27.5A (Lsat)
- RoHS Compliant
- Packaging: T&R, 330mm, Quantity: 100
Buy the KEMET Series MPX Power Inductor 3.3μH: MPX1D1740L3R3
Ensure optimal performance and durability in your electronic projects by purchasing the KEMET MPX Power Inductor online. Designed with a 3.3 μH inductance and a composite core, this surface mount component offers high current capacity, low resistance, and excellent thermal stability. Its shielded design reduces electromagnetic interference, making it ideal for power modules, RF circuits, and demanding industrial applications. Order now to benefit from fast delivery, RoHS compliance, and the trusted quality that KEMET provides for your critical electronic needs.
Buy KEMET MPX power inductor now and experience unmatched reliability and performance in demanding electronic circuits.
Frequently Asked Questions
Where can I buy KEMET MPX1D1740L3R3?
You can click on the BUY or RFQ button to purchase MPX1D1740L3R3 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part MPX1D1740L3R3?
You can download the MPX1D1740L3R3 datasheet or visit the KEMET website for support.
Who is the manufacturer of MPX1D1740L3R3?
KEMET
