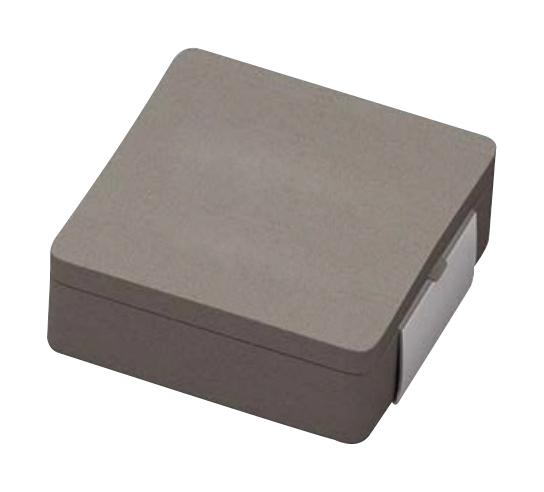

KEMET MPX1D1740LR68 Power Inductor
The surface mount inductor from the KEMET MPX series is designed for high-performance power applications. Featuring a 0.68 uH inductance with 20% tolerance, it operates over a temperature range of -55°C to +155°C. This composite core inductor is shielded, with dimensions of approximately 17mm in length and 21mm in width, and a maximum height of 4mm. It offers low DC resistance of 2mOhms, a self-resonant frequency of 38 MHz, and high current capacity with IRMS up to 32A. RoHS compliant, it is suitable for demanding electronic circuits.
KEMET MPX1D1740LR68 Power Inductor Specifications:
- Inductance: 0.68uH
- Inductance Tolerance: 20%
- Dimensions: Length 17mm +/-0.5mm, Width 21mm NOM, Max Height 4mm
- Temperature Range: -55°C to +155°C
- DC Resistance: 2mOhms
- Self-Resonant Frequency: 38 MHz
- Shielded: Yes
- Core Material: Composite
- Maximum Power Temperature Rise: 40K
- Current Ratings: 32A (Irms), 37A (Isat at 20% Drop), 55A (Isat at 30% Drop)
- RoHS compliant
- Packaging: T&R, 330mm reel, Quantity: 100
Buy the KEMET Series MPX Power Inductor: MPX1D1740LR68
Secure your KEMET Series MPX power inductor today and benefit from top-tier performance in power supply circuits. This 0.68 uH inductor features 20% tolerance, low 2mOhm resistance, and a high self-resonant frequency of 38 MHz. With a compact size of approximately 17mm by 21mm and shielded construction, it supports high current levels up to 55A. The RoHS-compliant design is ideal for demanding electronic applications, ensuring durability and efficiency in your projects. Buy online now for fast delivery and reliable operation.
Order your KEMET Series MPX1D1740LR68 high-current power inductor today and enhance your power circuit reliability with high-quality, shielded inductors.
Frequently Asked Questions
Where can I buy KEMET MPX1D1740LR68?
You can click on the BUY or RFQ button to purchase MPX1D1740LR68 from an authorized KEMET distributor.
How do I troubleshoot issues or seek technical support for part MPX1D1740LR68?
You can download the MPX1D1740LR68 datasheet or visit the KEMET website for support.
Who is the manufacturer of MPX1D1740LR68?
KEMET
